Code P0420: Catalyst System Efficiency Below Threshold

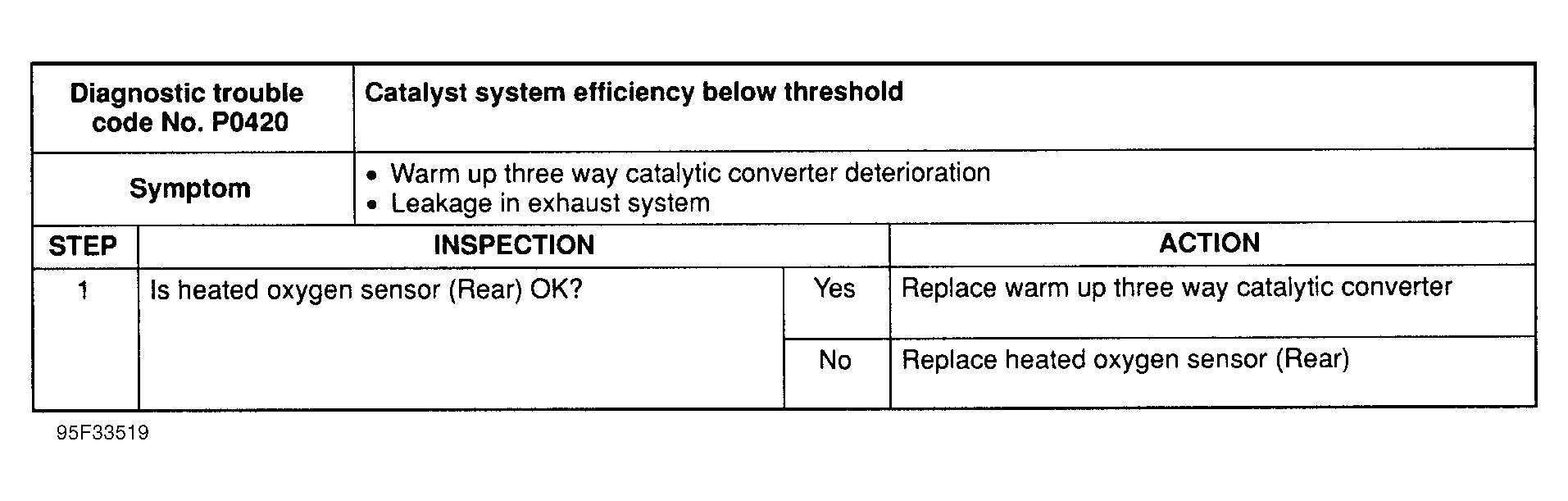

Fig 1: Trouble Code No. P0420 Catalyst System Efficiency Below Threshold
