Code P0134: Oxygen Sensor Circuit No Activity Detected

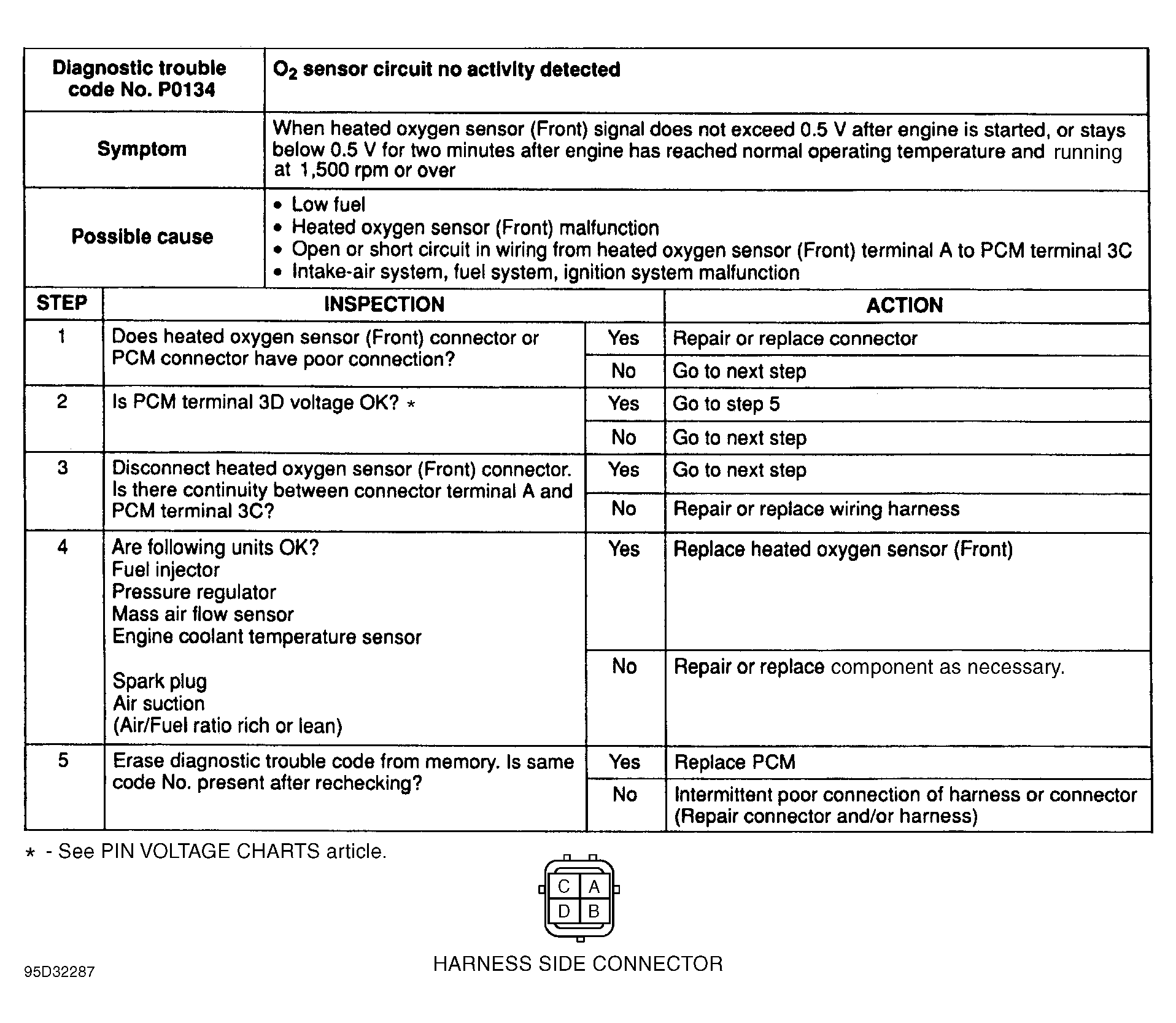

Fig 1: Trouble Code No. P0134 Oxygen Sensor Circuit No Activity Detected
