RX7 2RTR-1308cc 80
>>
Repair and Diagnosis
>>
Specifications
>>
Electrical Specifications
>>
Engine Control Module
>>
Terminals 2K-3H
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Terminals 2K-3H

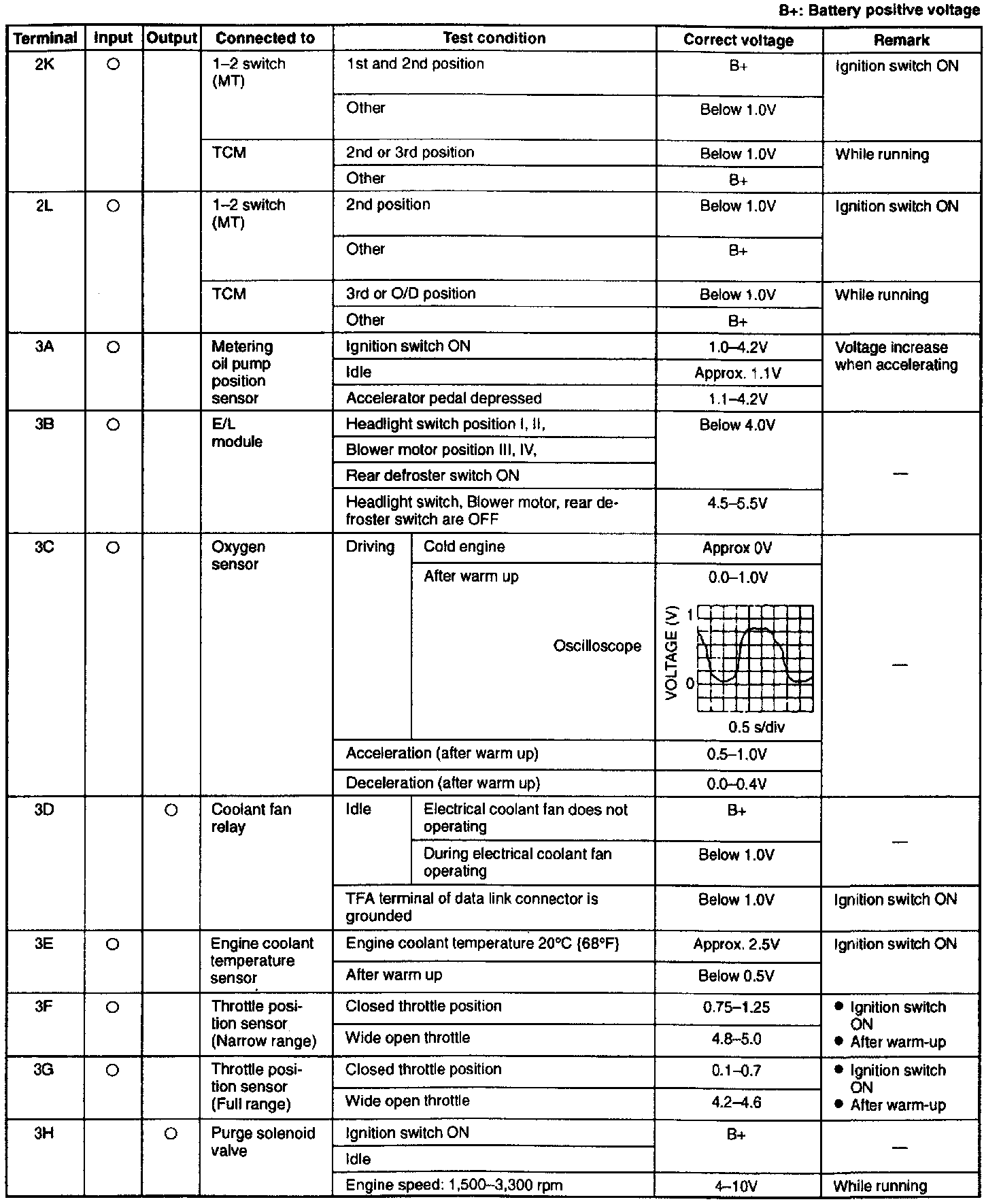

Terminal Voltage Charts:
