With M/T

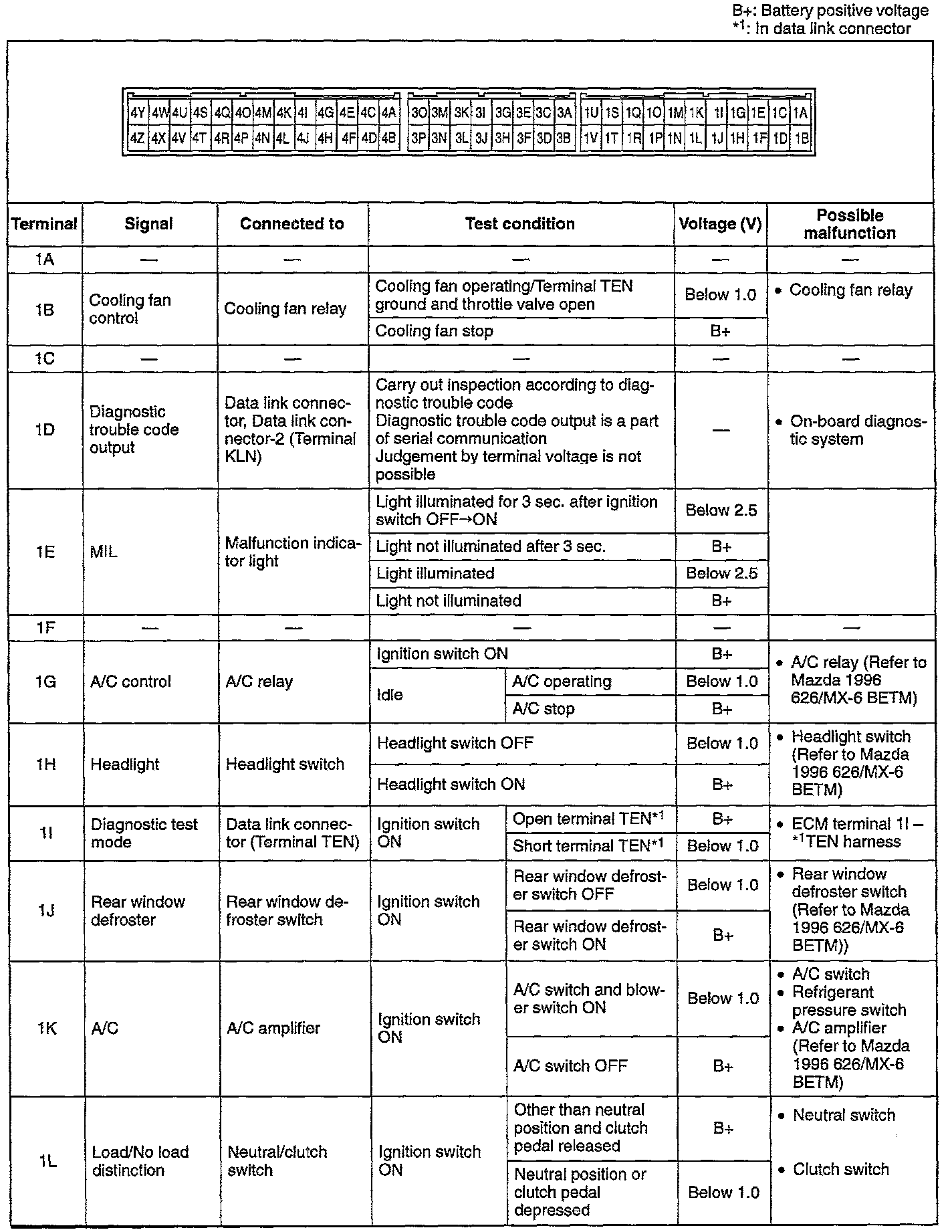

ECM Pinout Part 1 Of 4:

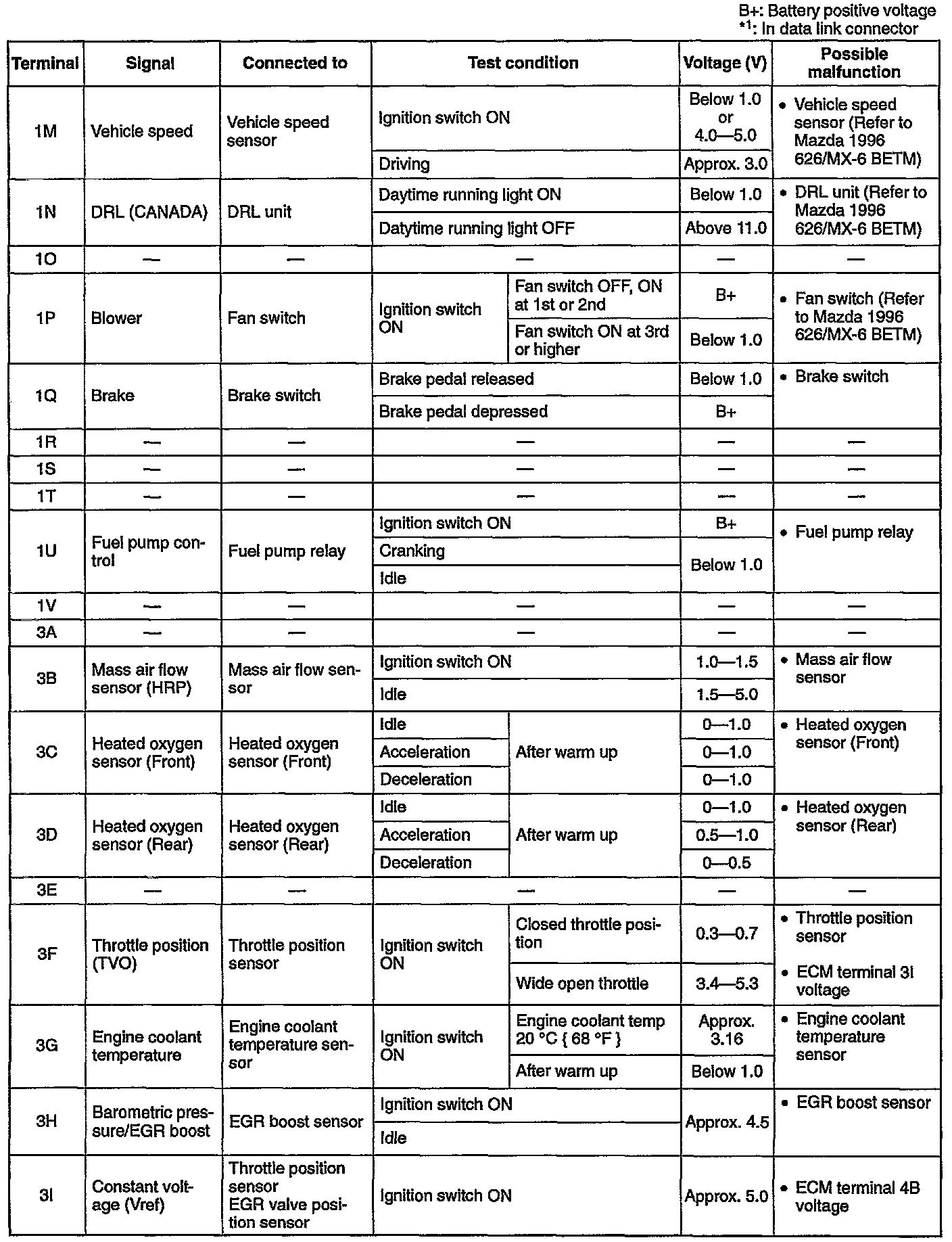

ECM Pinout Part 2 Of 4:

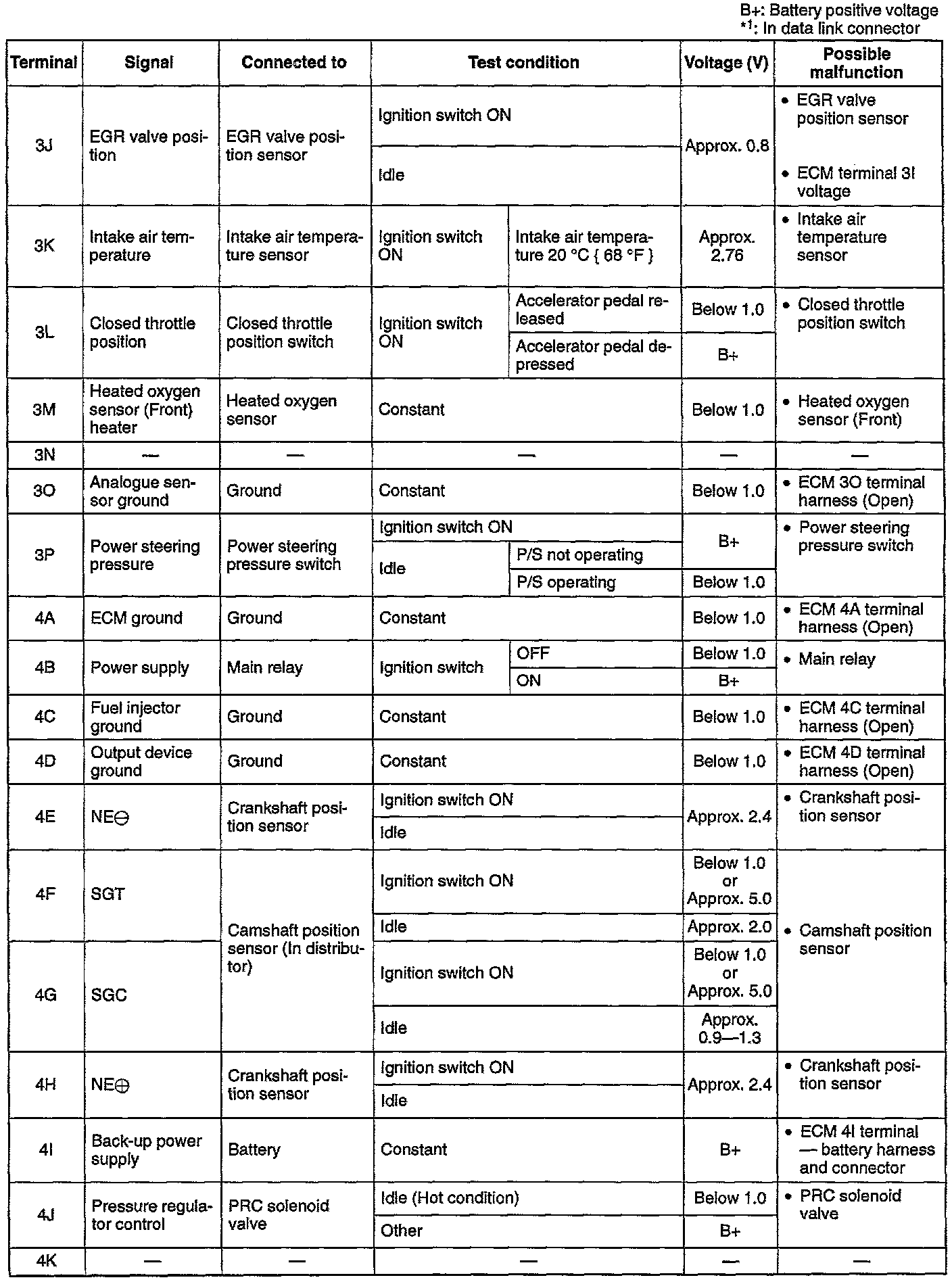

ECM Pinout Part 3 Of 4:

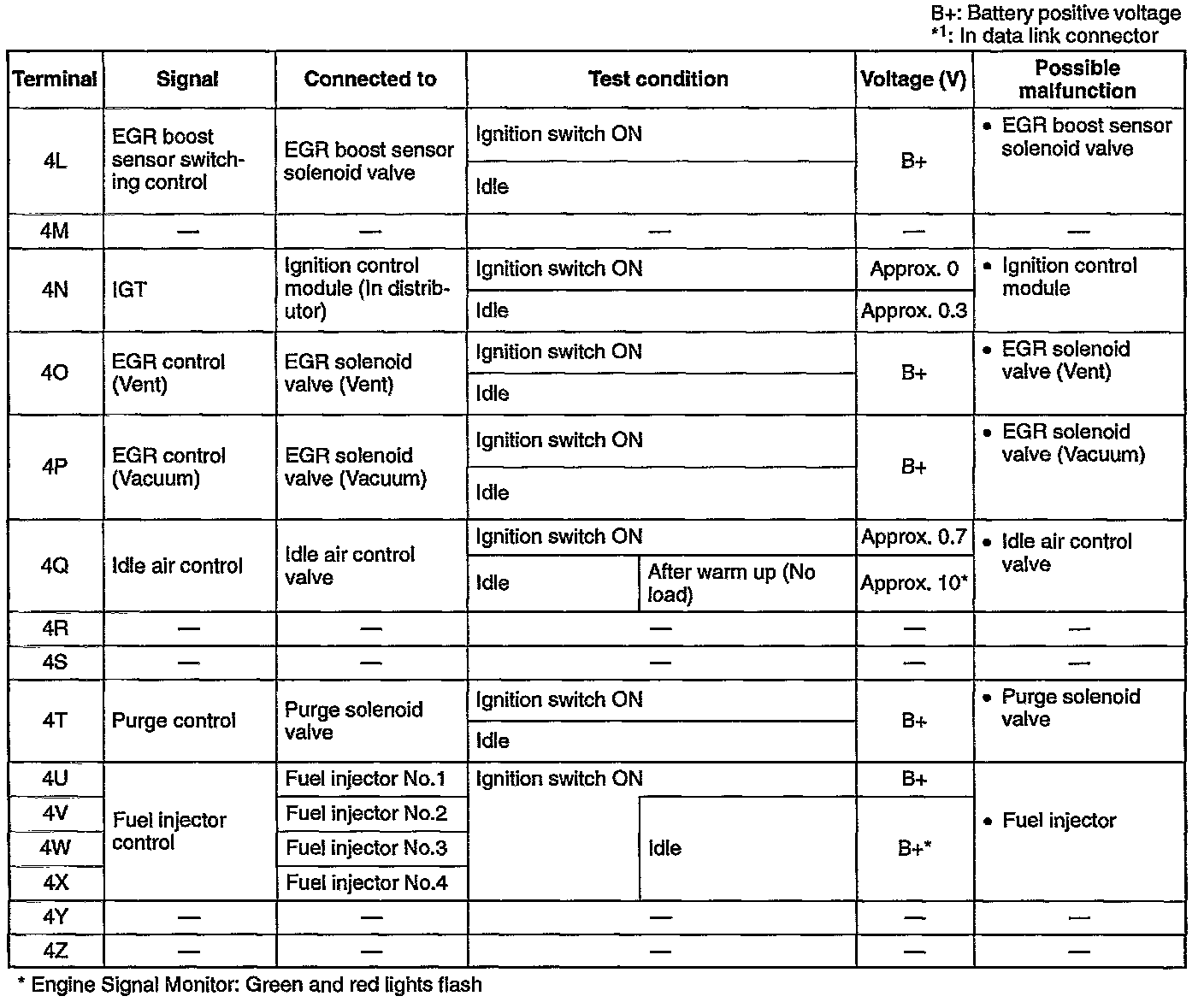

ECM Pinout Part 4 Of 4:
