DTC P1390: Octane Adjust Circuit Malfunction

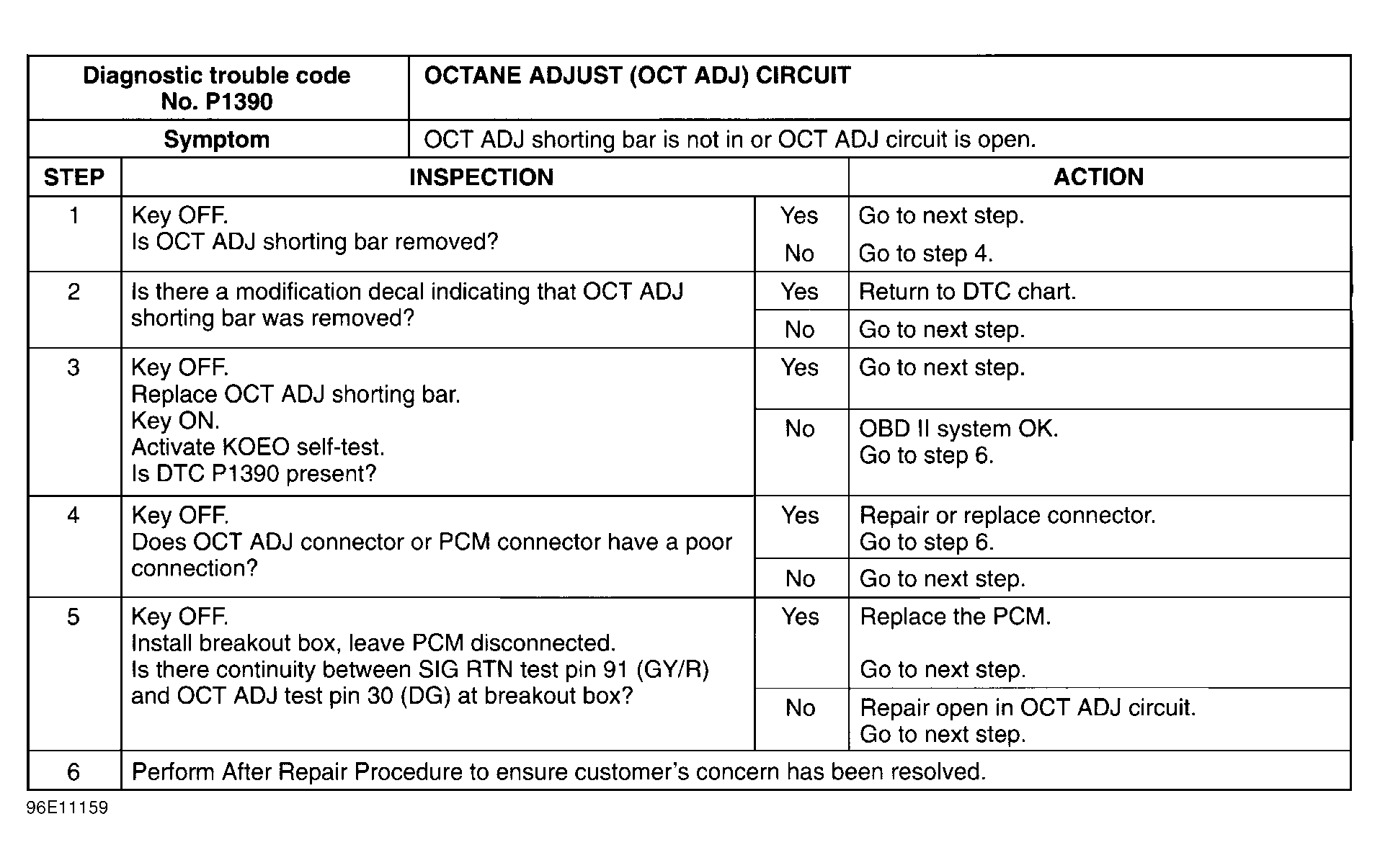

Fig 1: DTC P1390 Octane Adjust CIRCUIT Malfunction
G96E11159
Fig 2: Octane Adjust (OCT ADJ) CIRCUIT Diagram
G95C34662
