No-Load Test

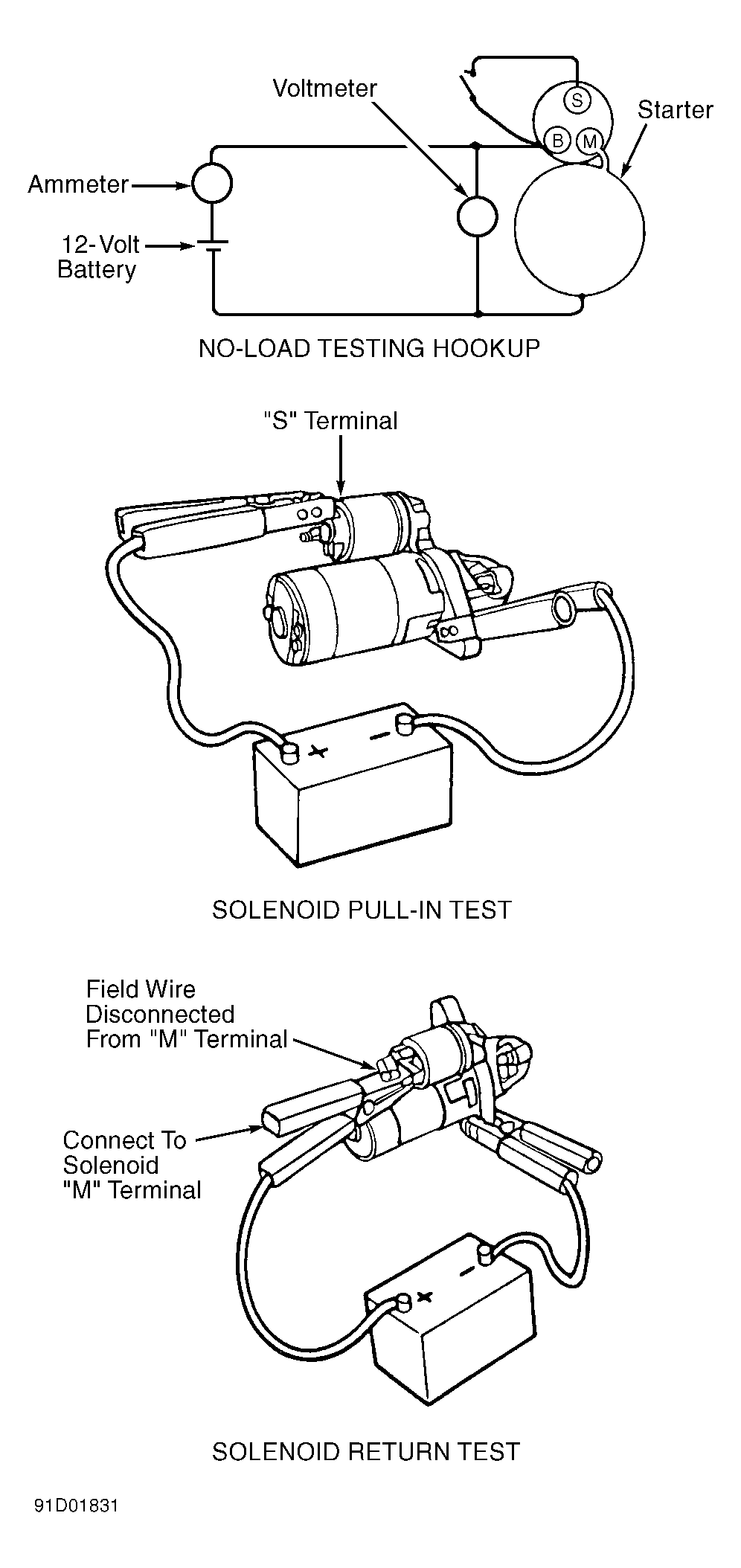

Connect fully-charged 12-volt battery, voltmeter and ammeter to starter. See Figure . Using remote starter wires or jumper, engage solenoid. Starter should spin smoothly. Compare readings with specifications. See NO-LOAD TEST SPECIFICATIONS TABLE . If voltage is less than specified, amperage is more than specified or shaft speed is less than specified, disassemble and inspect starter components.
NO-LOAD TEST SPECIFICATIONS
| Application | Specification | |
|---|---|---|
| 4-Cyl. | ||
| Voltage (Minimum) | 11.0 | |
| Amperage (Maximum) | 90 | |
| Shaft Speed (Minimum RPM) | 2800 | |
| V6 | ||
| Voltage (Minimum) | 11.0 | |
| Amperage (Maximum) | 90 | |
| Shaft Speed (Minimum RPM) | 3600 | |
