Throttle Position (TP) Sensor Continuity: Inspection

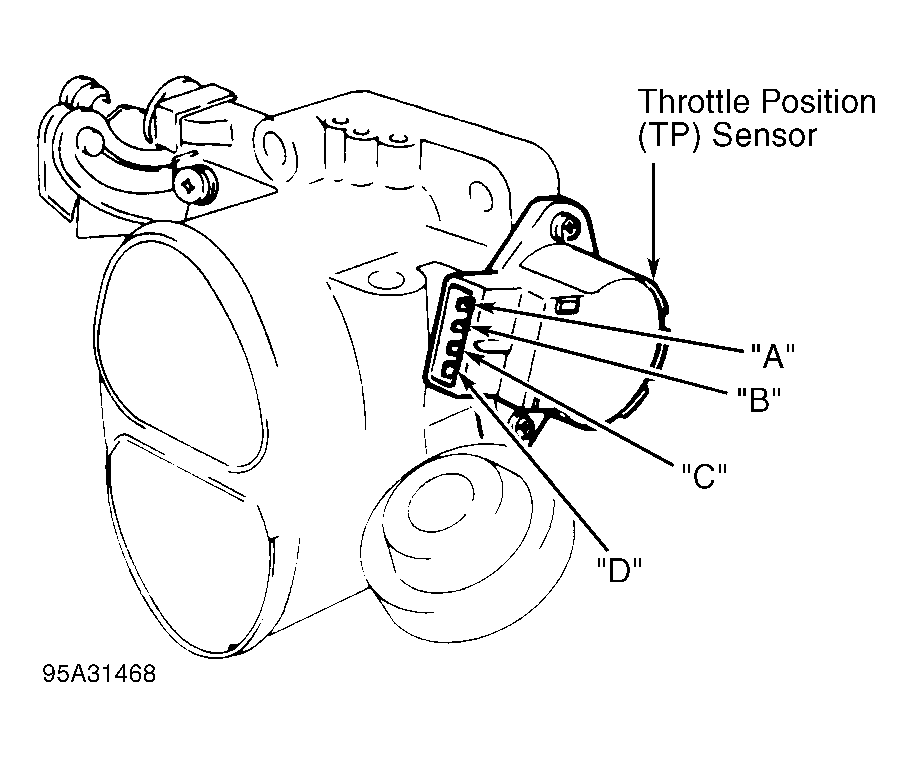

- Turn ignition switch to OFF position and place throttle valve in closed throttle position. Disconnect TP sensor connector. Connect ohmmeter between terminals "C" and "D" of TP sensor connector. See Figure . Continuity should exist. If continuity exists, go to next step. If continuity does not exist, adjust TP sensor.
- Insert a feeler gauge of specified thickness between throttle lever & throttle stop screw. See TP SENSOR CONTINUITY TABLE . Connect ohmmeter between terminals "C" and "D" of TP sensor connector. See Figure . If continuity is not as specified, adjust TP sensor.
