DTC P0112: Continuous (IAT Sensor CKT Low Input)

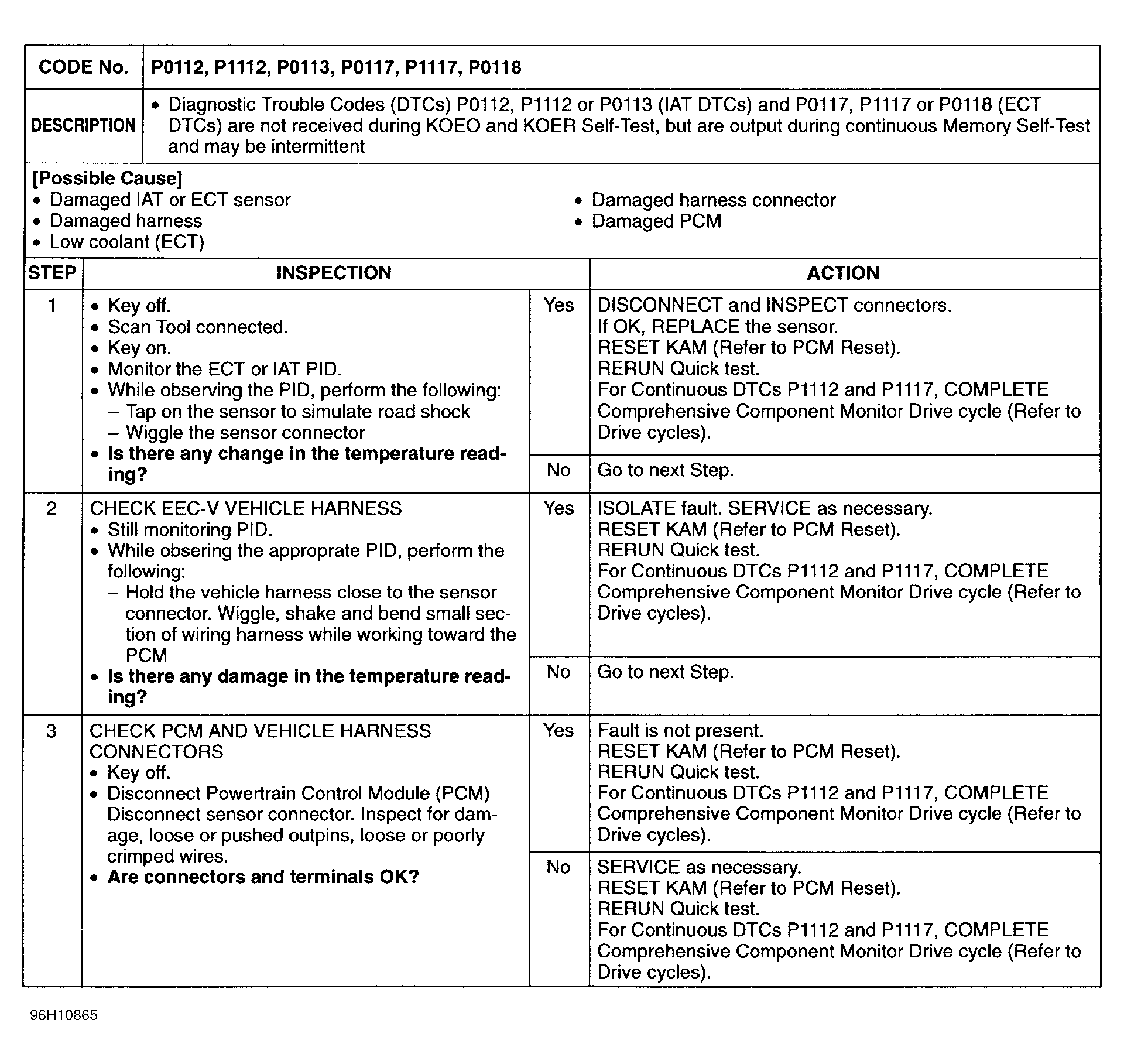

Fig 1: DTC P0112, P0113, P0117, P0118, P1112, & P1117
