DTC P0420: Catalyst System Efficiency Below Threshold

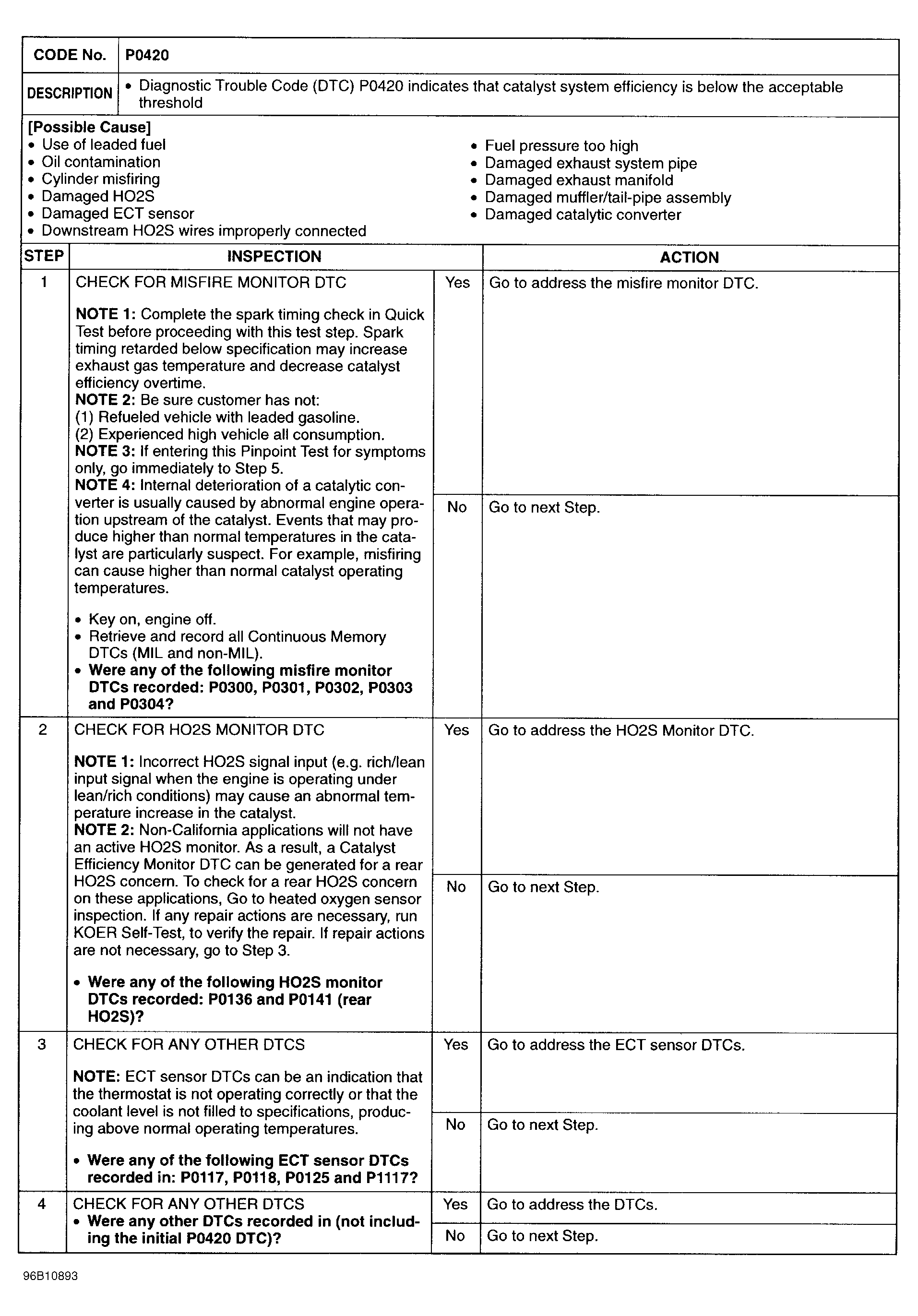

Fig 1: DTC P0420 (1 Of 4)
G96B10893
Fig 2: DTC P0420 (2 Of 4)
G96C10894

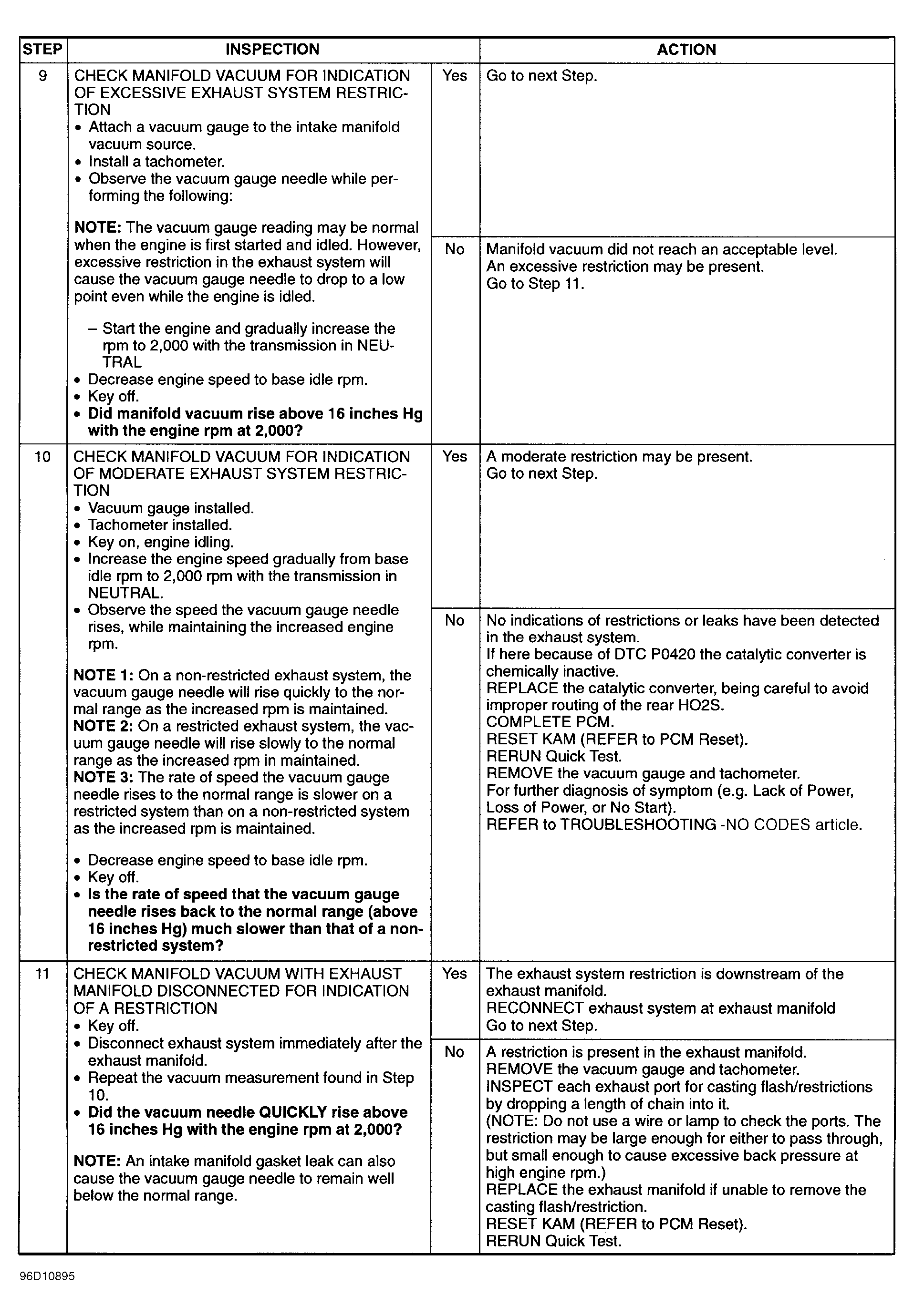

Fig 3: DTC P0420 (3 Of 4)
G96D10895

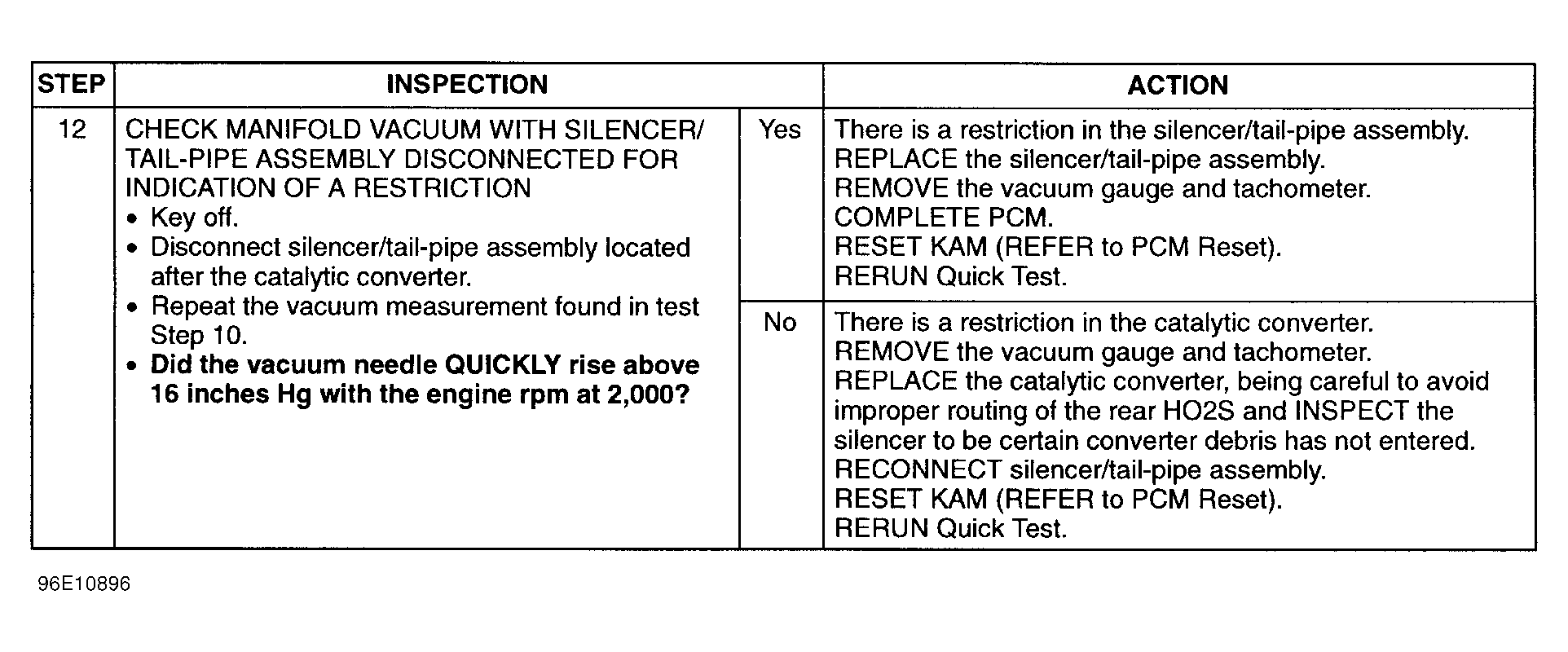

Fig 4: DTC P0420 (4 Of 4)
G96E10896
