DTC P1408: EGR System Flow Out Of Self-Test Range

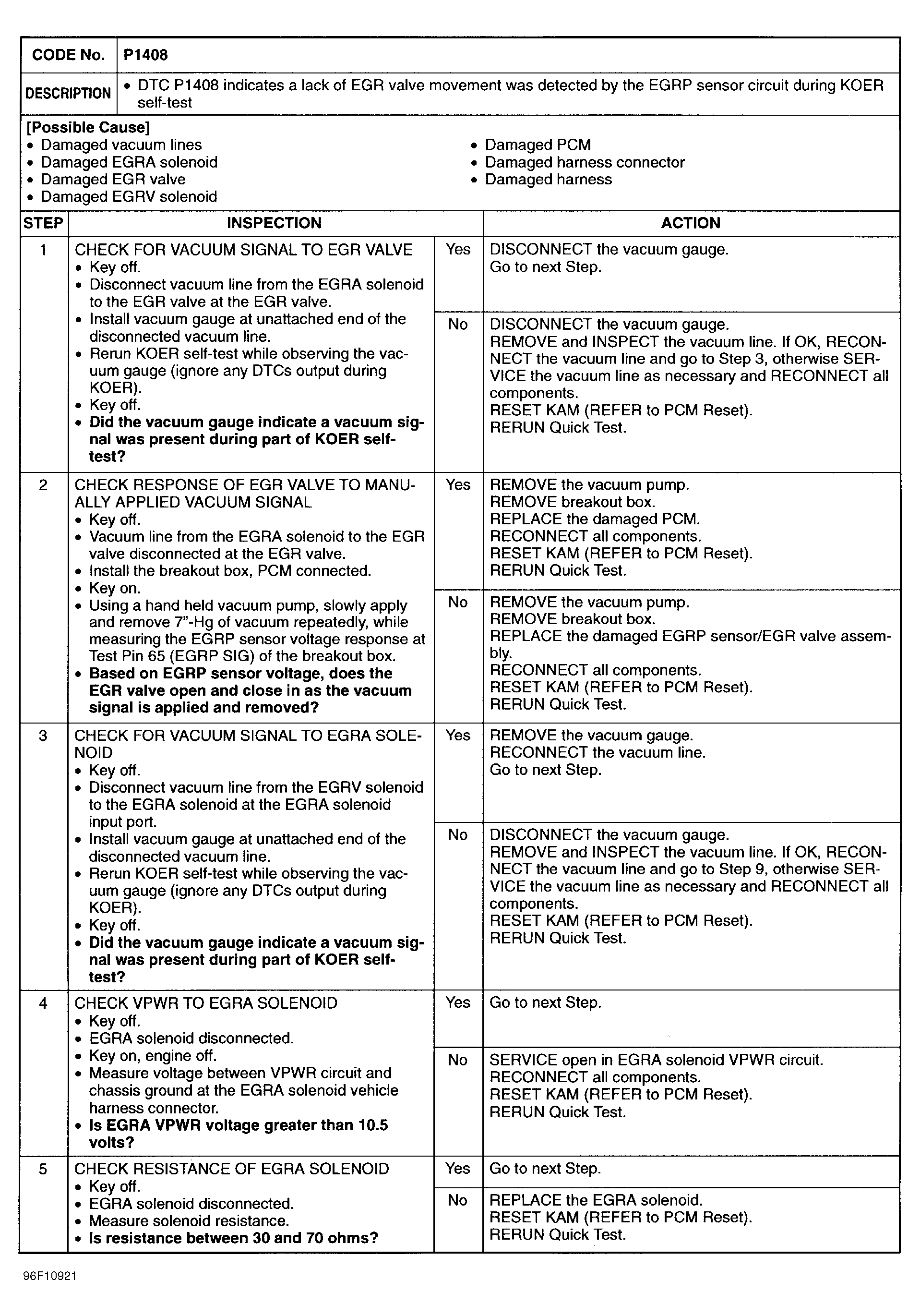

Fig 1: DTC P1408 (1 Of 3)

G96F10921

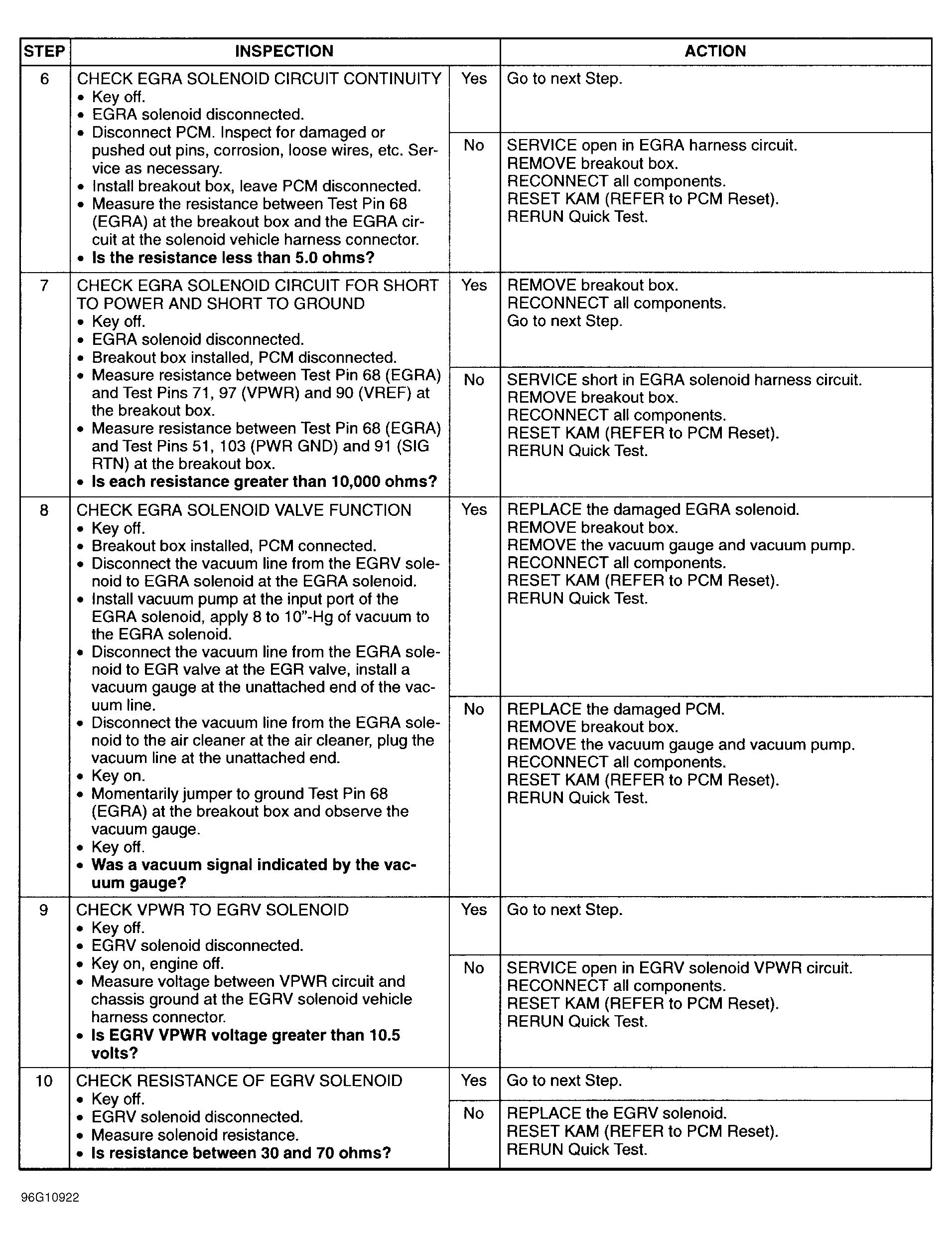

Fig 2: DTC P1408 (2 Of 3)

G96G10922

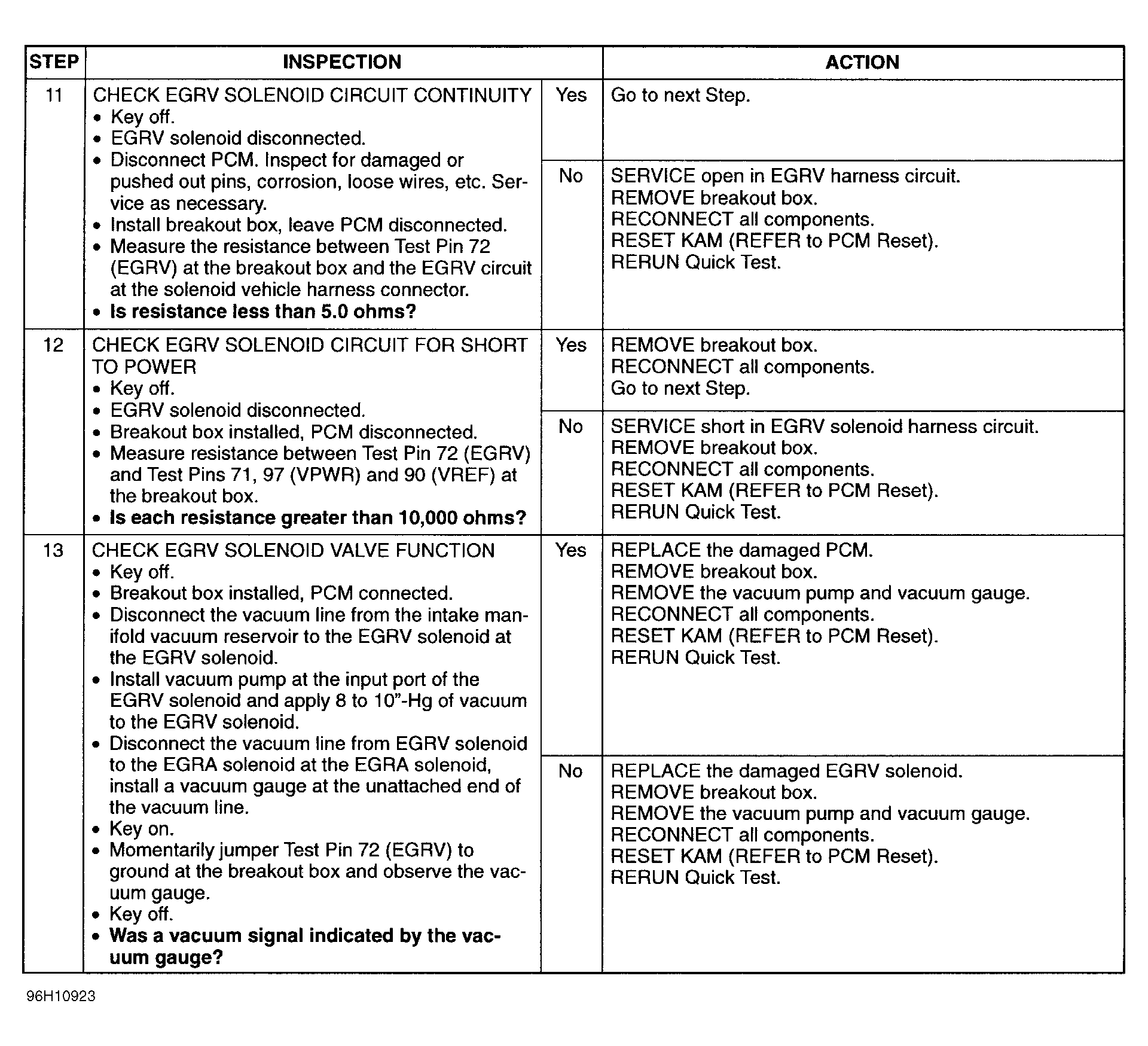

Fig 3: DTC P1408 (3 Of 3)

G96H10923
