Control Units

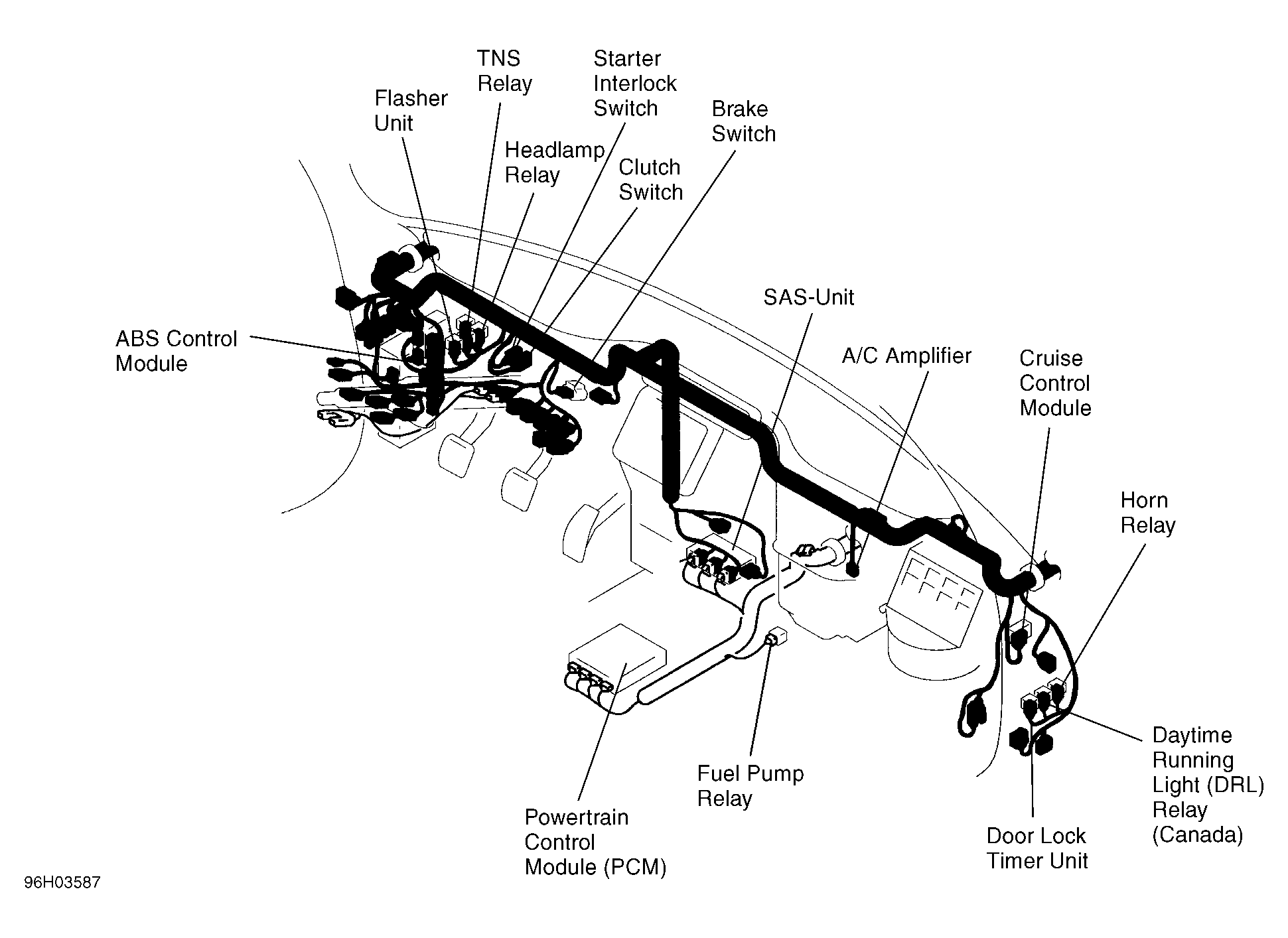

CONTROL UNITS LOCATION

Component	Location
ABS Control Module	Behind left side of dash. See Figure .
Central Processing Unit (CPU)	Behind left kick panel, on back of joint box.
Cruise Control Module	Behind right kick panel. See Figure .
Powertrain Control Module (PCM)	Under center of dash. See Figure .
SAS-Unit (Air Bag System)	Behind center of dash. See Figure .
