Electronic Brake Control Module: Testing and Inspection

Ensure terminal voltage is as specified for conditions indicated, Fig. 120 and 121. If not, perform inspections as indicated.

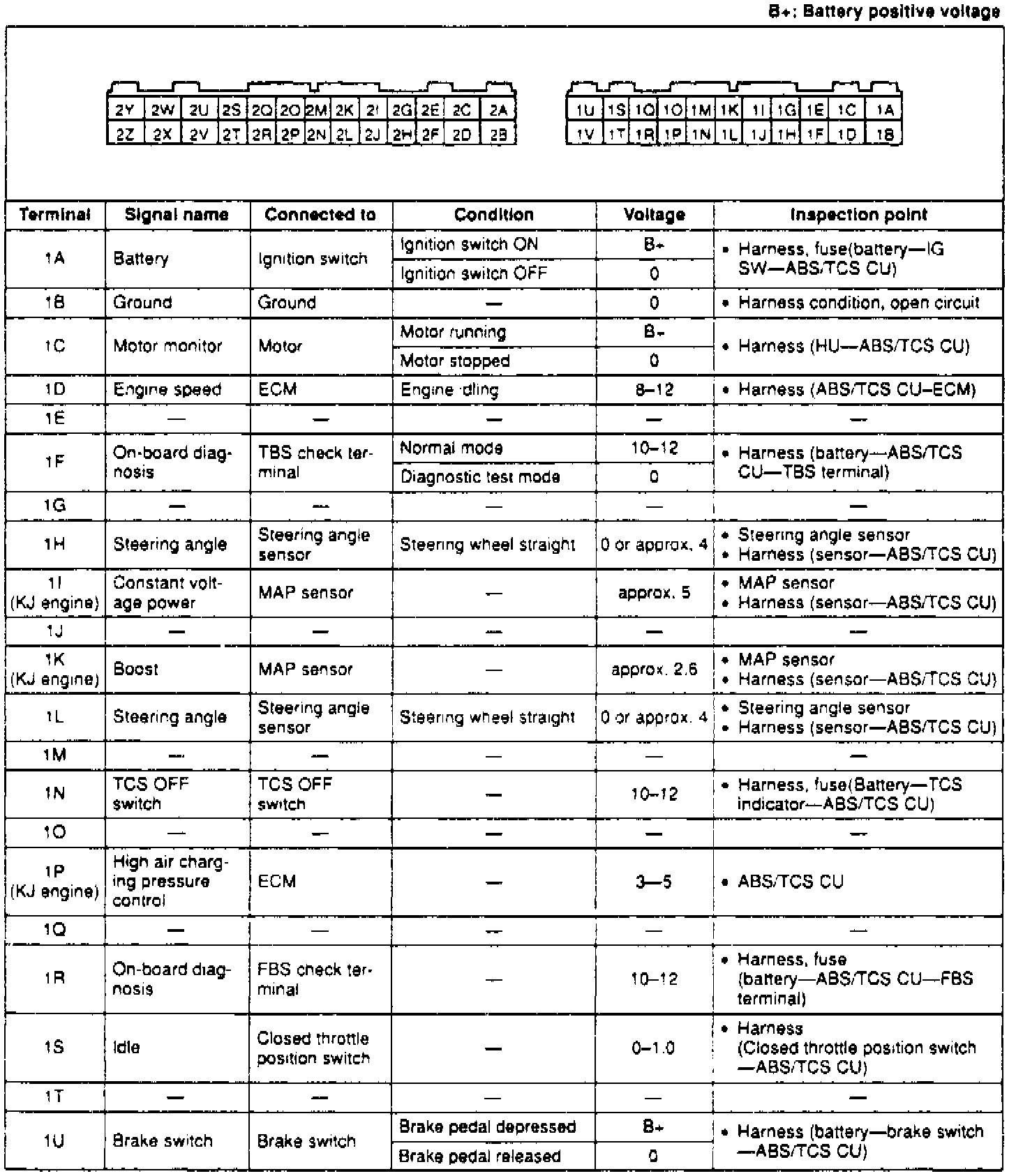

Fig. 120 ABS Control Unit Inspection (part 1 Of 2):

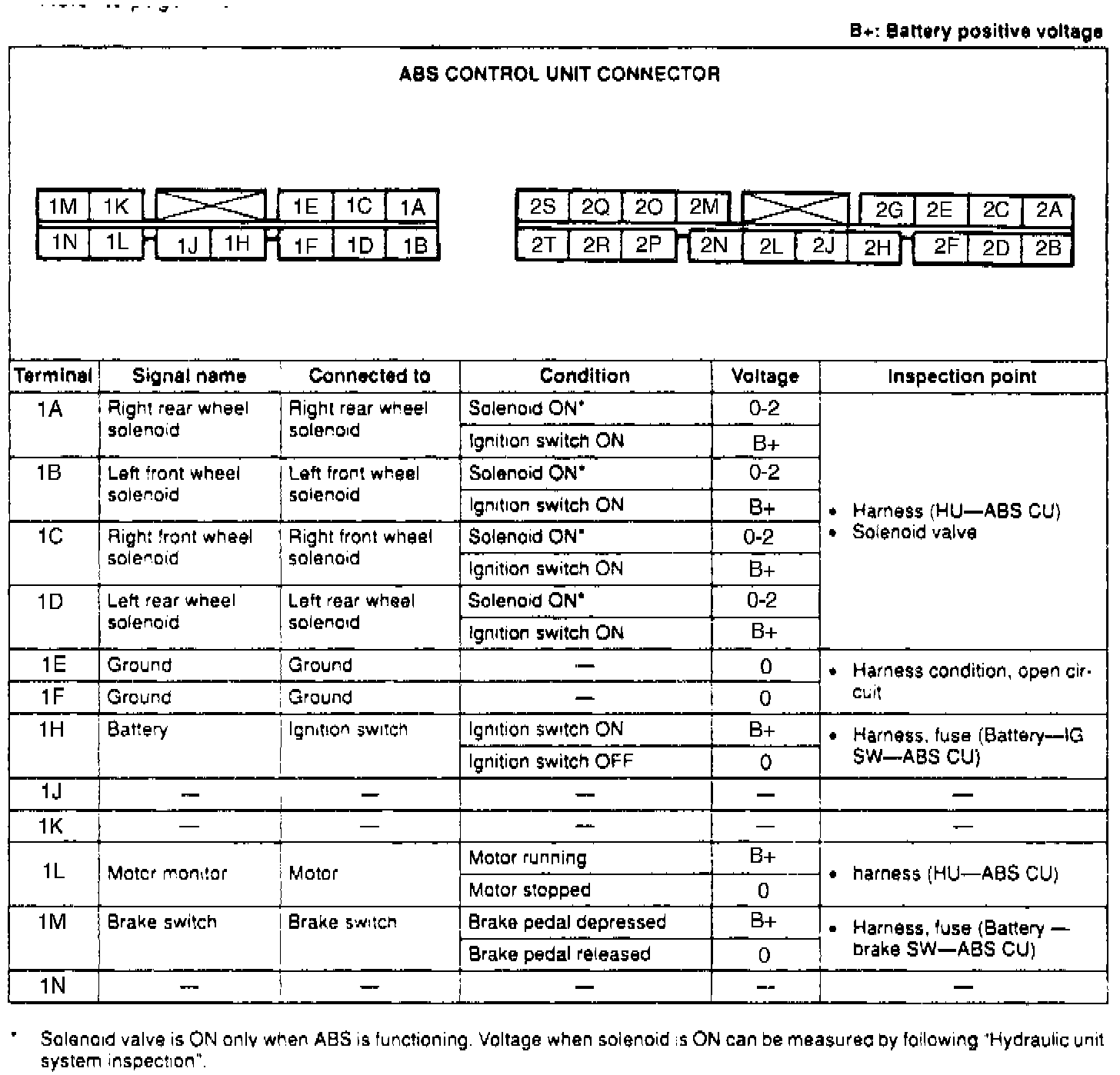

Fig. 120 ABS Control Unit Inspection (part 2 Of 2):

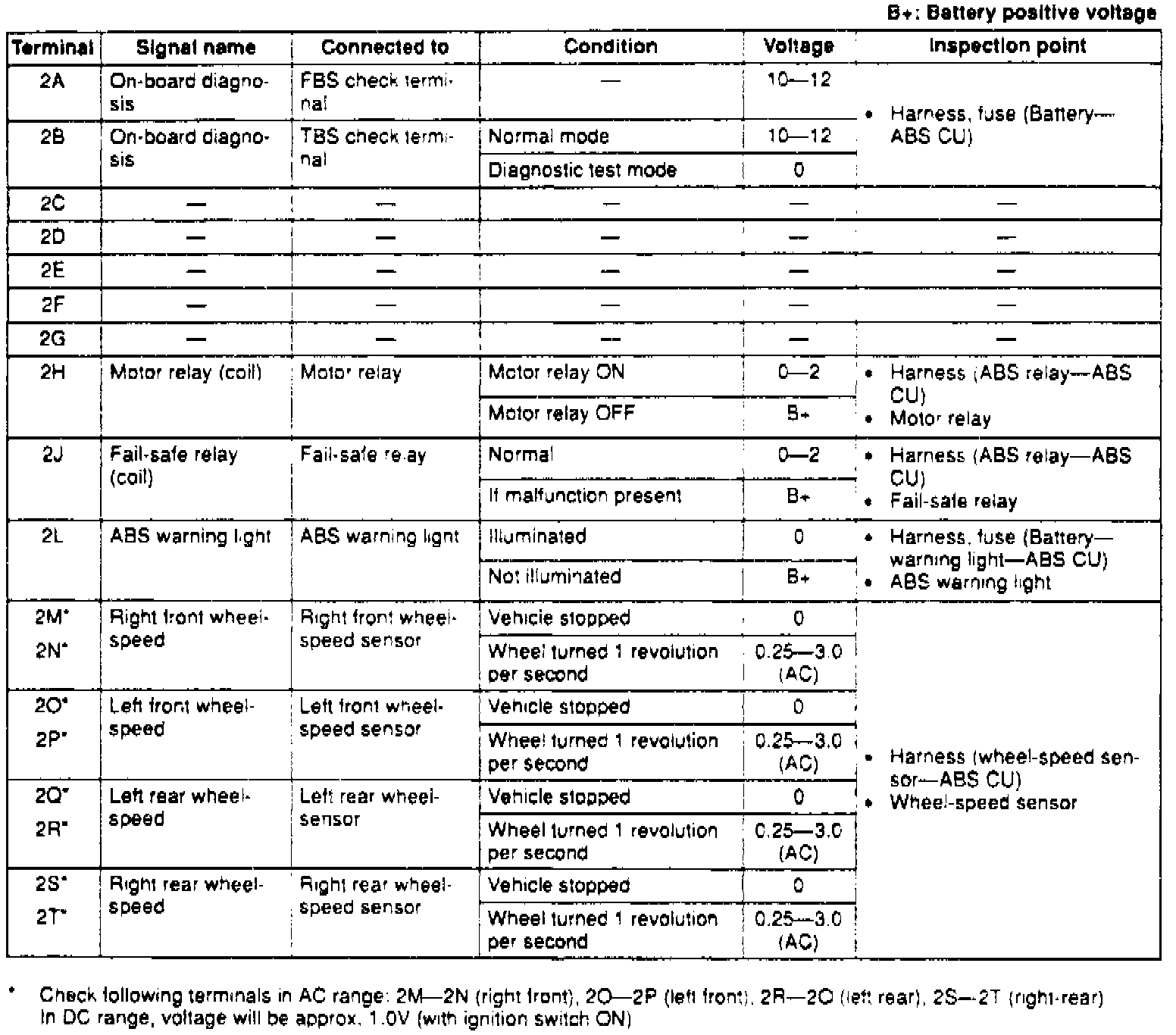

Fig. 121 ABS Control Unit Inspection (part 1 Of 2):

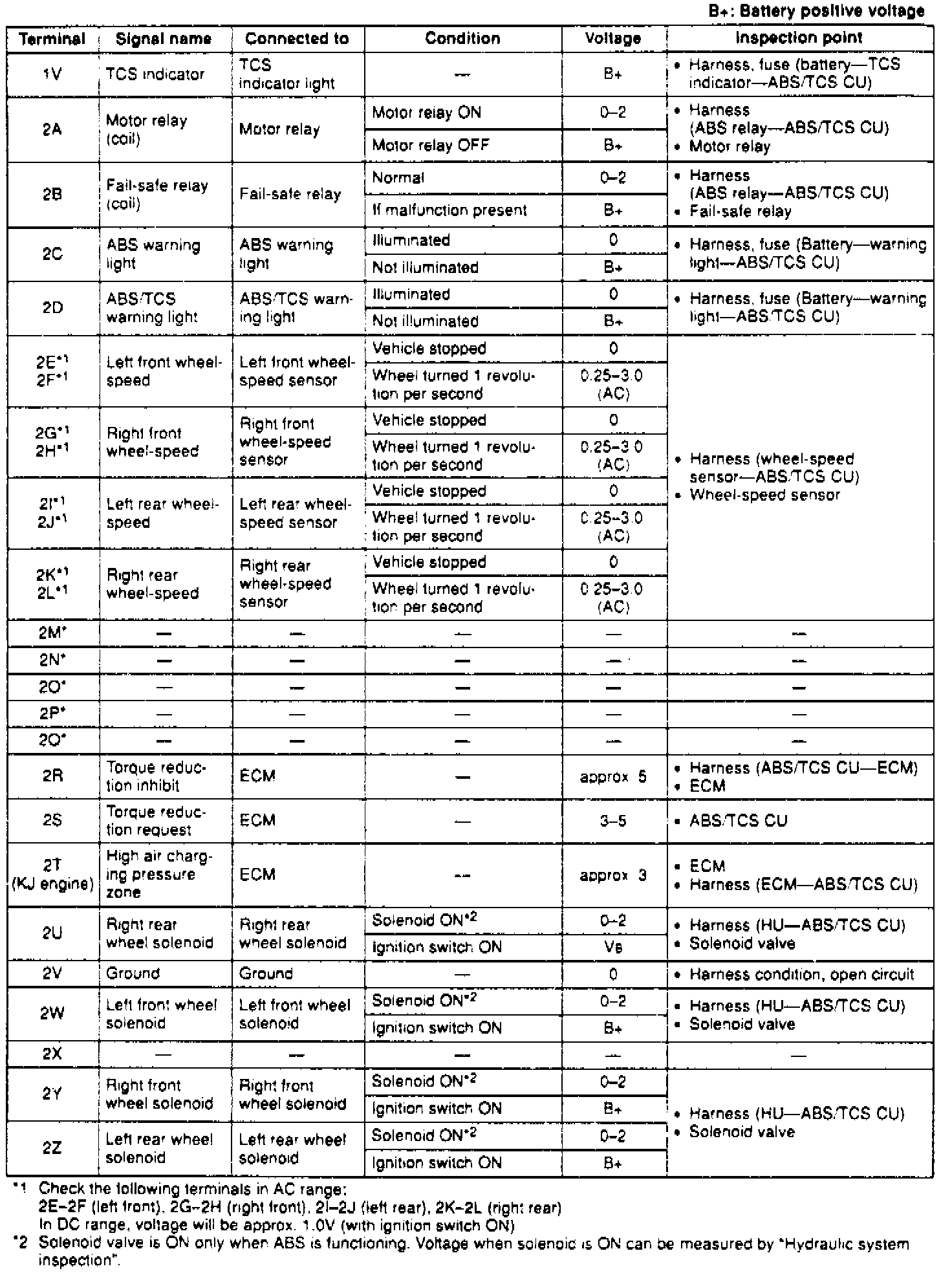

Fig. 121 ABS Control Unit Inspection (part 2 Of 2):
