Power Door Lock Control Module: Testing and Inspection

Inspection

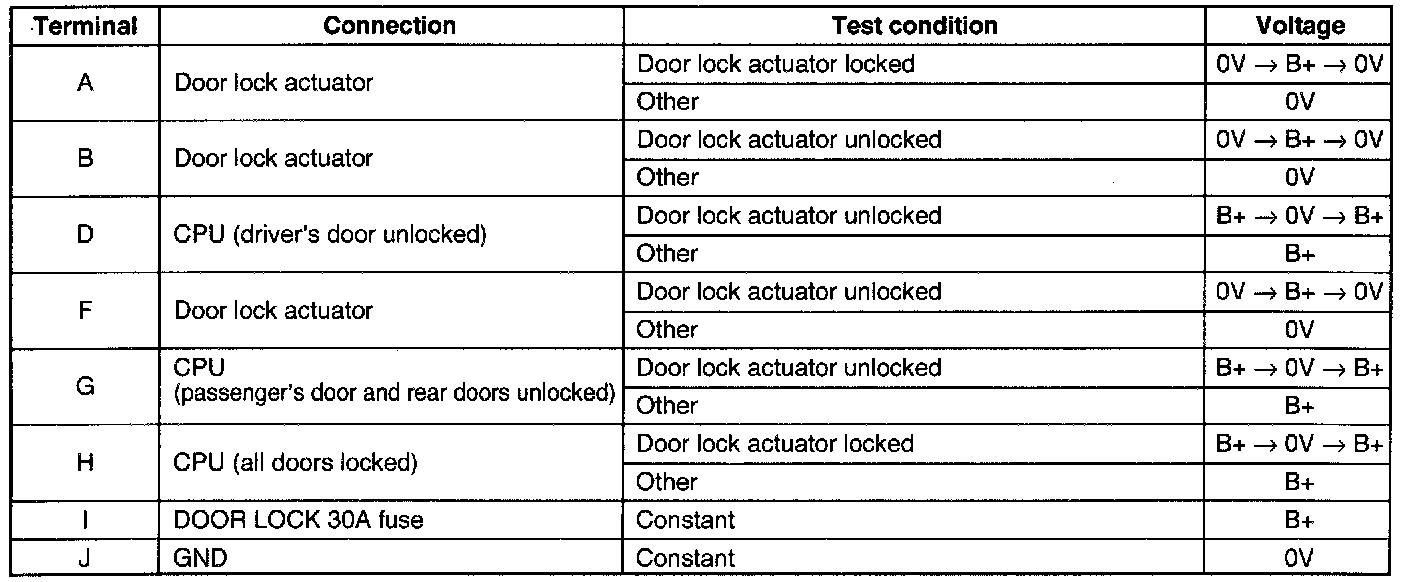

1. Measure the voltage at the terminals of the door lock timer unit as indicated below.
2. If not as specified, replace the door lock timer unit.





Without keyless entry system





With keyless entry system
