Keyless Entry System Problem Check Sheet

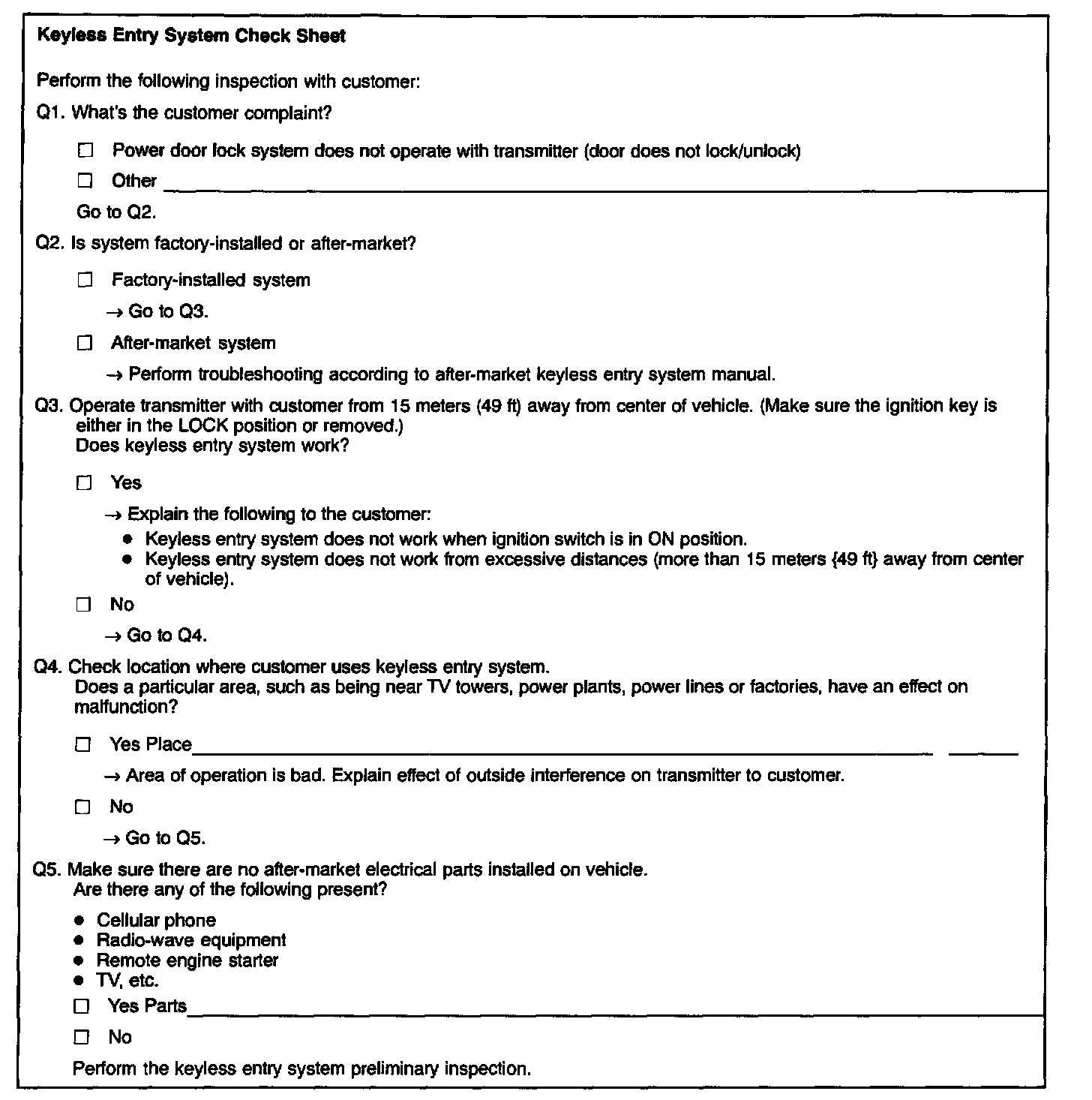

KEYLESS ENTRY SYSTEM PROBLEM CHECK SHEET






NOTE
- Use the sheet as a customer interview sheet when accepting a vehicle for service.
- If the symptom is "Power door lock system does not operate with transmitter at all", find out how the customer uses the keyless entry system according by following the check sheet below.
