Spark Plug: Testing and Inspection

PURPOSE
Checking spark plugs condition can determine whether problem is related to a specific cylinder or to all cylinders.

PROCEDURE
1. Remove the spark plug.
2. Check spark plug condition.
3. Go to appropriate troubleshooting chart for further information.

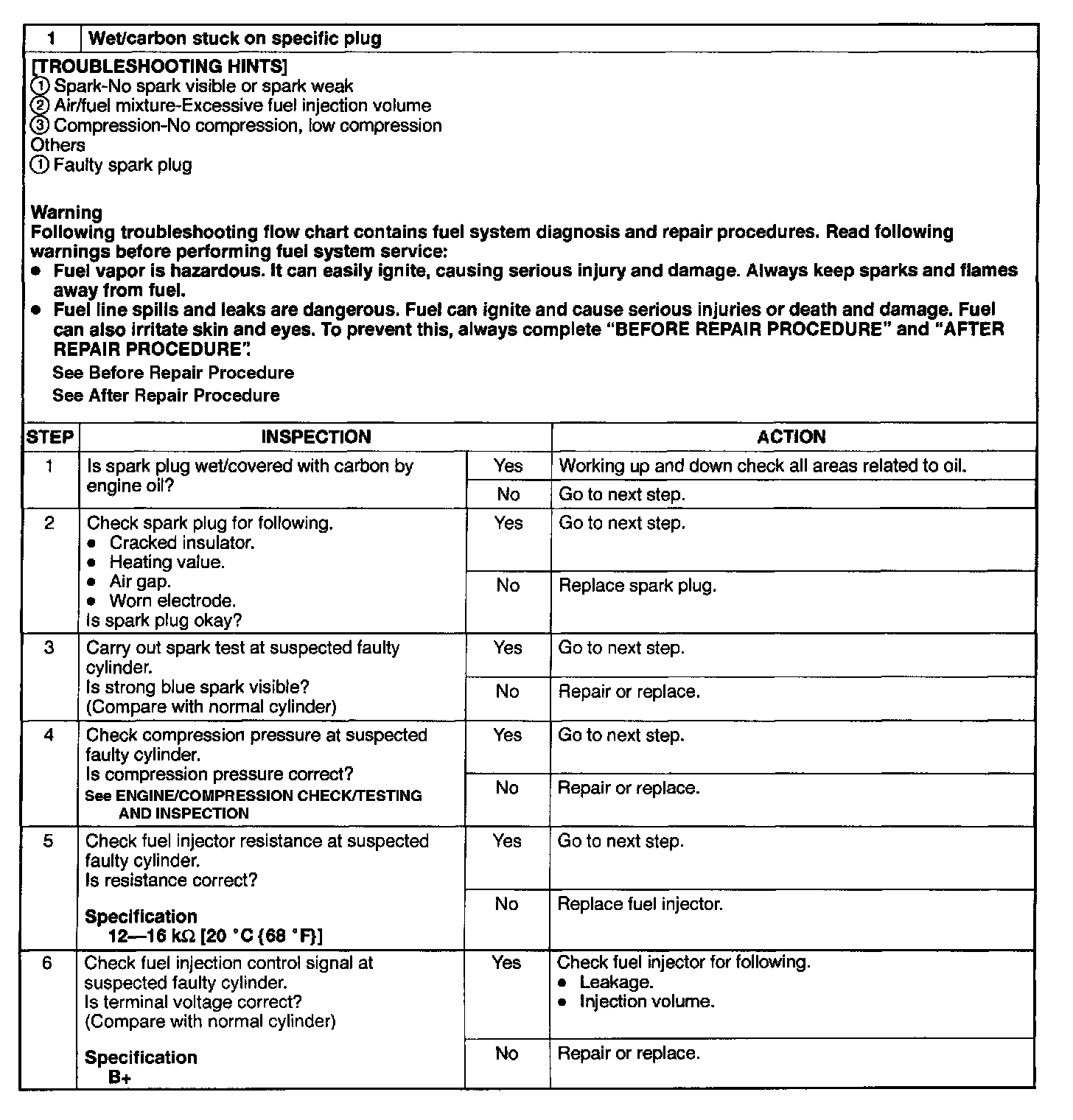

1 Of 4:

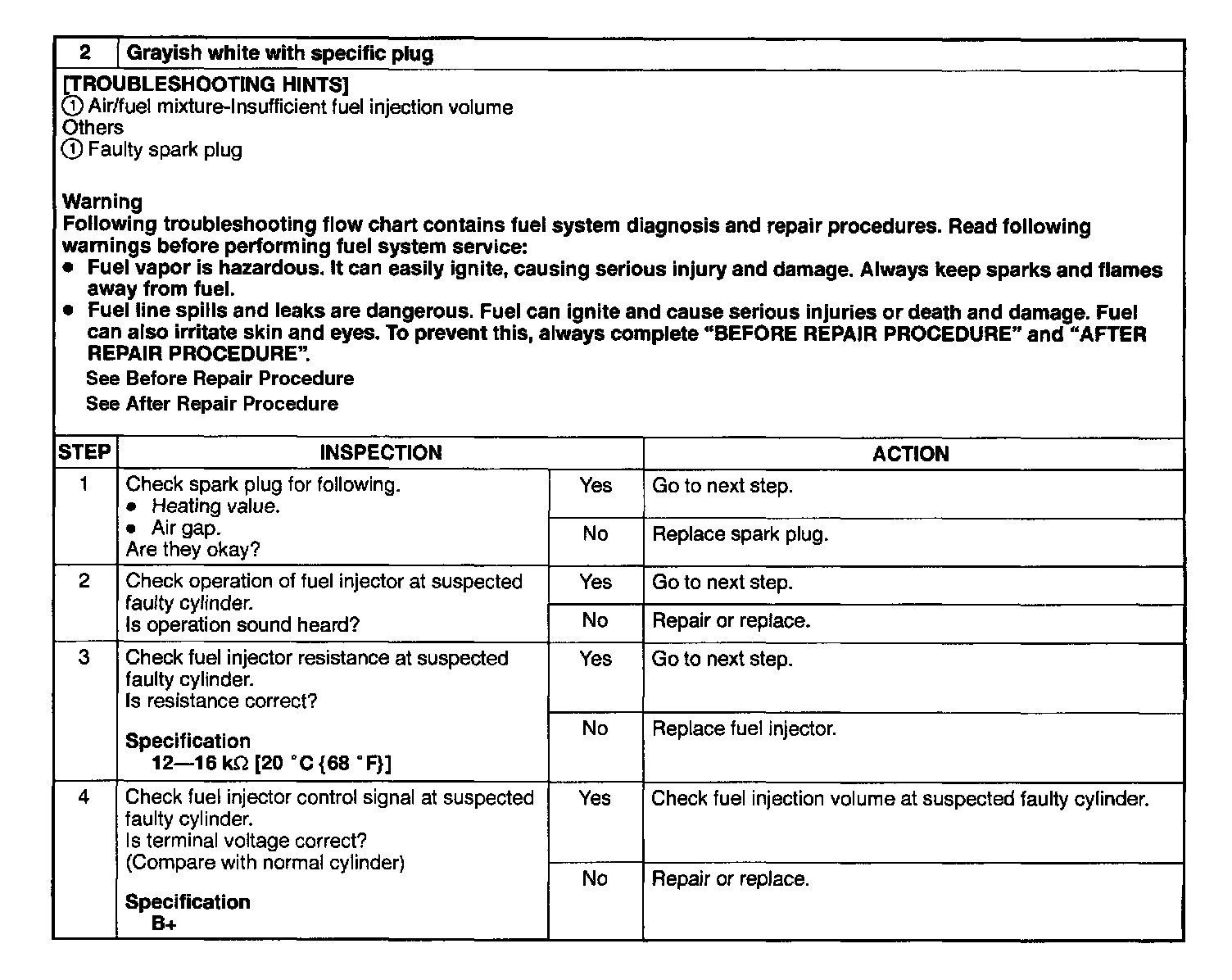

2 Of 4:

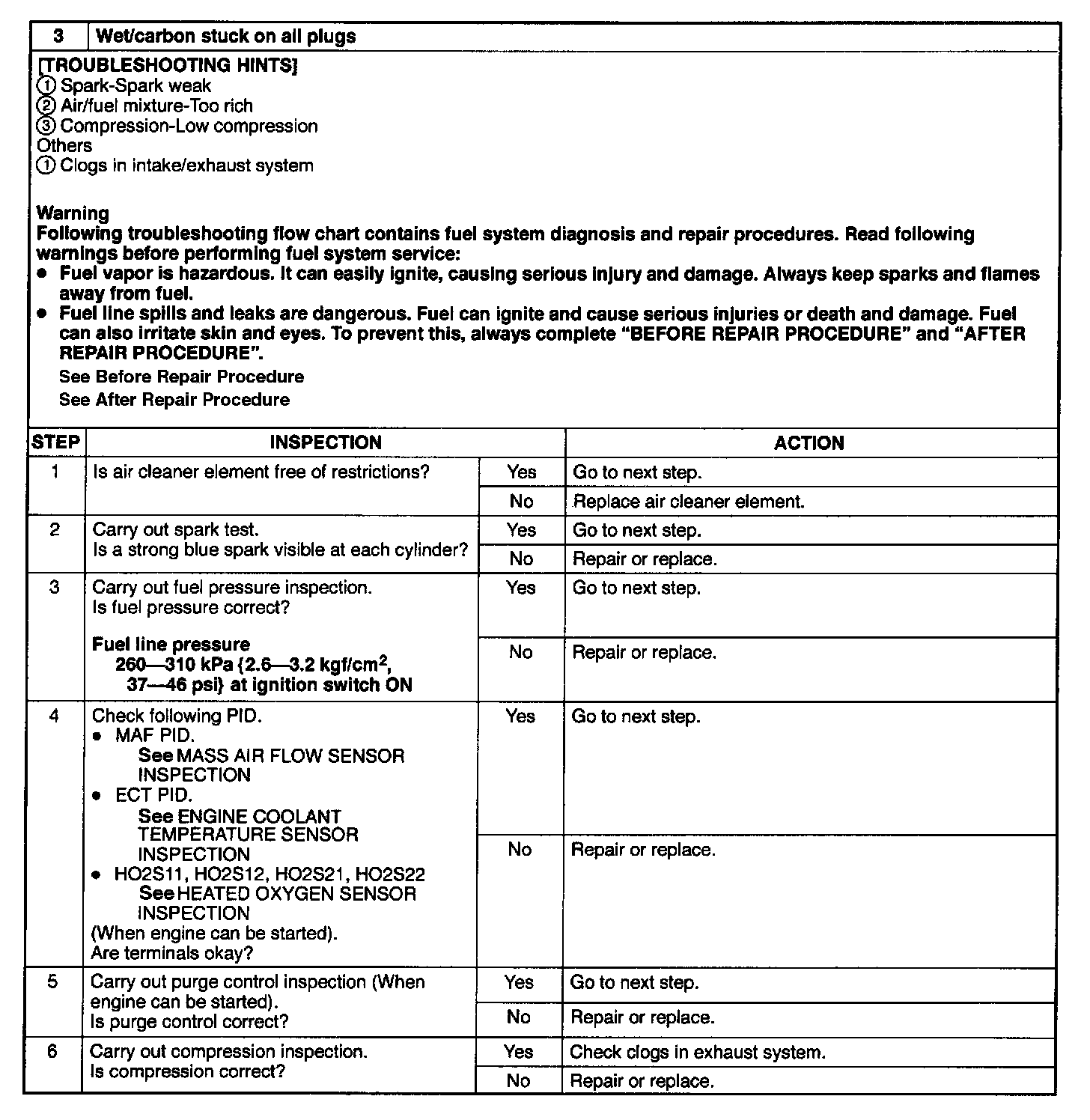

3 Of 4:

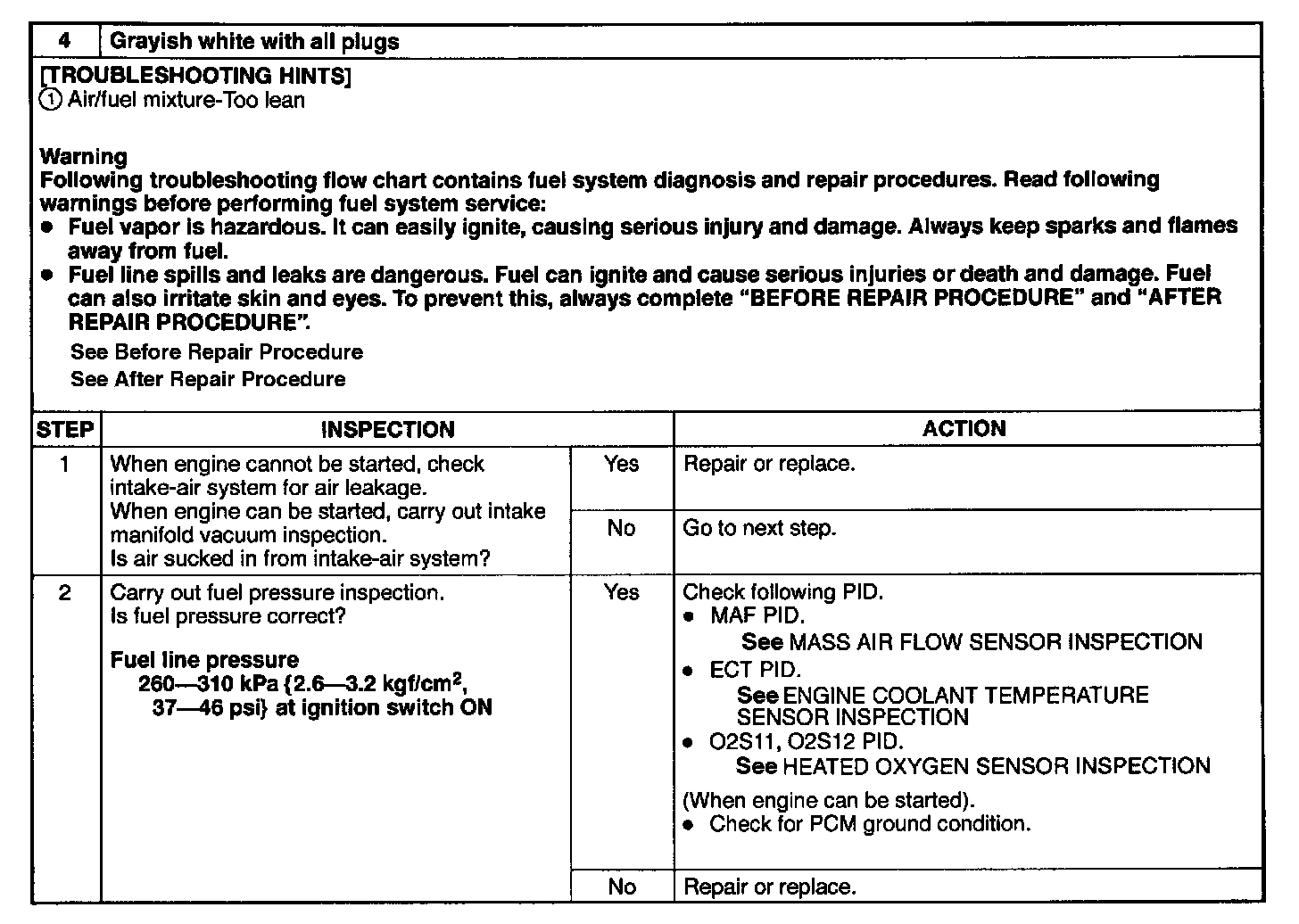

4 Of 4:
