Torque Specifications

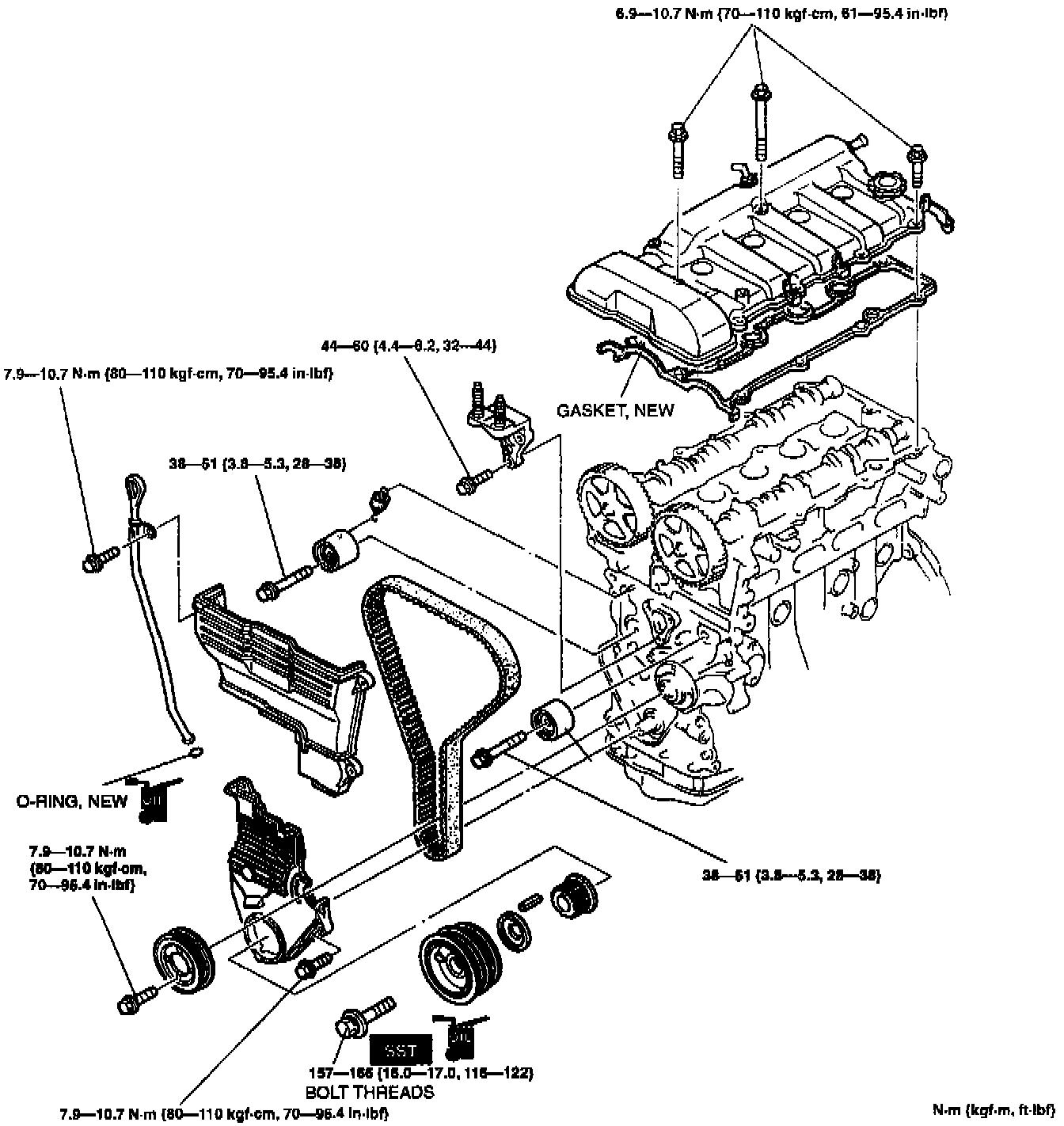

Timing Components:

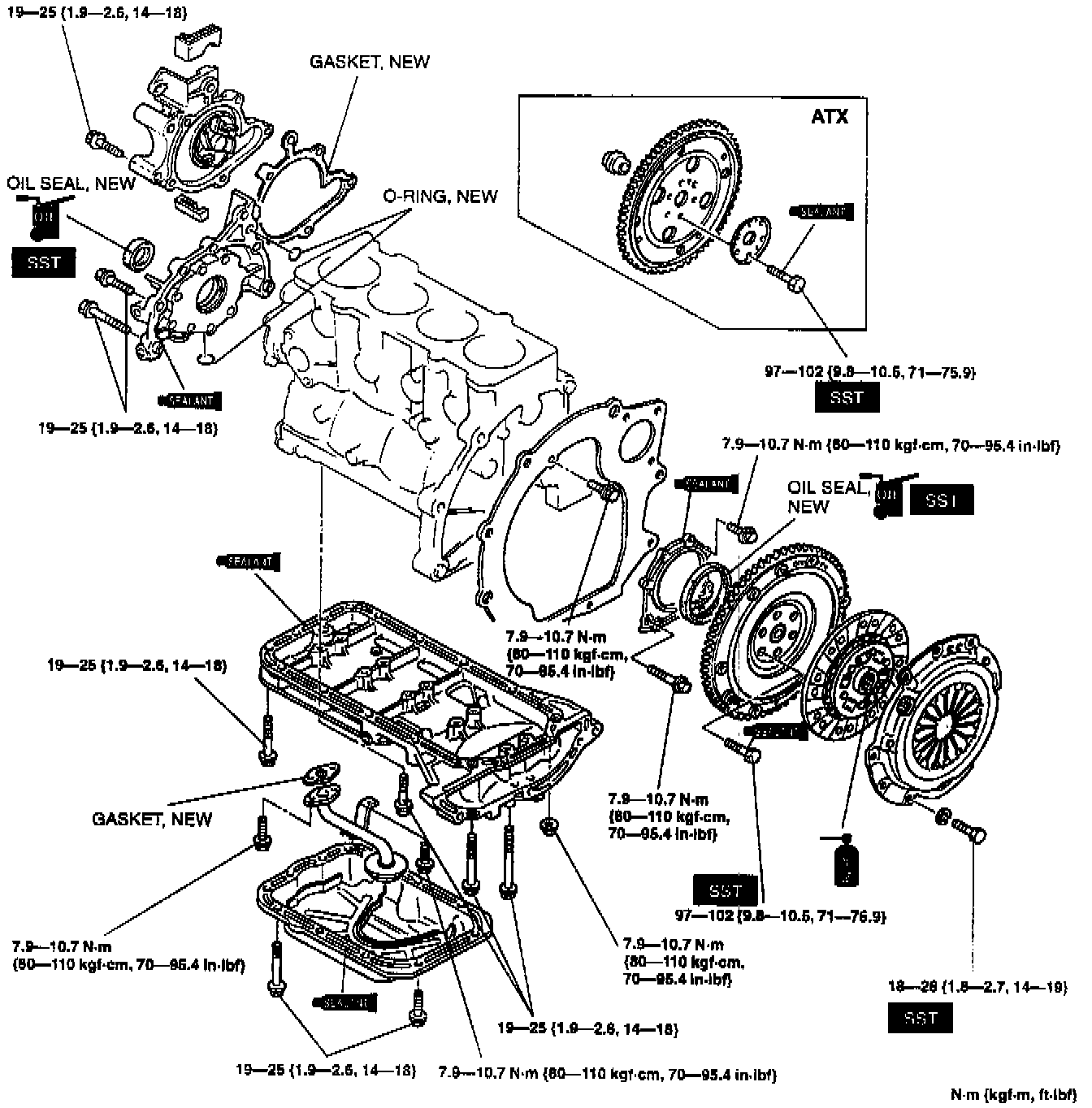

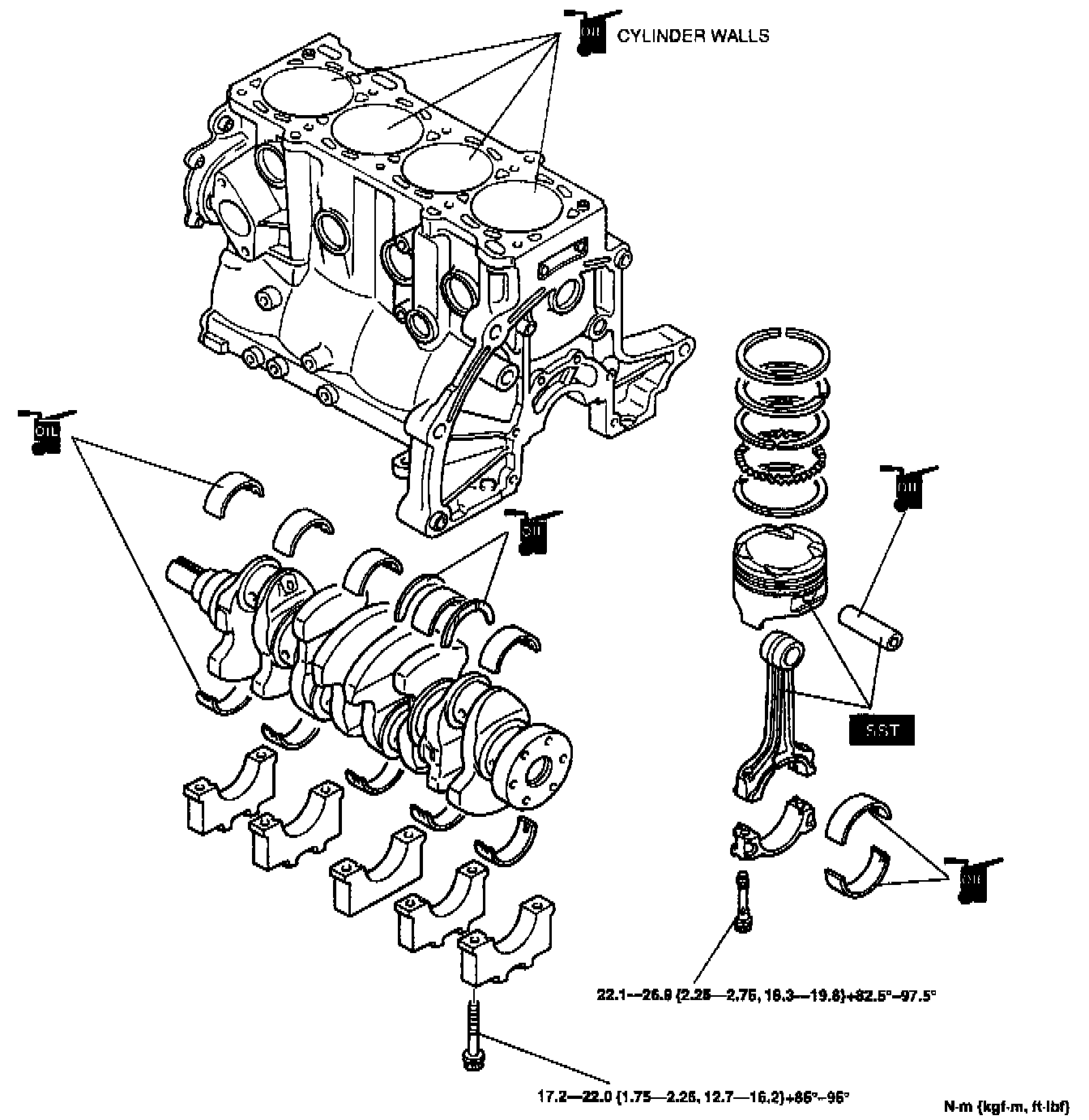

Lower Engine:

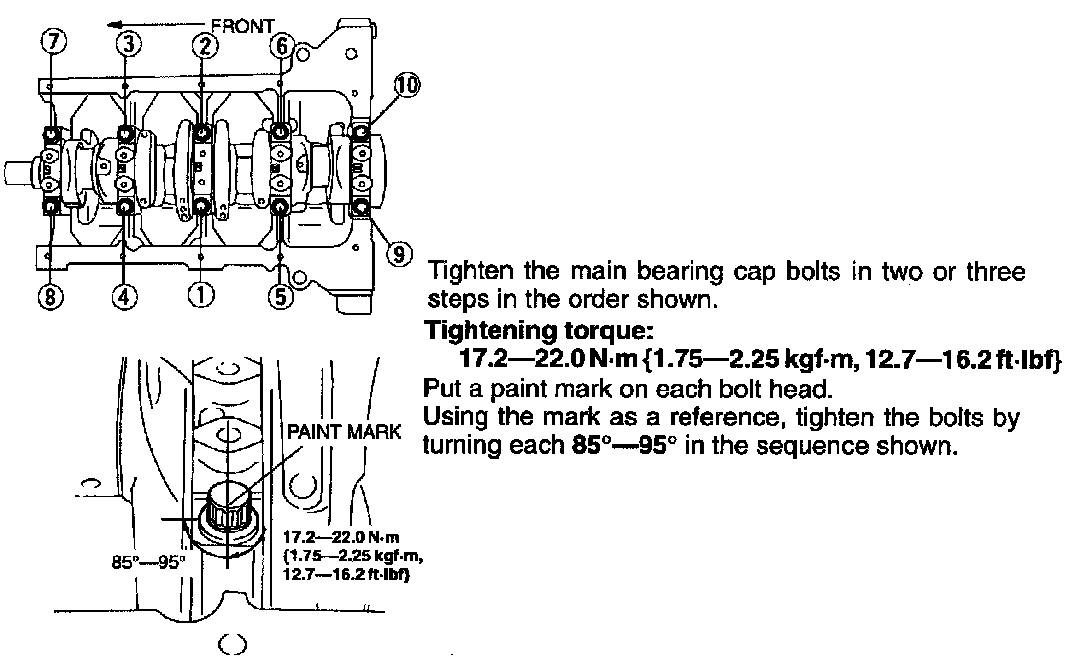

Main Bolt Torque/Sequence:






Upper Oil Pan:
