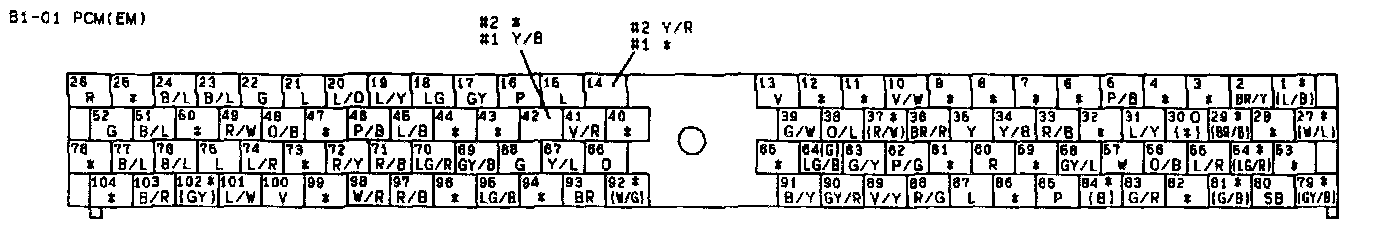

Engine Control Module

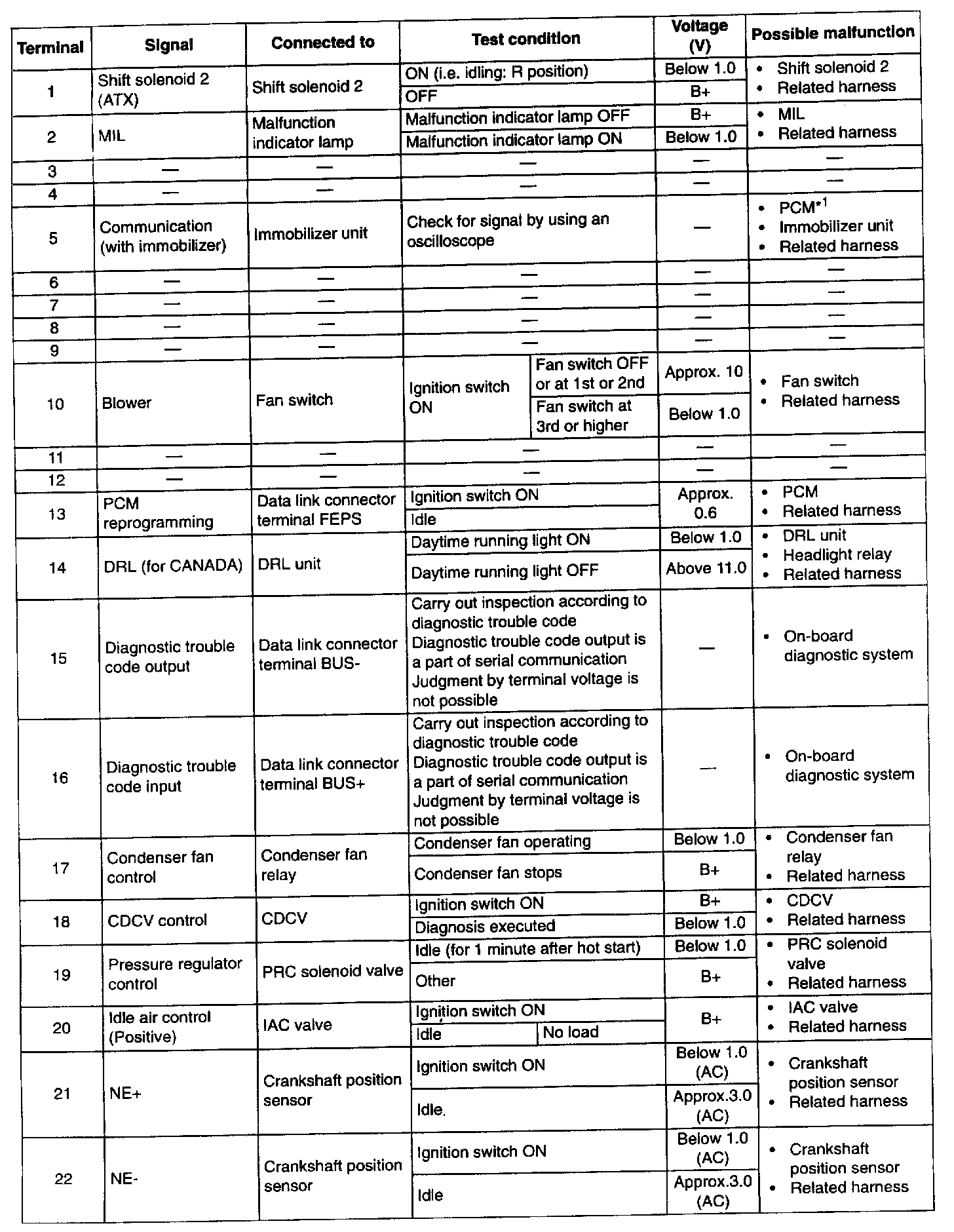

Terminals 1-22

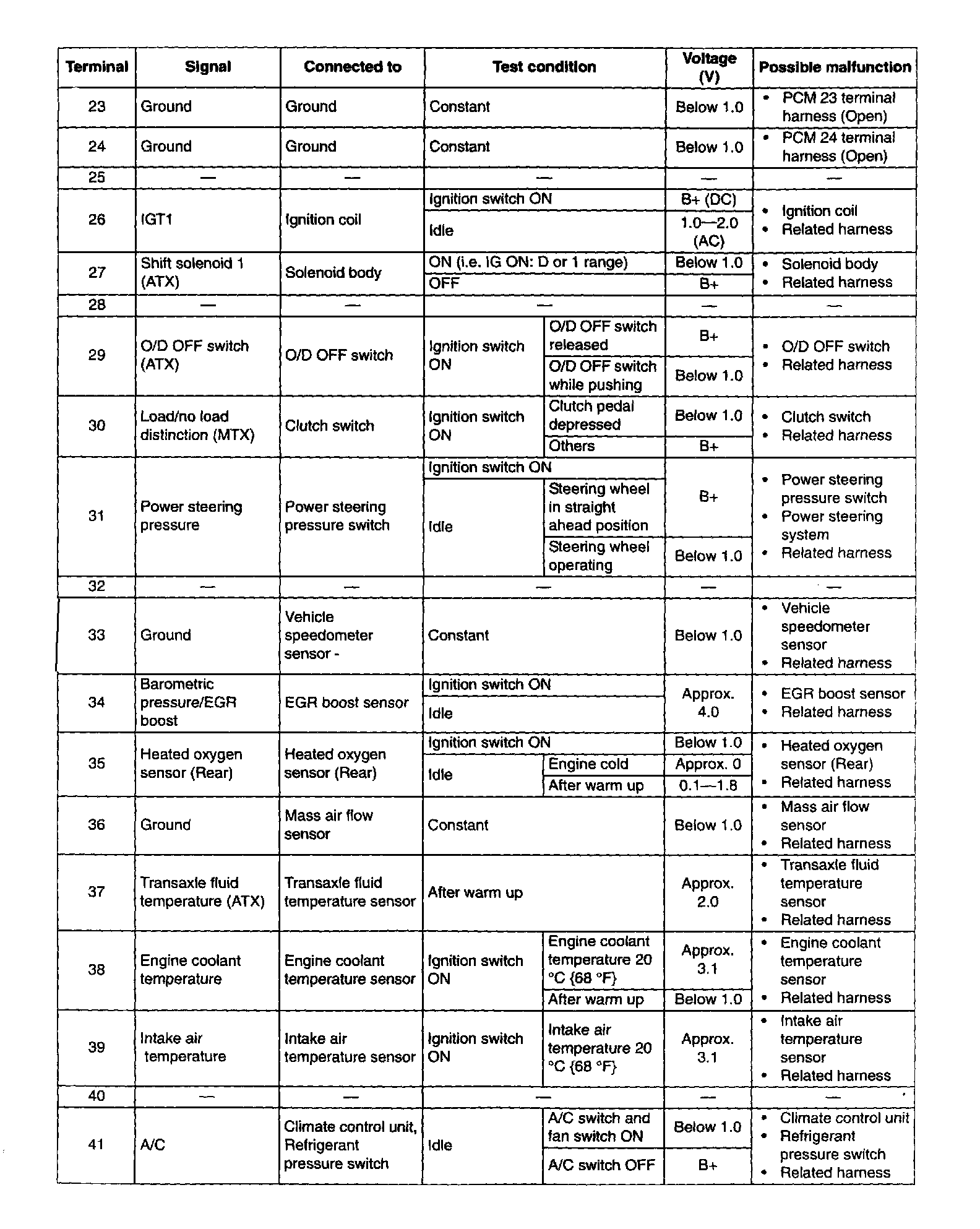

Terminals 23-41

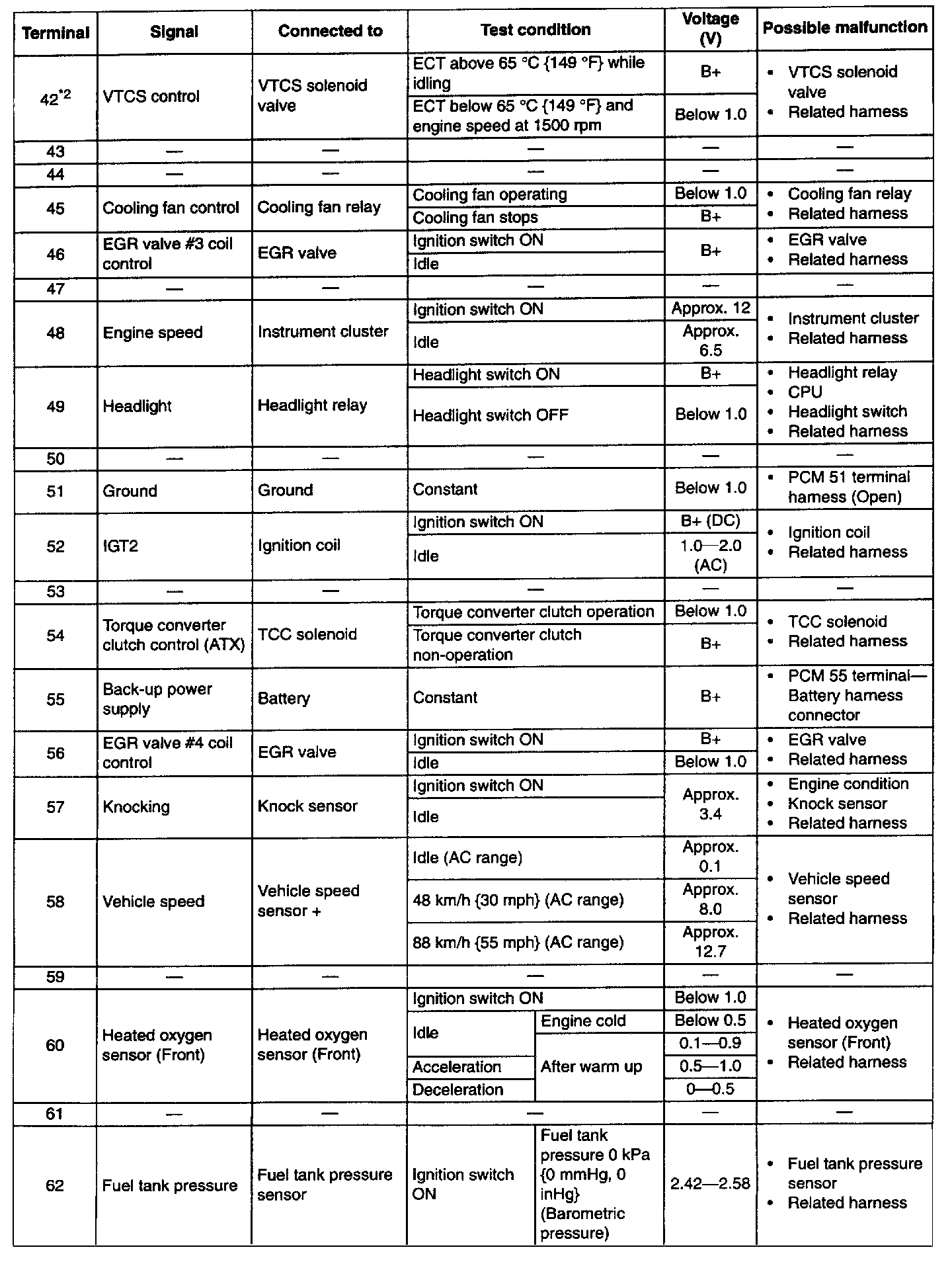

Terminals 42-62

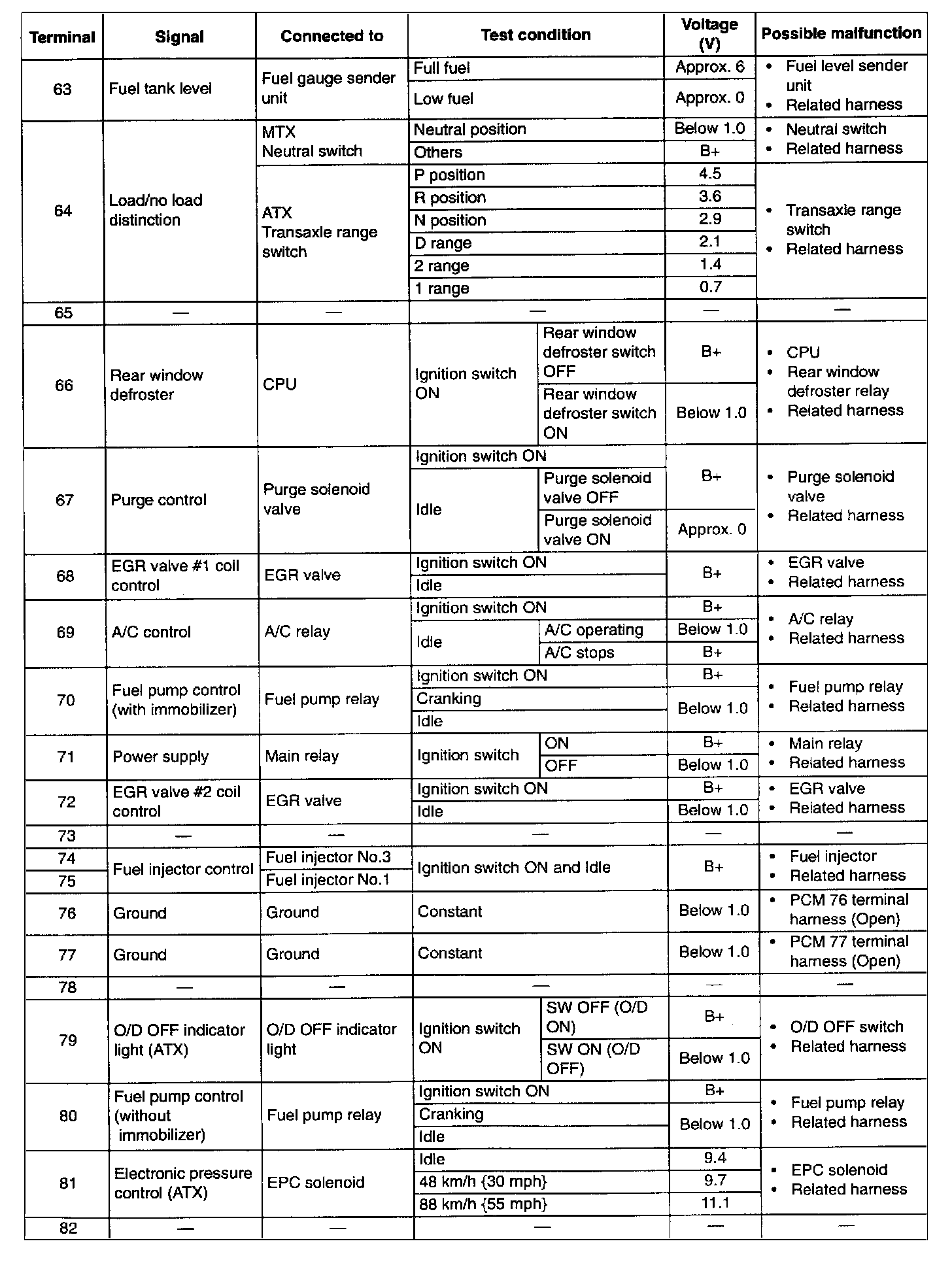

Terminals 63-82

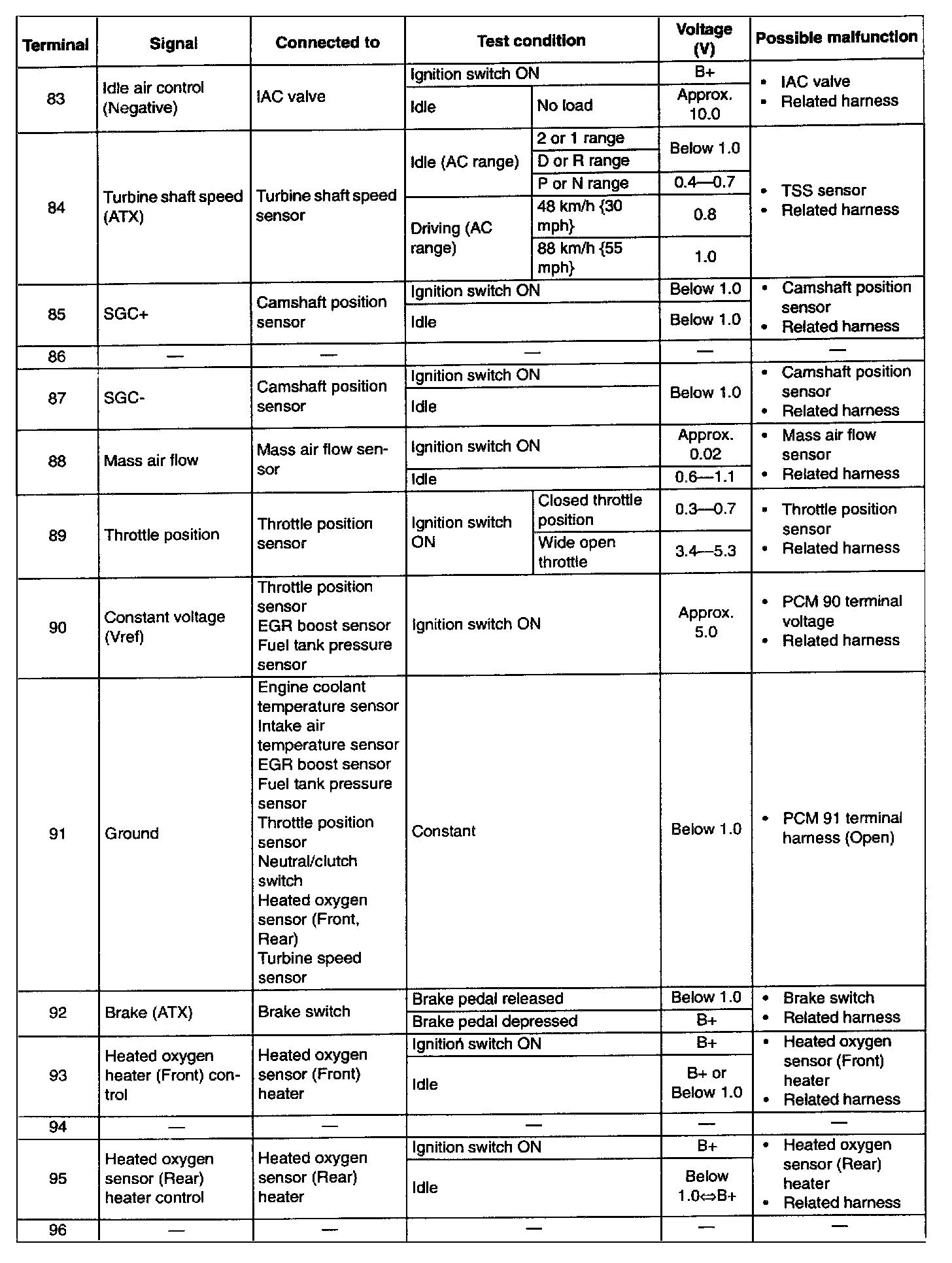

Terminals 83-96

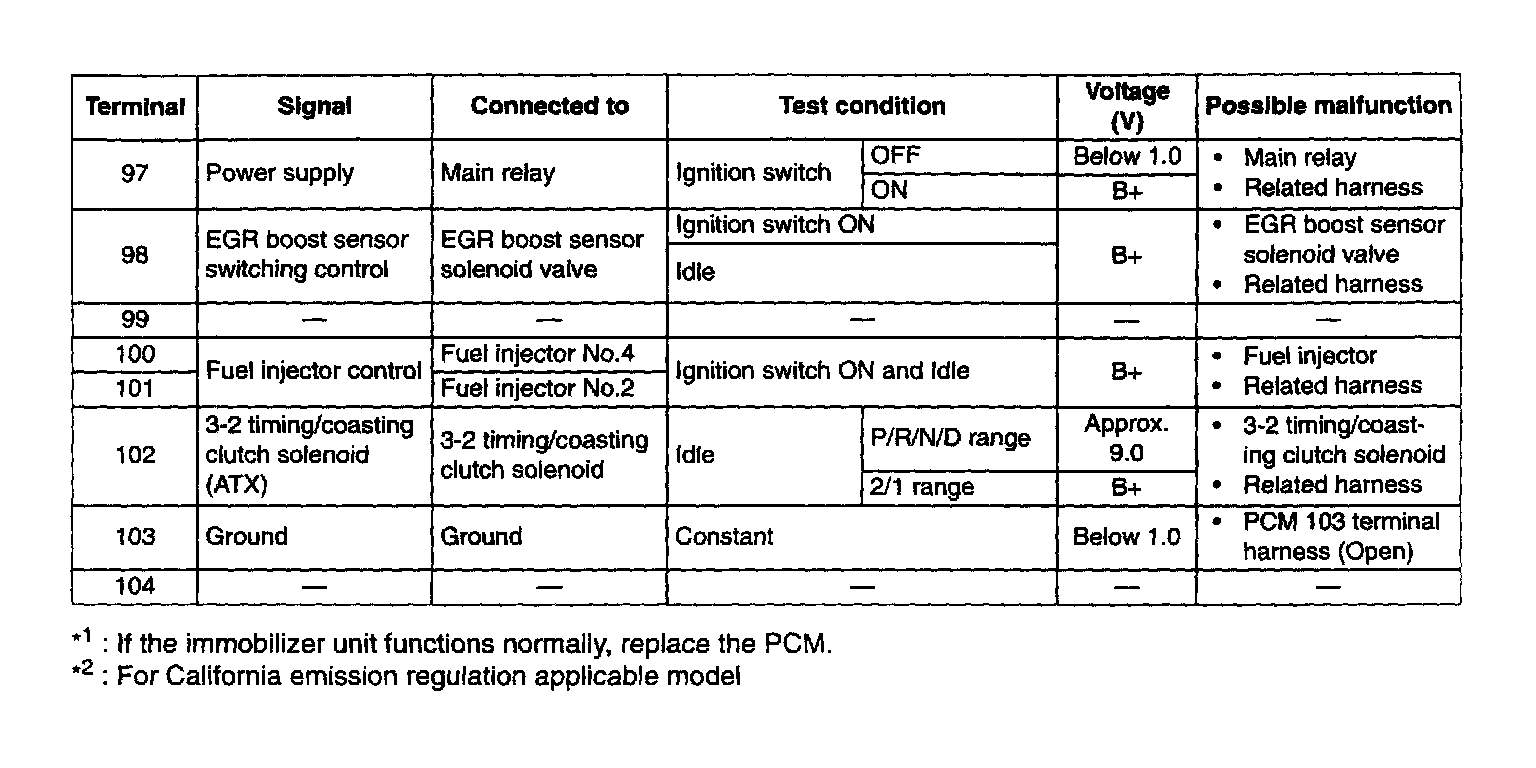

Terminals 97-104
