Climate Control Unit Installation
WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

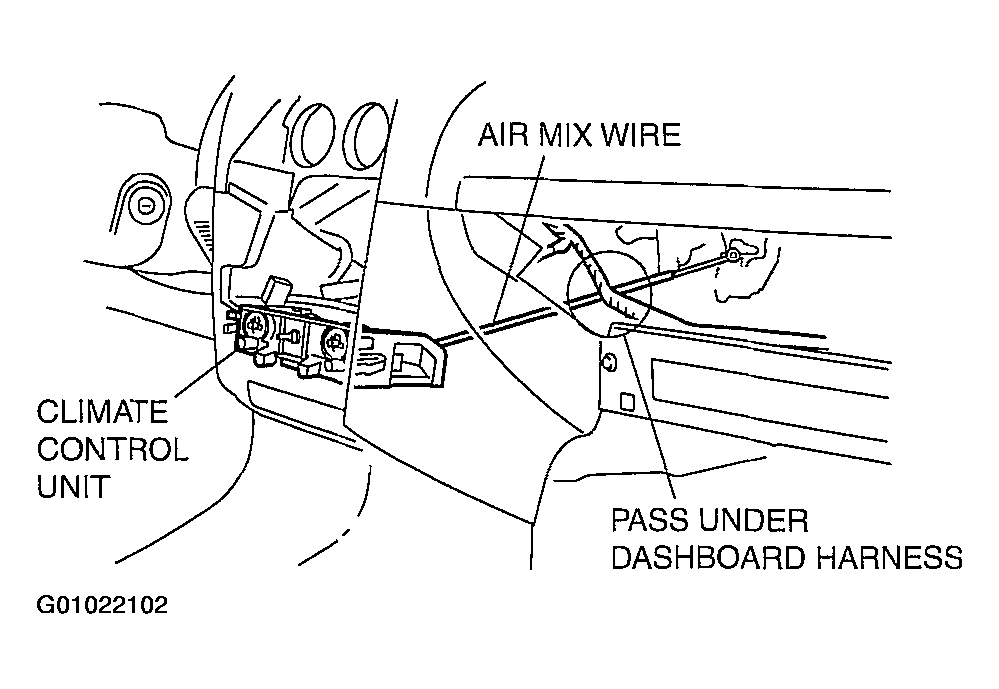

- Pass air mix wire through the following routes then connect to A/C unit. (Manual air conditioner)
- Connect the climate control unit connectors. (Manual air conditioner)
- Install the climate control unit to the center panel. (Full-auto air conditioner)
- Install the center panel.
- Adjust the climate control unit wire. (Manual air conditioner). See CLIMATE CONTROL UNIT WIRE ADJUSTMENT .
- Connect the negative battery cable.
