Control System Location Index
WARNING:
This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

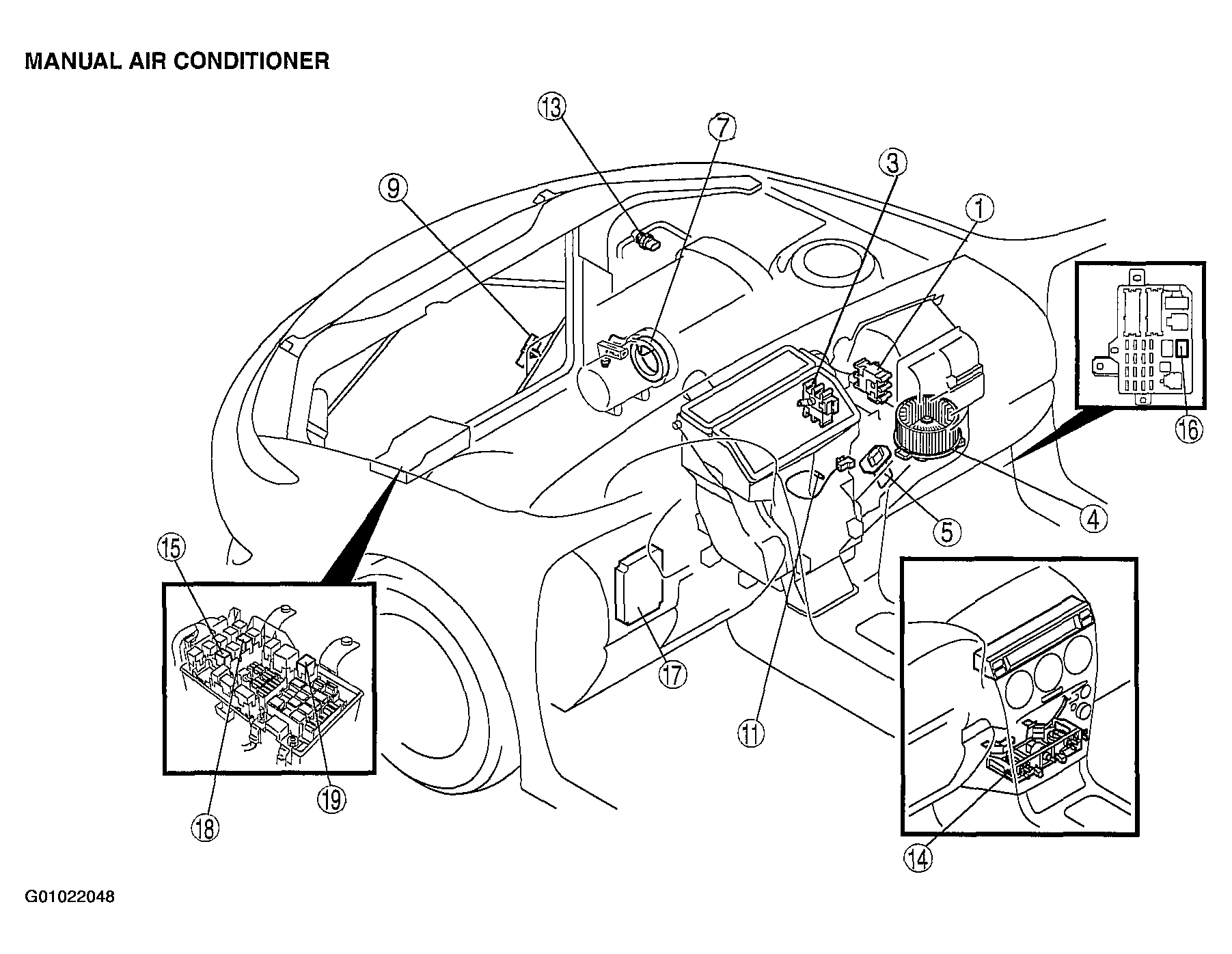

Fig 1: Control System Location Index
Courtesy of MAZDA MOTORS CORP.

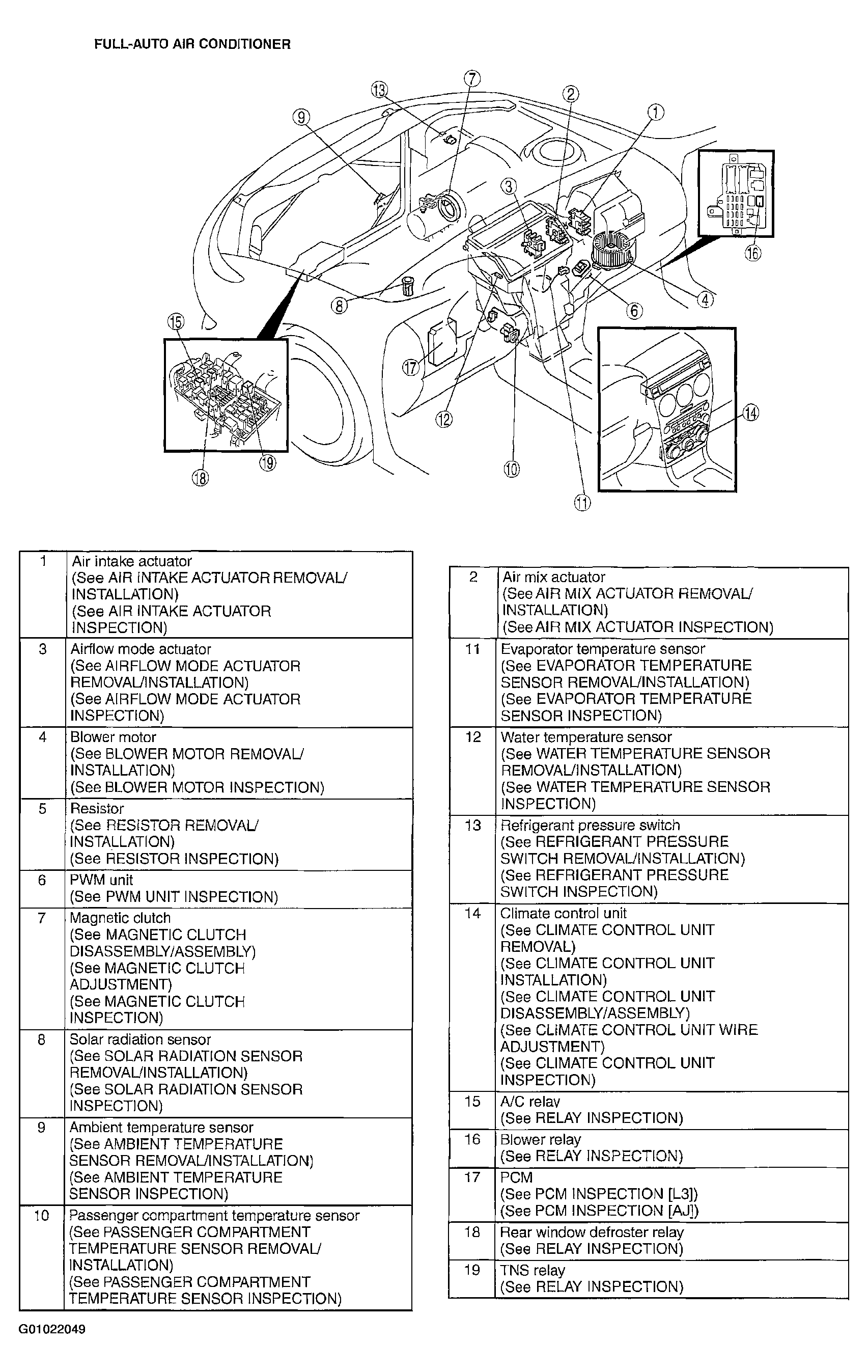

Fig 2: Control System Component Location Table
Courtesy of MAZDA MOTORS CORP.
