Refrigerant Pressure Switch Removal/Installation: Notes

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Remove the battery.
Discharge the refrigerant from the system. See REFRIGERANT CHARGING .
Remove the front combination light (RH). See HEADLIGHT BULB REMOVAL/INSTALLATION .
Loosen the refrigerant pressure switch using two spanners.
Remove in the order indicated in the table.

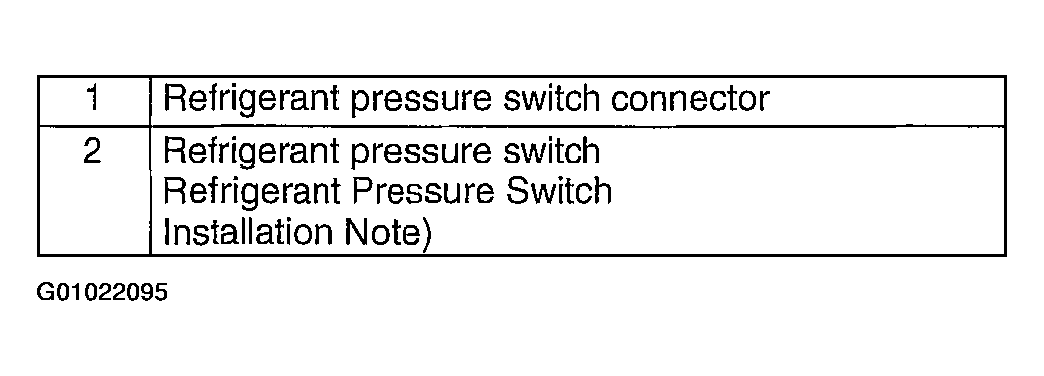

Fig 1: Removal Sequence Of Refrigerant Pressure Switch Table
Courtesy of MAZDA MOTORS CORP.

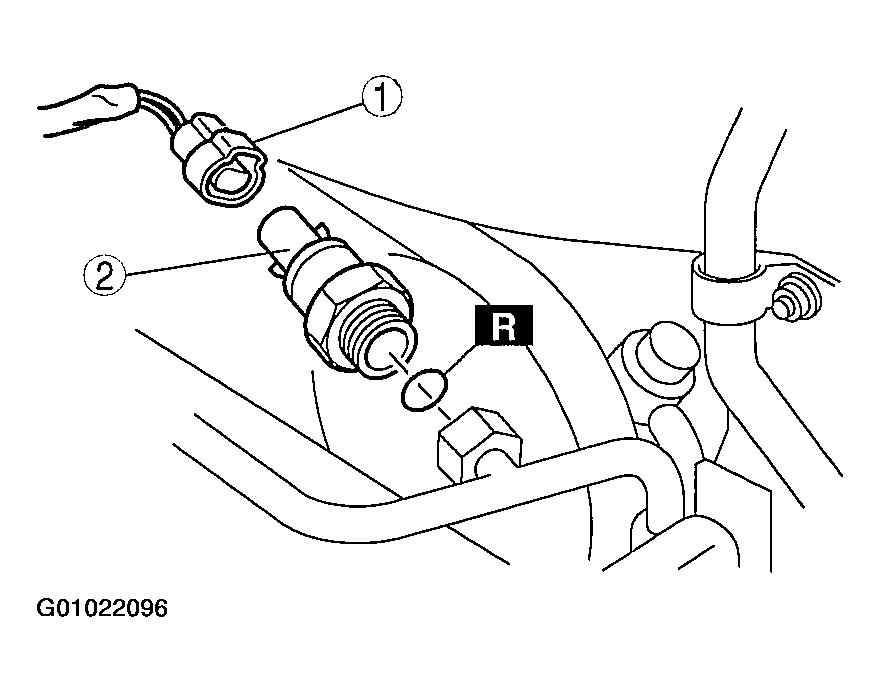

Fig 2: Removal Sequence Of Refrigerant Pressure Switch
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
