Torque Specifications

WARNING: This page is about a different car, the 2001 Mazda Millenia and 2001 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.
TORQUE SPECIFICATIONS

Application Ft. Lbs. (N.m)
A/C Compressor Bracket Bolt 28-38 (38-52)
Axle Shaft Bracket-To-Cylinder Block Bolt 32-46 (43-62)
Baffle Plate Bolt 14-18 (19-24)
Camshaft Sprocket Bolt 91-97 (123-132)
Clutch Release Cylinder Bolt (M/T) 12-17 (16-23)
Connecting Rod Bolt
Step 1 16-20 (22-27)
Step 2 Additional 83-97 Degrees
Coolant Outlet Bolt 14-18 (19-24)
Crankshaft Pulley Bolt 116-122 (157-165)
Cylinder Head Bolt (1)
Step 1 17-19 (23-25)
Step 2 Additional 85-95 Degrees
Step 3 Additional 85-95 Degrees
Engine Mounts (2)
Millenia
Engine Crossmember Bolts 55-77 (75-104)
No. 1 Mount Stay Bracket Bolt/Nut 55-77 (75-104)
No. 1 Mount Stay
Bolt (3)
Nut 55-77 (75-104)
No. 2 Mount Nut 55-77 (75-104)
No. 3 Mount-To-Engine Bolt 32-44 (43-60)
No. 3 Mount Sub-Bracket Nut 55-77 (75-104)
No. 4 Mount Bracket Bolt 32-44 (43-60)
626
Engine Crossmember Bolts/Nuts 50-68 (68-92)
No. 1 Mount Bolt/Nut 55-77 (75-104)
No. 1 Mount Stay Bracket Bolt (3)
No. 2 Mount Nut 55-77 (75-104)
No. 3 Joint Bracket Nuts 56-76 (76-103)
No. 3 Mount Rubber Nuts 55-77 (75-104)
No. 4 Mount Bracket Bolt 44-59 (60-80)
No. 4 Mount Rubber Bolt 50-68 (68-92)
No. 4 Mount Through-Bolt 68-91 (92-123)
No. 5 Mount Rubber
Bolt 41-59 (56-80)
Nut 32-44 (44-60)
Exhaust Manifold Bolt/Nut 12-16 (16-22)
Flywheel/Flexplate Bolt 45-49 (61-66)
Friction Gear Nut 51-57 (69-77)
Front Exhaust Pipe-To-Exhaust Manifold Nut 28-38 (38-52)
Front Suspension Crossmember Bolt 69-97 (94-132)
Fuel Rail Bolt 14-18 (19-24)
Generator Bracket Bolt 28-38 (38-52)
Intake Manifold Bolt/Nut 14-18 (19-24)
Knock Sensor 15-25 (20-34)
Lower Control Arm Ball Joint-To-Steering Knuckle Through Bolt 32-43 (43-58)
Lower Cylinder Block Bolt (4)
Bolt "A"
Step 1 17-19 (23-26)
Step 2 Additional 75-85 Degrees
Step 3 Additional 75-85 Degrees
Bolt "B"
Step 1 17-19 (23-26)
Step 2 Additional 65-75 Degrees
Step 3 Additional 65-75 Degrees
Bolt "C"
Step 1 13-15 (18-20)
Step 2 Additional 55-65 Degrees
Step 3 Additional 55-65 Degrees
Bolt "D" 14-18 (19-24)
No. 1 Idler Pulley Bolt 28-38 (38-52)
No. 2 Idler Pulley Bolt 28-38 (38-52)
Oil Cooler-To-Oil Filter Adapter Nut 19-25 (25-34)
Oil Pan Bolt
Long Bolt 14-18 (19-24)
Short Bolt (5)
Oil Pan Drain Plug 22-30 (30-41)
Oil Pump Bolt 14-18 (19-24)
Power Steering Pump Bracket Bolt (6)
Power Steering Pump Pulley Nut 37-43 (50-58)
Relief Valve Plug 42-50 (57-68)
Shift Rod-To-Transaxle Bolt (M/T) 12-17 (16-23)
Spark Plug 11-16 (15-22)
Stabilizer Bar Link Nut 32-45 (43-61)
Stabilizer Rod-To-Transaxle Bolt (M/T) 23-34 (31-46)
Starter-To-Transaxle Case Bolt 24-34 (32-46)
Tensioner Pulley Bolt 28-32 (38-43)
Thermostat Housing 14-18 (19-24)
Throttle Body Bolt/Nut 14-18 (19-24)
Tie Rod End Nut
626 32-41 (43-56)
Millenia 41-59 (56-80)
Timing Belt Tensioner Bolt 14-18 (19-24)
Water Pump Bolt 14-18 (19-24)
Wheel Lug Nut 65-87 (88-118)
INCH Lbs. (N.m)
Air Pipe-To-Intake Manifold Bolt 71-97 (8-11)
Camshaft Bearing Cap Bolt (7) 100-125 (11-14)
Crankshaft Position Sensor Bracket Bolt 71-97 (8-11)
Cylinder Block Valley Cover Bolt 71-97 (8-11)
Fuel Injector Retainer Bolt 18-35 (2-4)
Oil Pump Body Cover Bolt 54-80 (6-9)
Pick-Up Tube Bolt 71-97 (8-11)
Pressure Regulator Bolt 62-89 (7-10)
Seal Plate Bolt 71-97 (8-11)
Timing Belt Cover Bolt 71-97 (8-11)
Valve Cover Bolt (8) 62-89 (7-10)
Water Pump Pulley Bolt 71-97 (8-11)
(1) Tighten bolts to specification in sequence. See Fig 1.
(2) See Fig 2 and Fig 3 .
(3) Tighten bolt to 61-87 INCH lbs. (7-10 N.m).
(4) Identify bolts and tighten bolts to specification in proper sequence. See Fig 4.
(5) Tighten bolts to 71-97 INCH lbs. (8-11 N.m).
(6) Tighten 2 upper bolts on front of bracket to 23-34 ft. lbs. (31-46 N.m). Tighten lower bolt on front of bracket to 14-19 ft. lbs. (19-25 N.m). Tighten bolt on rear of bracket-to-cylinder block to 24-33 ft. lbs. (33-45 N.m)
(7) Tighten bolts to specification in sequence. See Fig 5 or Fig 6 .
(8) Tighten bolts to specification in sequence. See Fig 7.

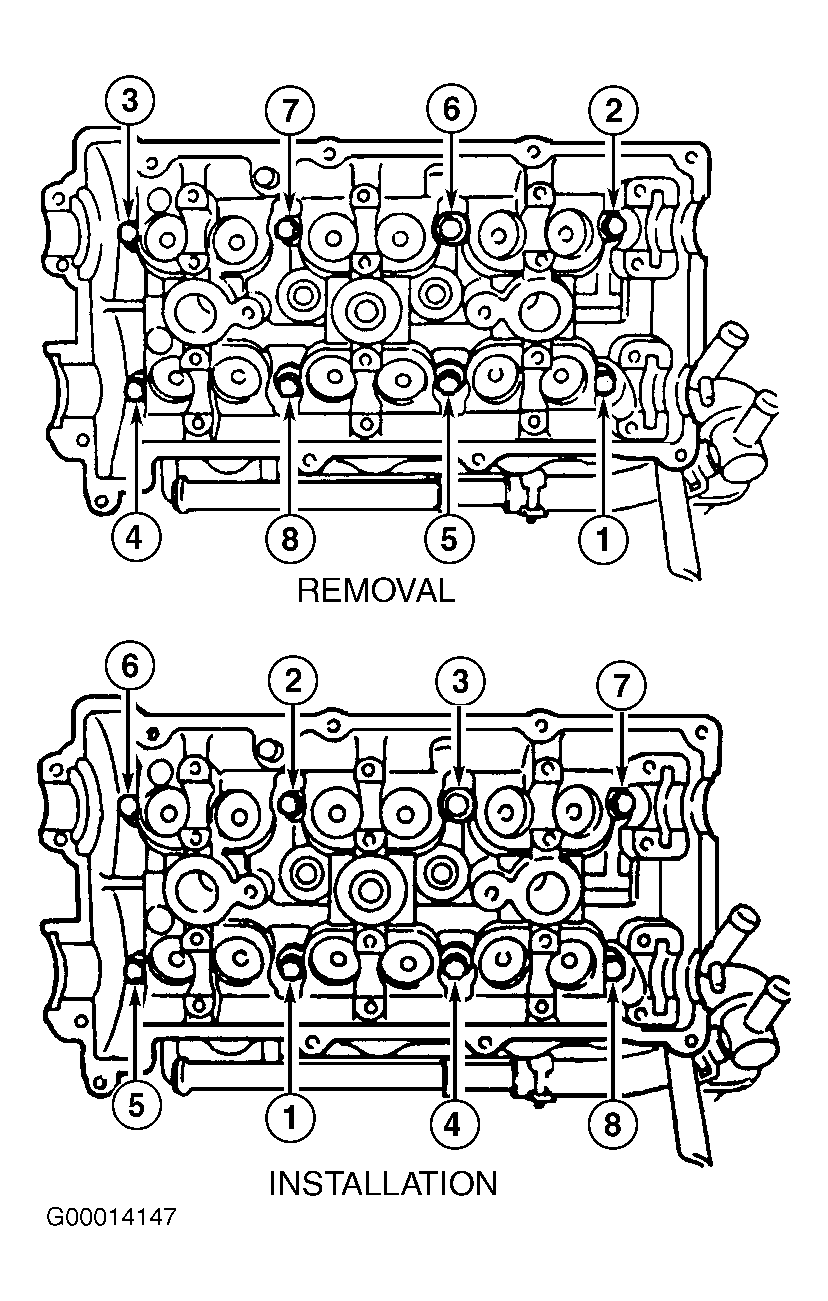

Fig 1: Cylinder Head Bolt Removal & Installation Sequence (Millenia & 626)
G00014147Courtesy of MAZDA MOTORS CORP.

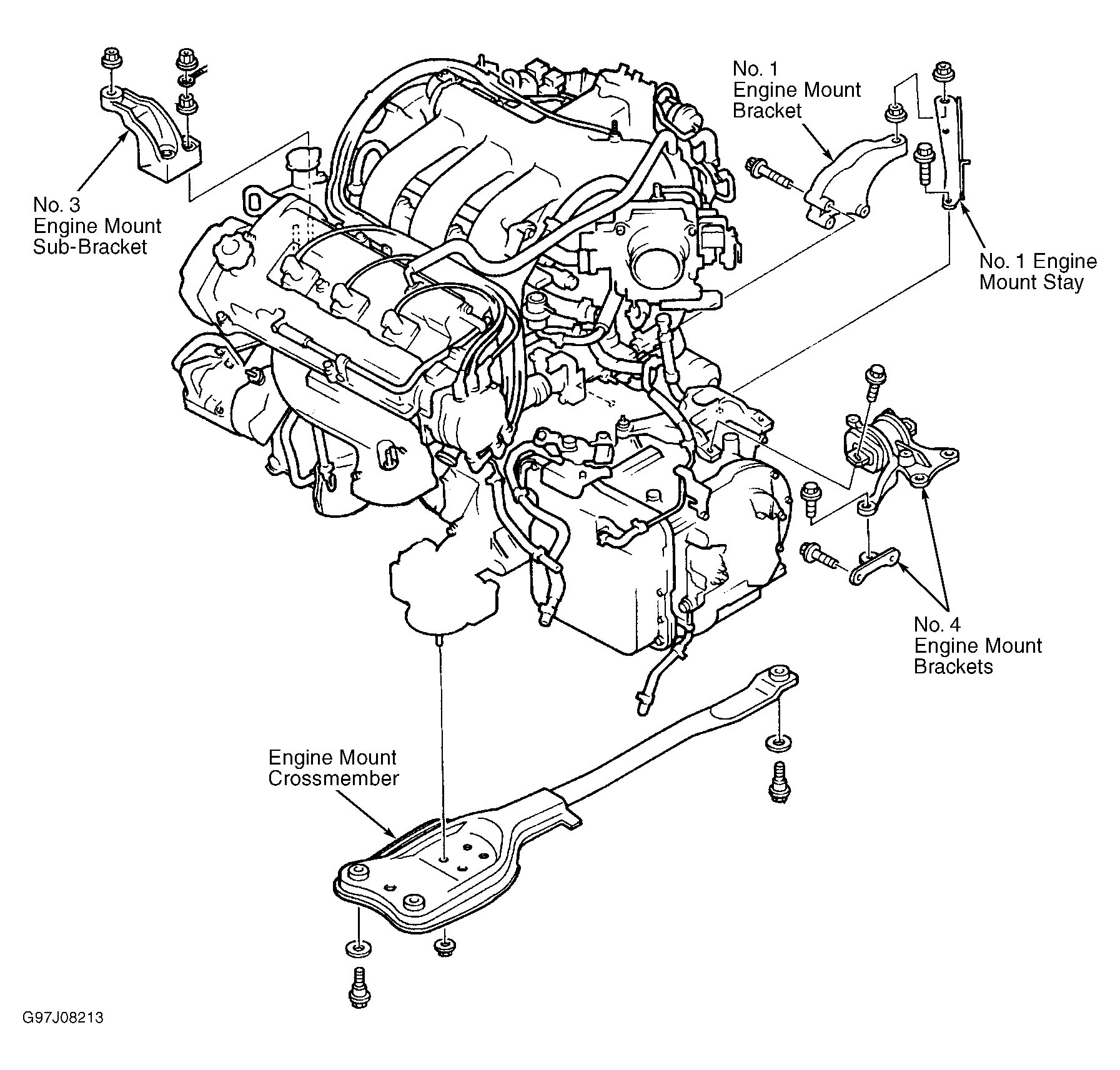

Fig 2: Identifying Engine Mounts (Millenia)
G97J08213Courtesy of MAZDA MOTORS CORP.

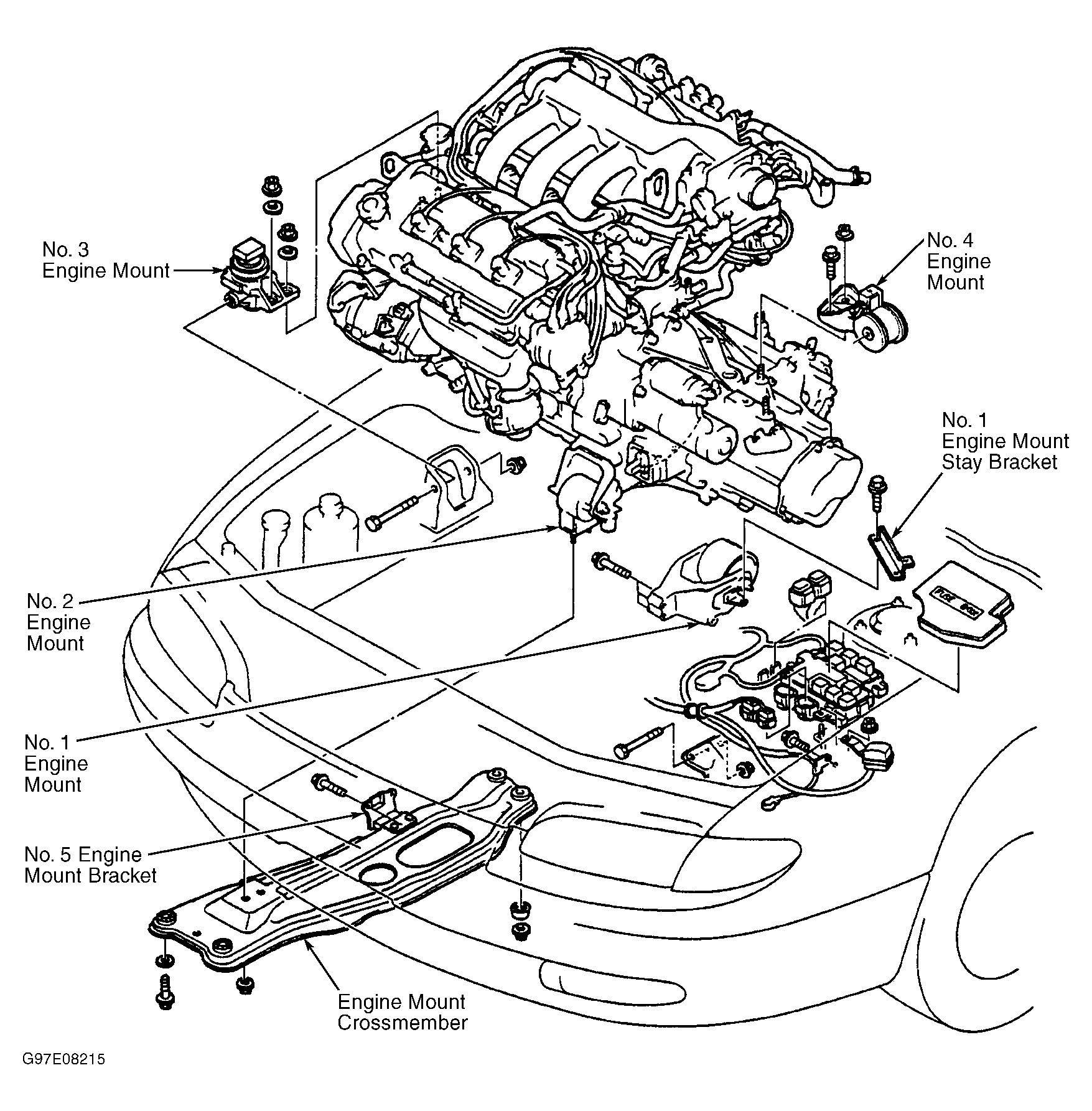

Fig 3: Identifying Engine Mounts (626)
G97E08215Courtesy of MAZDA MOTORS CORP.

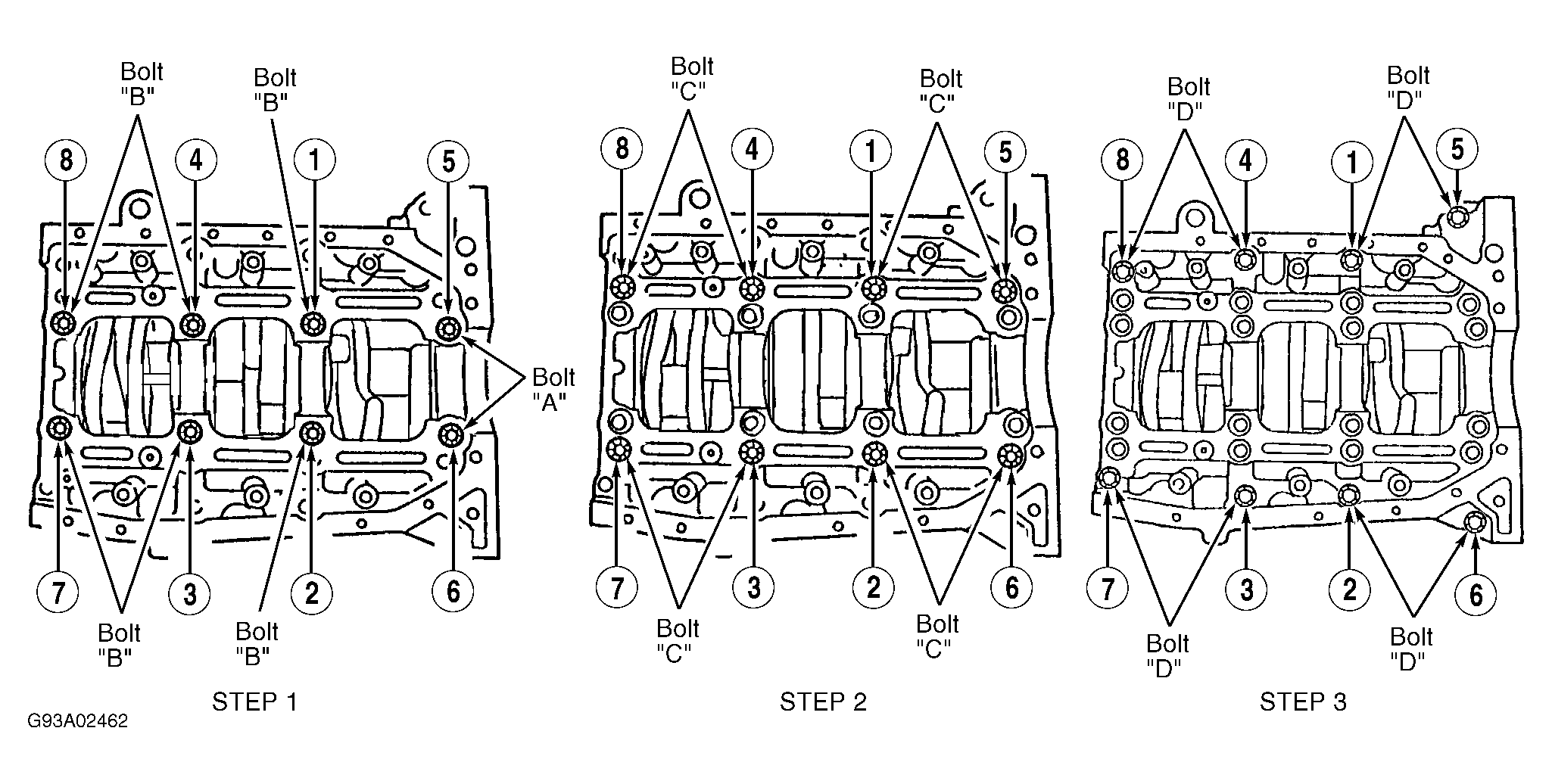

Fig 4: Identifying Lower Cylinder Block Bolt Location & Installation Sequence
G93A02462Courtesy of MAZDA MOTORS CORP.

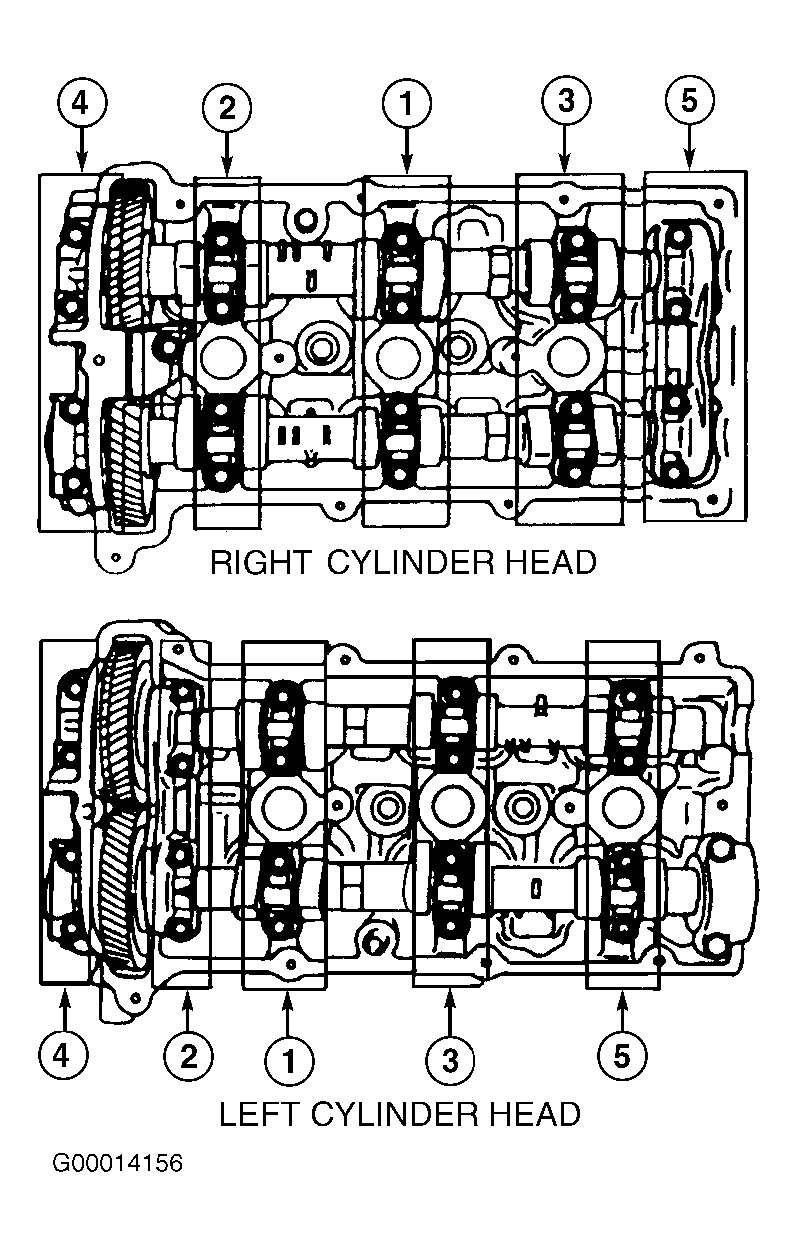

Fig 5: Camshaft Bearing Cap Bolt Tightening Sequence (Millenia)
G00014156Courtesy of MAZDA MOTORS CORP.

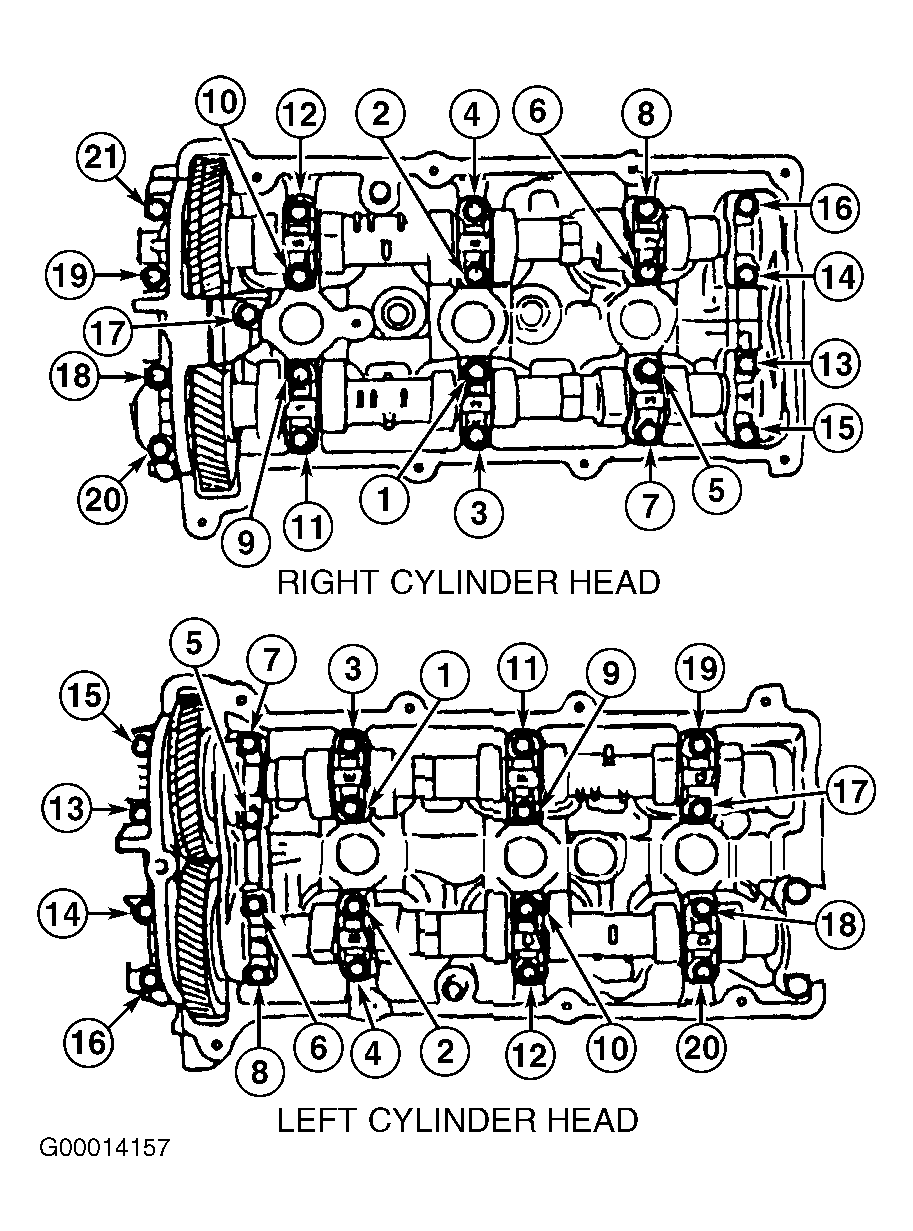

Fig 6: Camshaft Bearing Cap Bolt Tightening Sequence (626)
G00014157Courtesy of MAZDA MOTORS CORP.

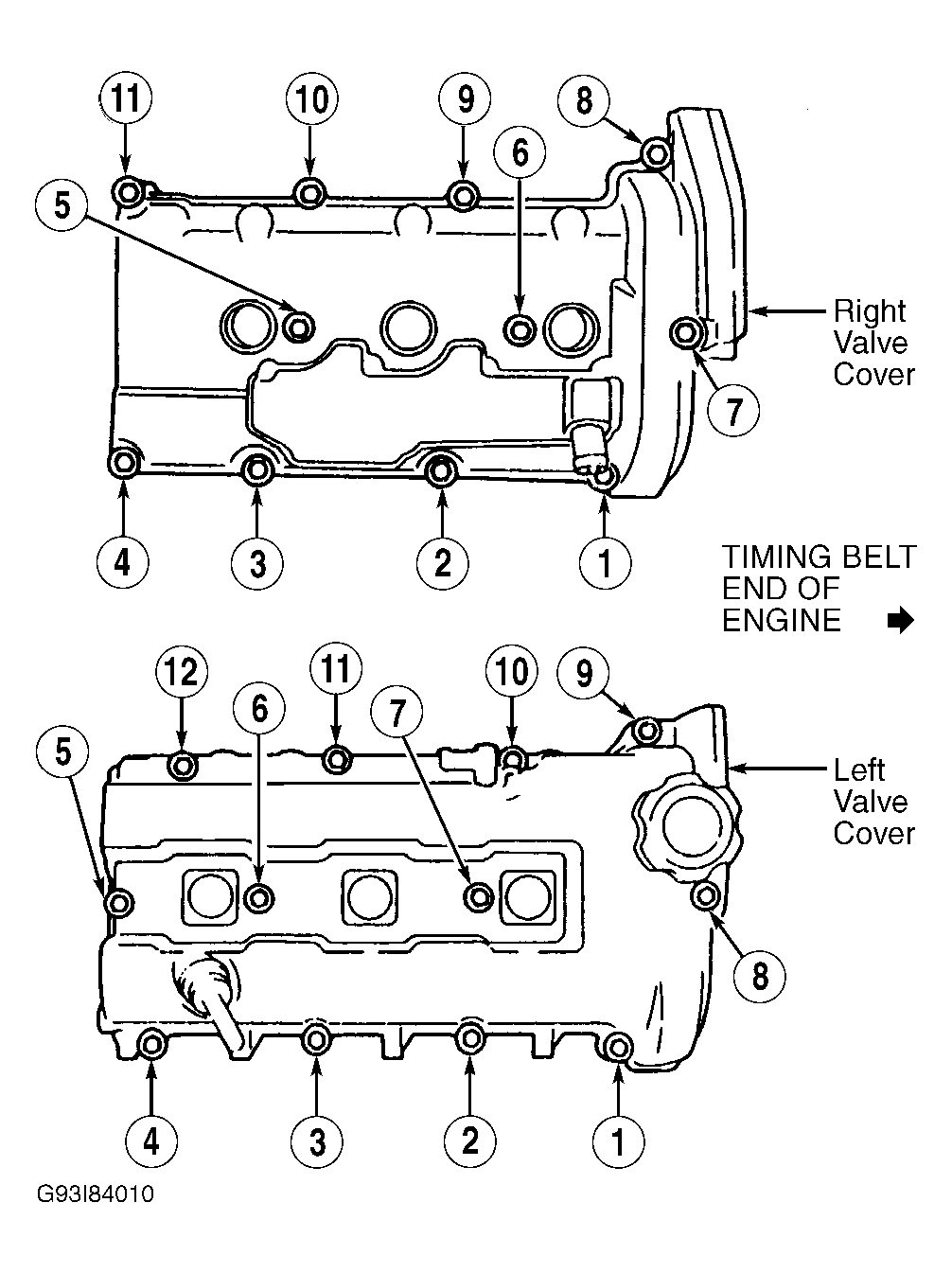

Fig 7: Valve Cover Bolt Tightening Sequence
G93I84010Courtesy of MAZDA MOTORS CORP.
