Back-Up Light Switch Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove in the order indicated in the illustration.
Install in the reverse order of removal.

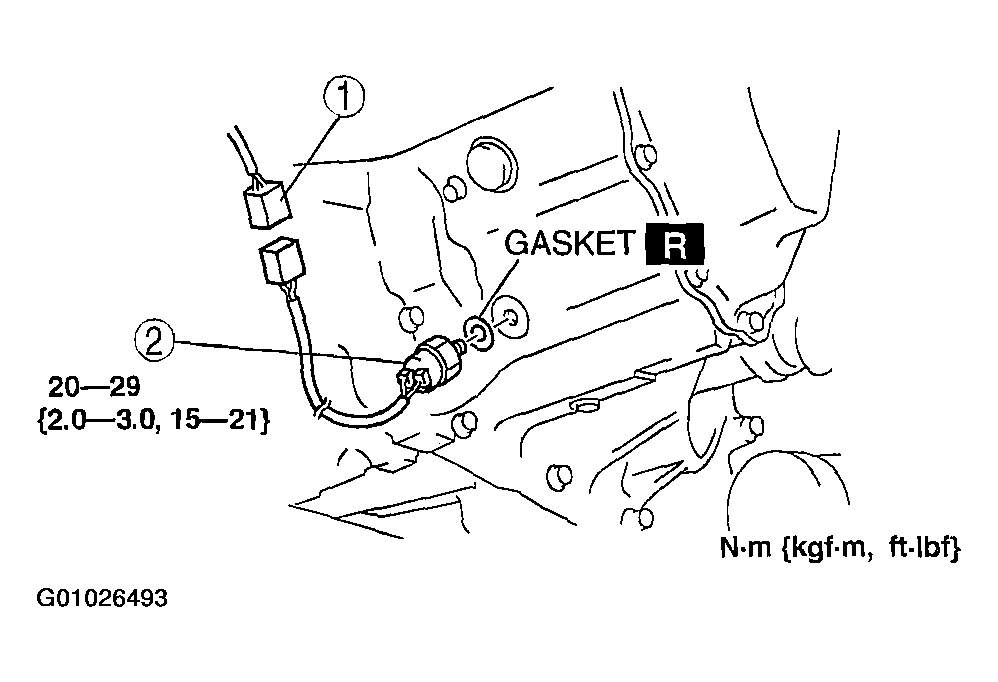

Fig 1: Removal Order Of Back-Up Light Switch

Courtesy of MAZDA MOTORS CORP.

Fig 2: Removing/Installing Back-Up Light Switch

Courtesy of MAZDA MOTORS CORP.
