Headlight Switch

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

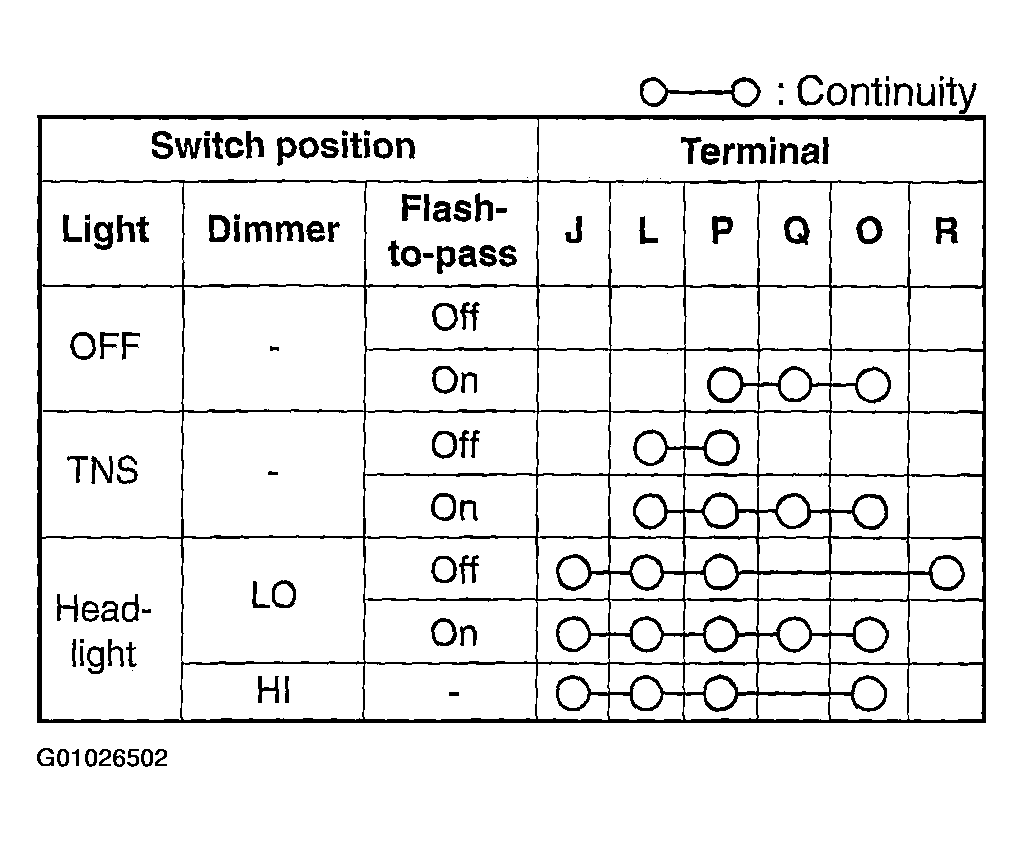

Fig 1: Light Switch Continuity Table - Headlight Switch

Courtesy of MAZDA MOTORS CORP.

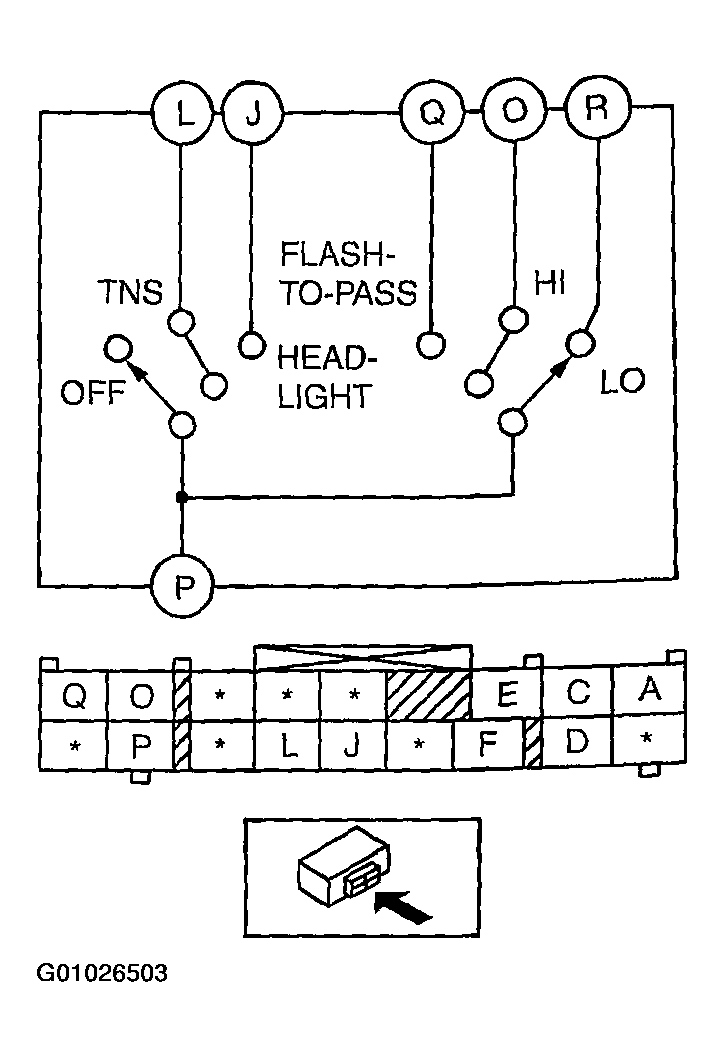

Fig 2: Identifying Light Switch Terminals Connection - Headlight Switch

Courtesy of MAZDA MOTORS CORP.
