Diagnostic procedure

WARNING: This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

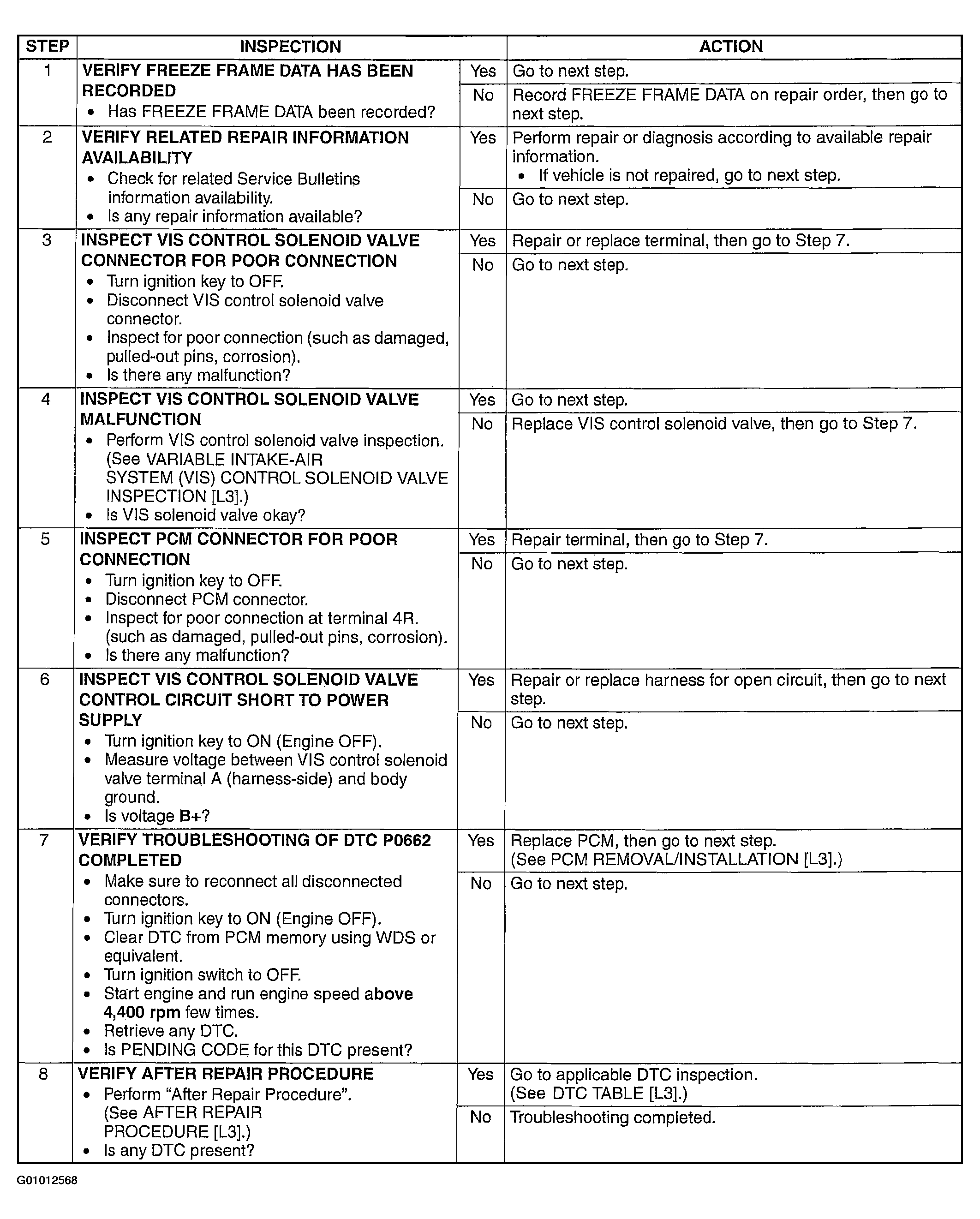

Fig 1: DTC P0662 - Diagnostic Procedure
G01012568Courtesy of MAZDA MOTORS CORP.
