Section 177 (On-Board Diagnostic [Engine Control System L3))
>>
DTC P2004: Variable Tumble Control System (VTCS) Shutter Valve Stuck Open
>>
Diagnostic procedure
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic procedure
WARNING:
This page is about a different car, the 2004 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

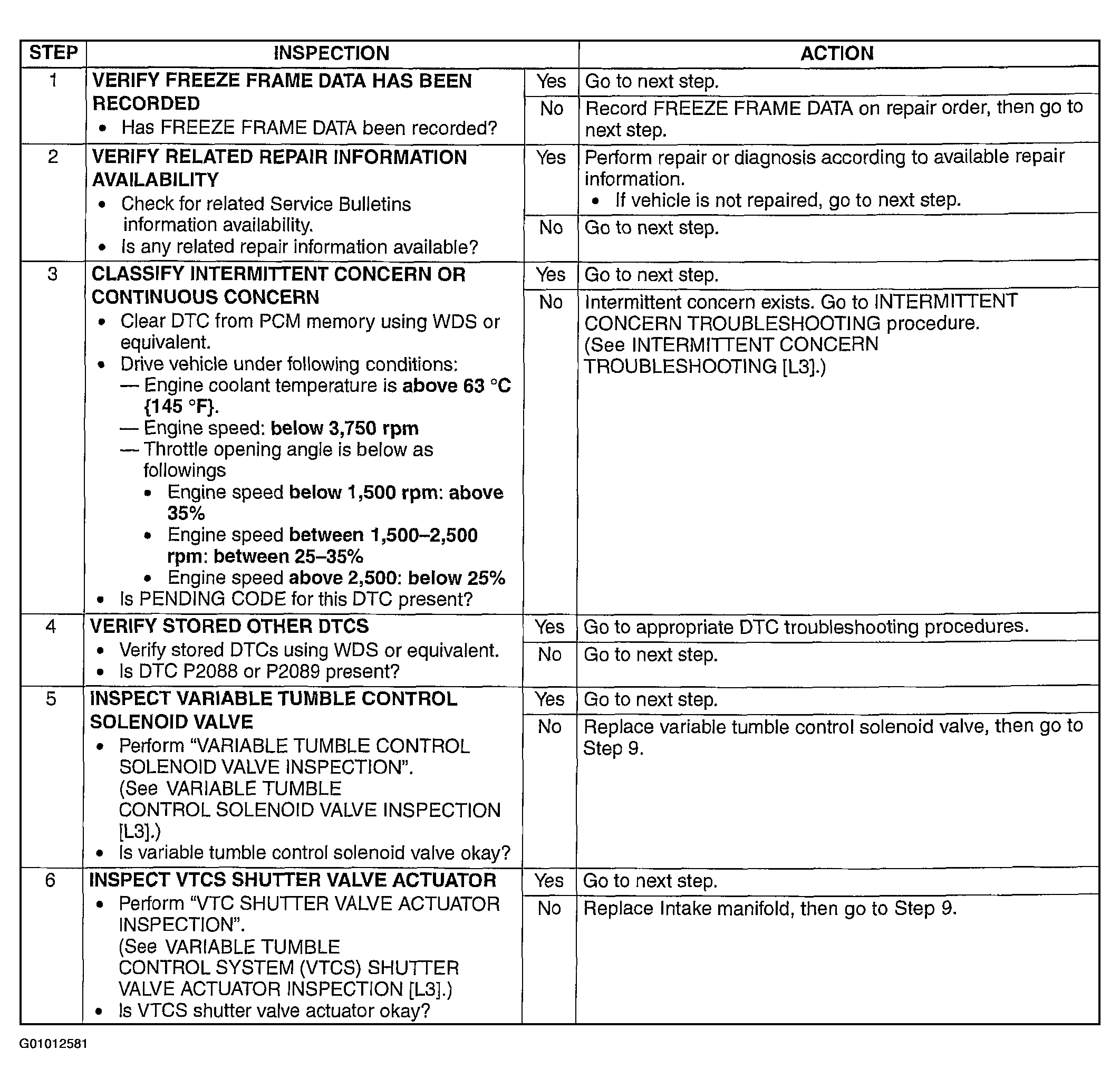

Fig 1: DTC P2004 - Diagnostic Procedure (Steps 1-6)
Courtesy of MAZDA MOTORS CORP.

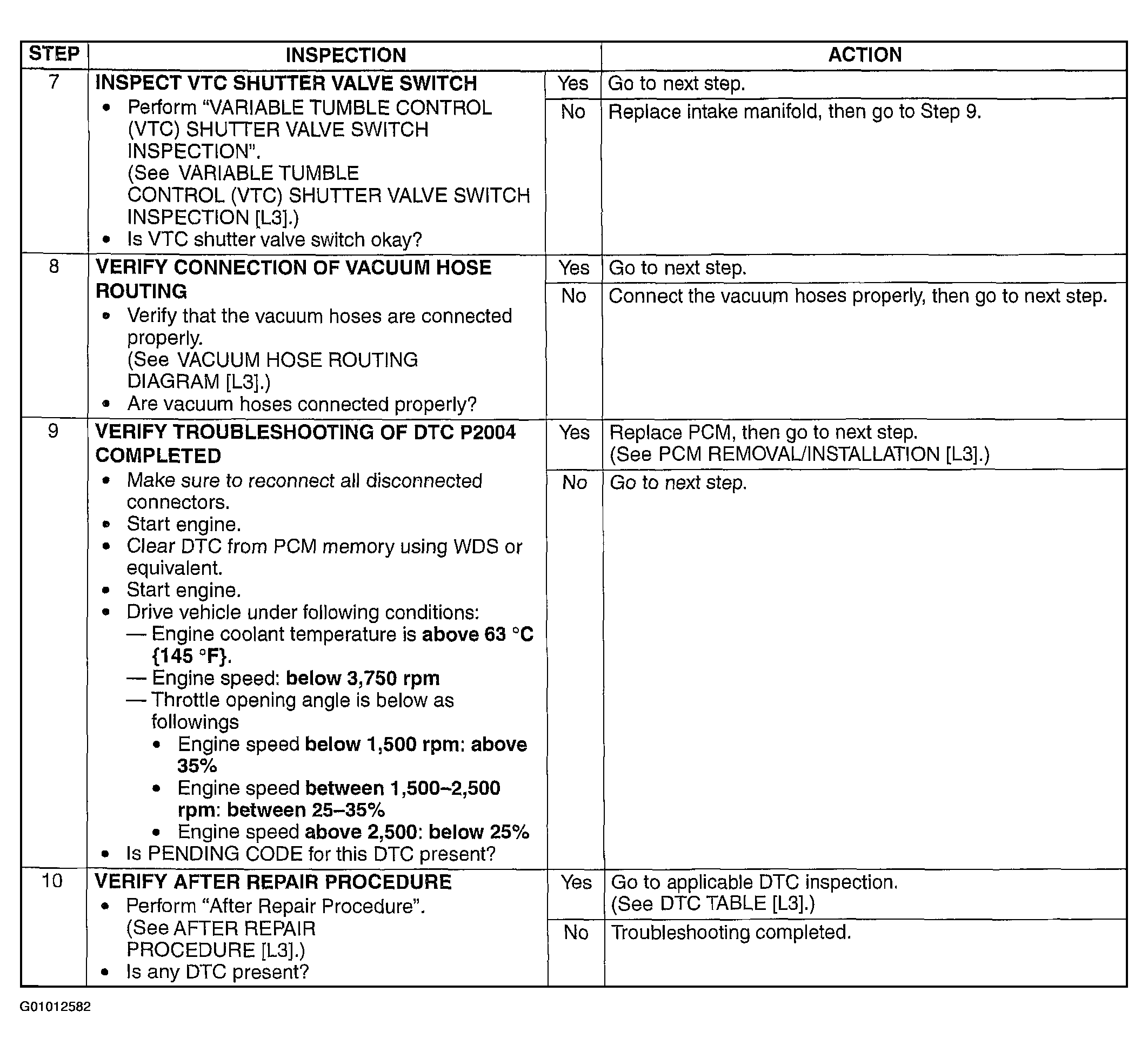

Fig 2: DTC P2004 - Diagnostic Procedure (Steps 7-10)
Courtesy of MAZDA MOTORS CORP.
