Wheel Alignment Pre-Inspection
WARNING: This page is about a different car, the 2004 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
- Inspect the tire inflation, and adjust to the recommended pressure if necessary.
- Inspect the front wheel bearing play and correct if necessary. (See WHEEL BEARING PLAY INSPECTION .)
- Inspect the wheel and tire runouts. (See SUSPENSION TECHNICAL DATA .)
- Inspect the ball joints and steering linkage for excessive looseness.
- Shake the vehicle to inspect the operation of the shock absorbers.NOTE:
- The vehicle must be on level ground and unloaded.
- Unloaded... Fuel tank is full. Engine coolant and engine oil are at specified level, Spare tire, jack and tools are in designated position.

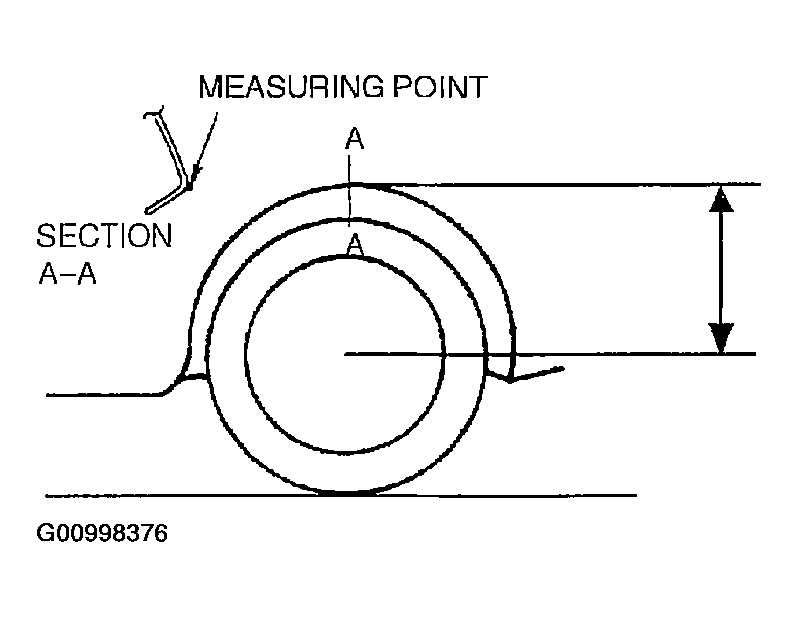

- Measure the height from the center of the wheel to the fender brim. The difference between the left and right measurement must not exceed 10 mm {0.39 in} .
