Cruise Control Switch Inspection

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION .)
Disconnect the cruise control switch connector.
Inspect for resistance and continuity between the cruise control switch terminals using an ohmmeter.
- If not as specified, replace the cruise control switch.

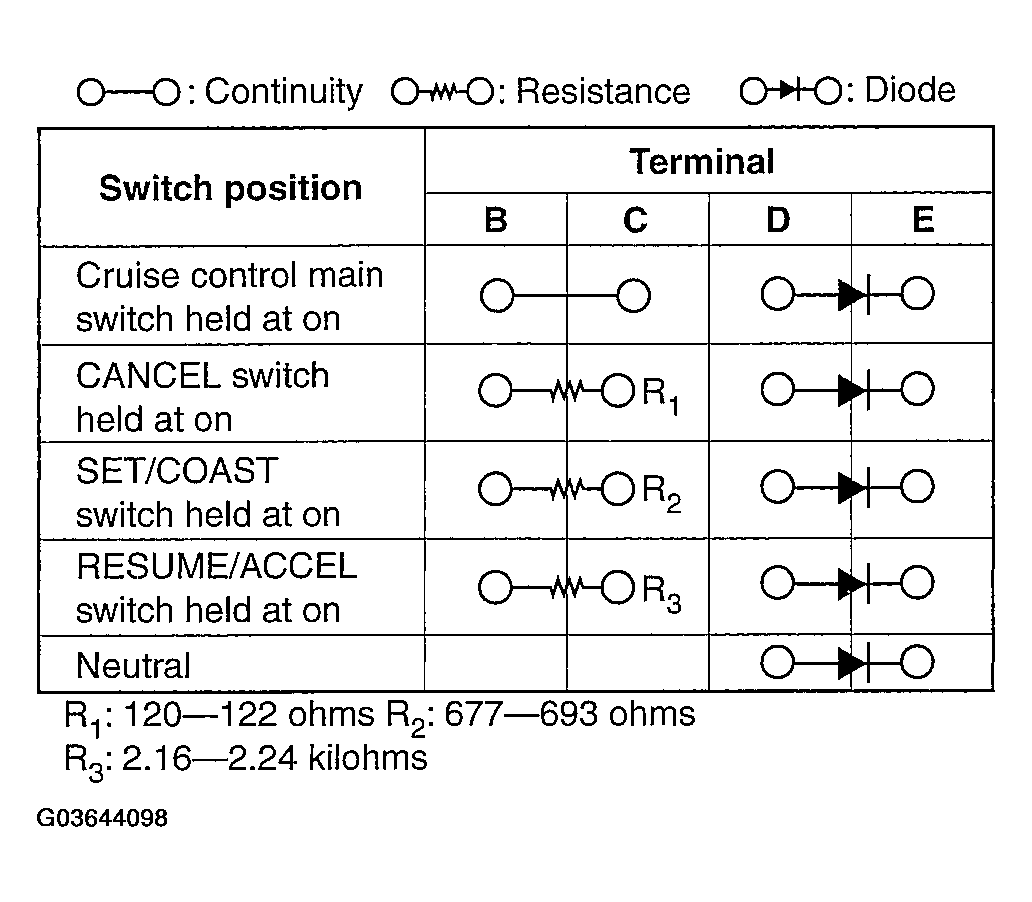

  Fig 1: Identifying Resistance And Continuity Chart
  Courtesy of MAZDA MOTORS CORP.

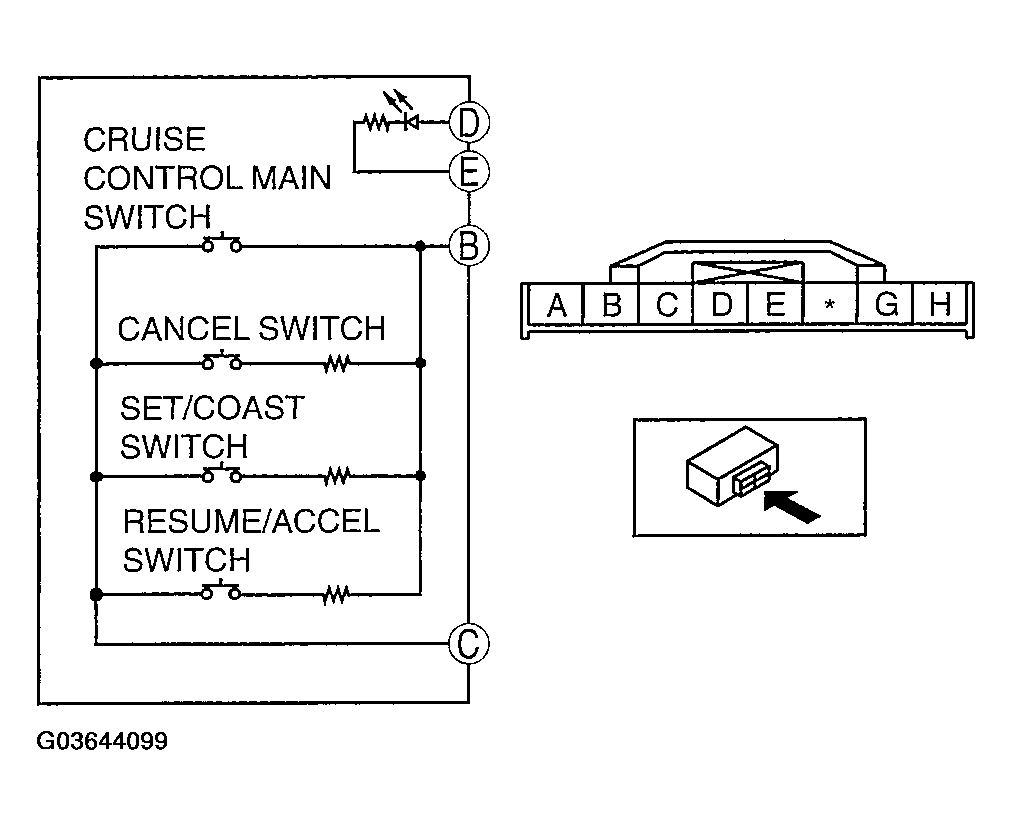

  Fig 2: Identifying Cruise Control Main Switch
  Courtesy of MAZDA MOTORS CORP.
