Cruise Control Switch Inspection

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the driver-side air bag module. (See DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION [STANDARD DEPLOYMENT CONTROL SYSTEM] , DRIVER-SIDE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM] .)
Disconnect the audio control switch connector.
Measure the resistance and inspect for continuity between the cruise control switch terminals using a tester.
- If not as specified, replace the cruise control switch.

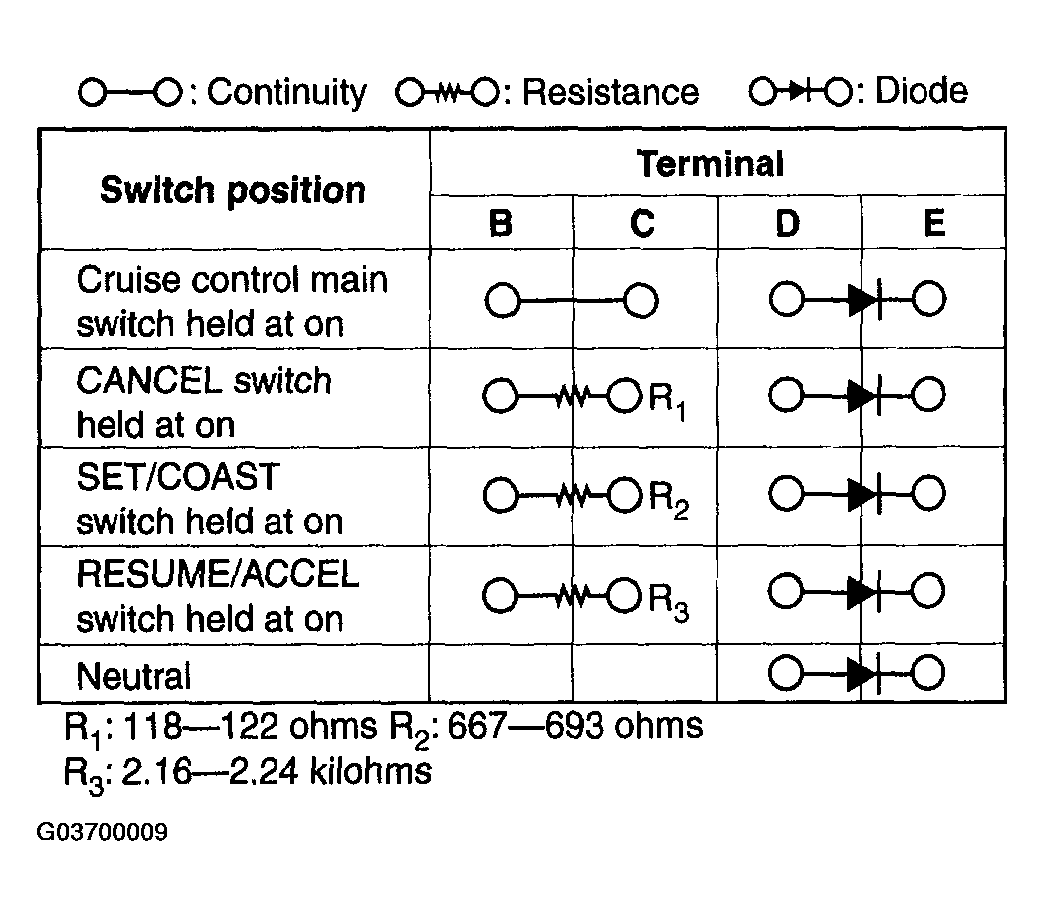

Fig 1: Measuring Resistance And Inspect For Continuity Between Cruise Control Switch Terminals (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

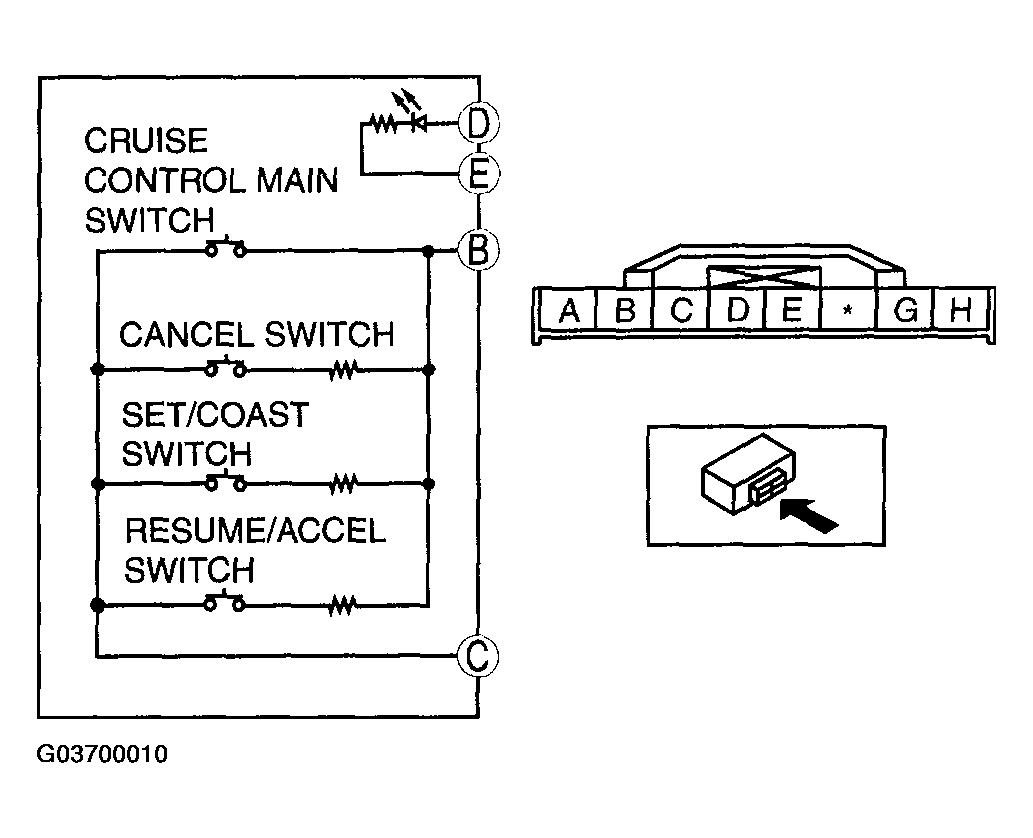

Fig 2: Measuring Resistance And Inspect For Continuity Between Cruise Control Switch Terminals (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
