To Determine If The Sensor Is Functioning

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Start the engine.
  2. Turn the A/C switch on.
  3. Turn the front fan switch on.
  4. Connect the positive (+) and negative (-) probes of the tester to terminal A and terminal C of the thermosensor respectively. (The wiring harness connector must be connected to the thermosensor connector.)
  5. Inspect the voltage as shown below.
    • If there is any malfunction, inspect on/off points of the thermosensor.
    Magnetic clutch Voltage (V)
    On B+
    Off 0

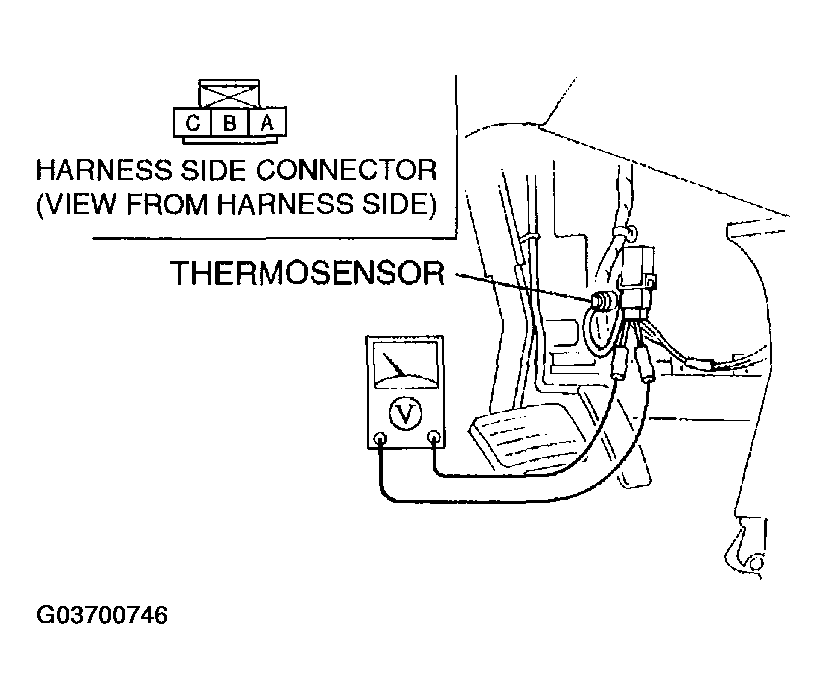

    Fig 1: Inspecting Thermosensor Voltage
    G03700746Courtesy of MAZDA MOTORS CORP.
