Combination Switch Disassembly/Assembly

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Disassemble in the order indicated in the table.

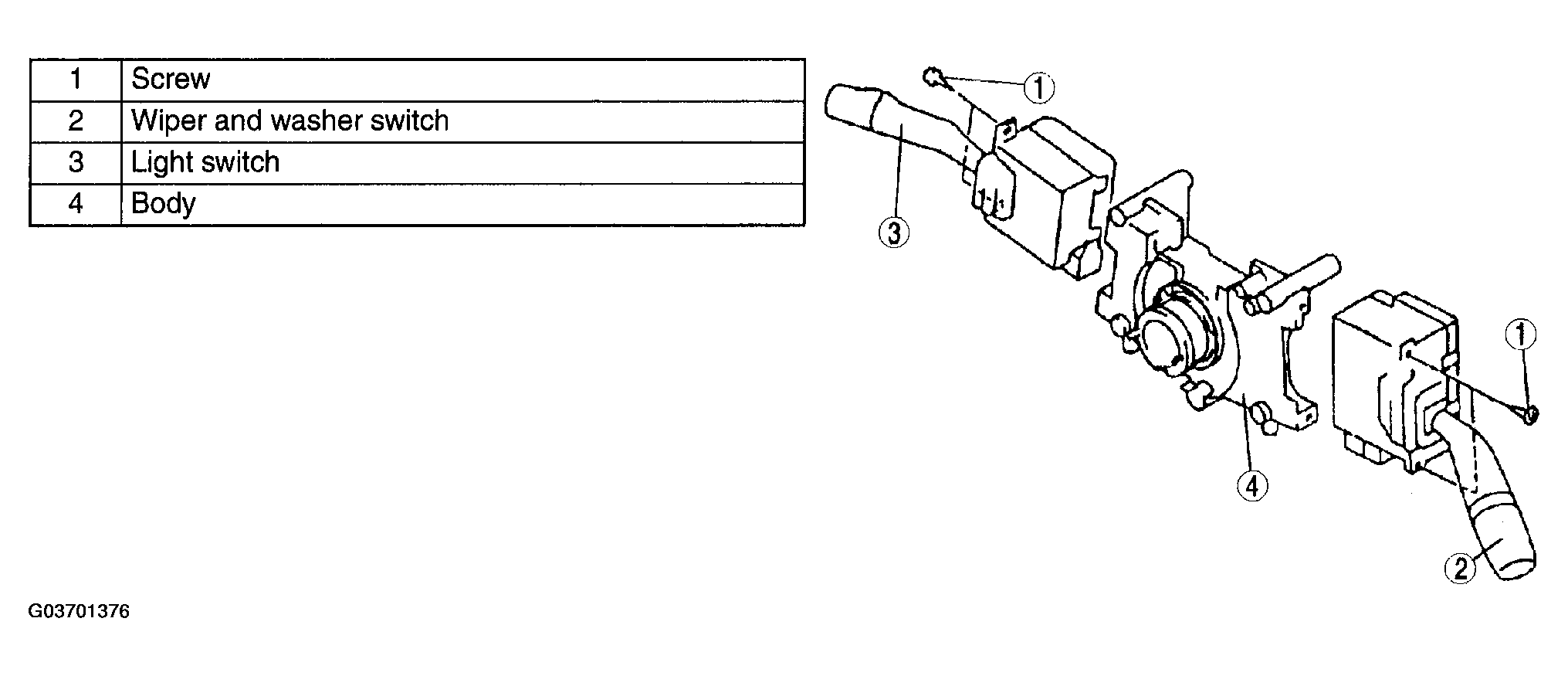

Fig 1: Disassembling Combination Switch
Courtesy of MAZDA MOTORS CORP.
Assemble in the reverse order of disassembly.
