Flasher Control Module Removal/Installation
WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- Because the lock section of the control module is damaged easily, do not remove the control module from the bracket unless replacement is necessary. Always perform an inspection of the flasher control module before removal.
- Disconnect the negative battery cable.

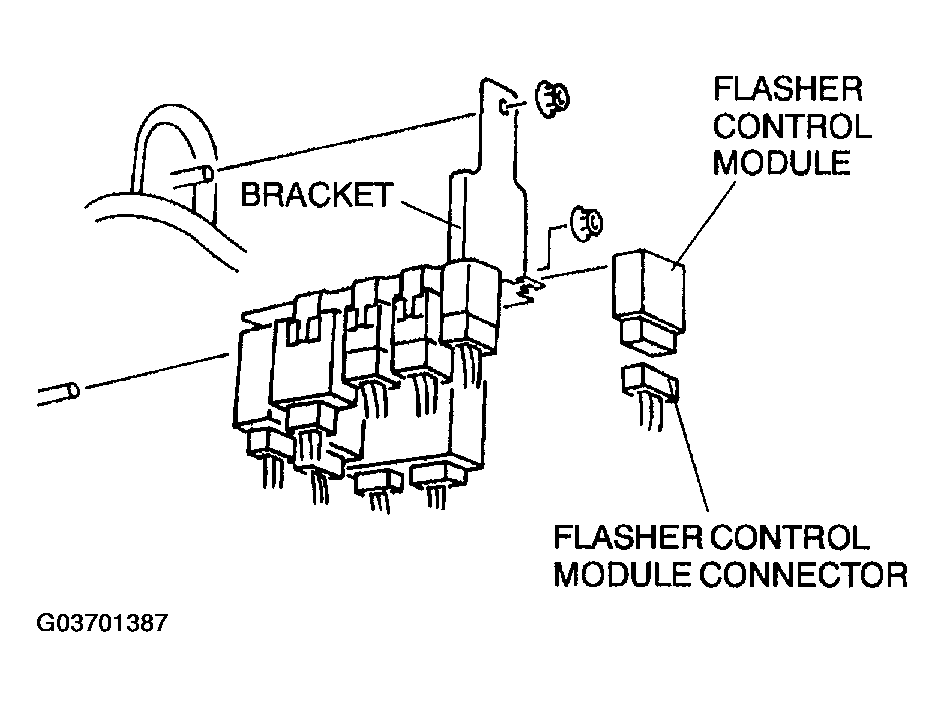

- Remove the bracket.
- Disconnect the flasher control module connector.
- Remove the flasher control module by prying the lock section of the upper part with a flathead screwdriver.
- Install in the reverse order of removal.
