Map Light Inspection

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

Remove the map light. (See MAP LIGHT REMOVAL/INSTALLATION .)
Inspect for continuity between the map light terminals using an ohmmeter.
- If not as specified, replace the map light.
Fig 1: MAP Light Continuity Chart
Courtesy of MAZDA MOTORS CORP.

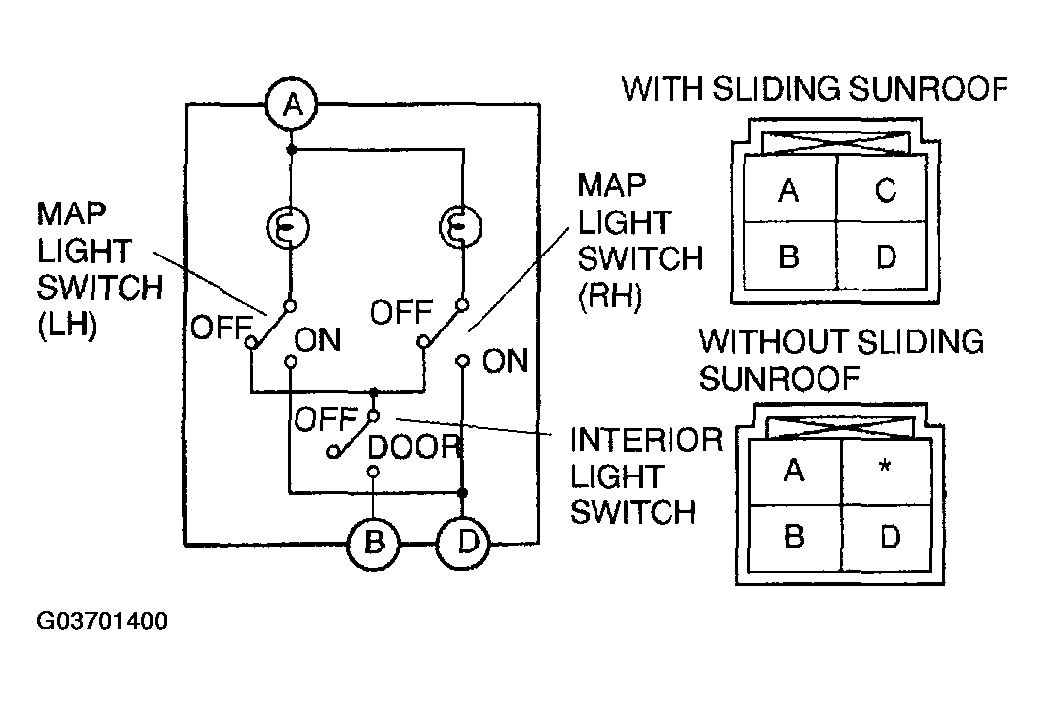

Fig 2: Inspecting MAP Light Connector Terminals
Courtesy of MAZDA MOTORS CORP.
