Caster Adjustment

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Adjust the caster before adjusting the camber.

Loosen the front and/or rear cam nuts.

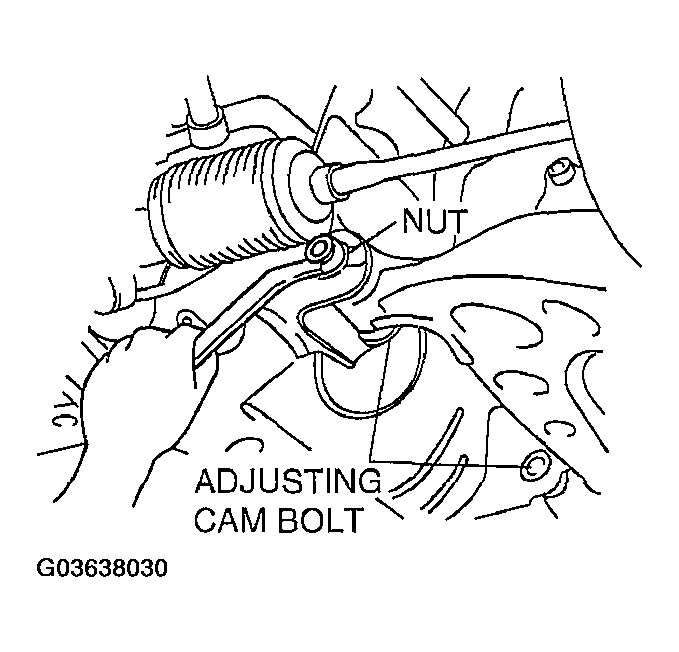

Fig 1: Loosening Front And Rear Cam Nuts
Courtesy of MAZDA MOTORS CORP.

Turn the front and/or rear adjusting cam bolts equally to provide the correct caster angle.

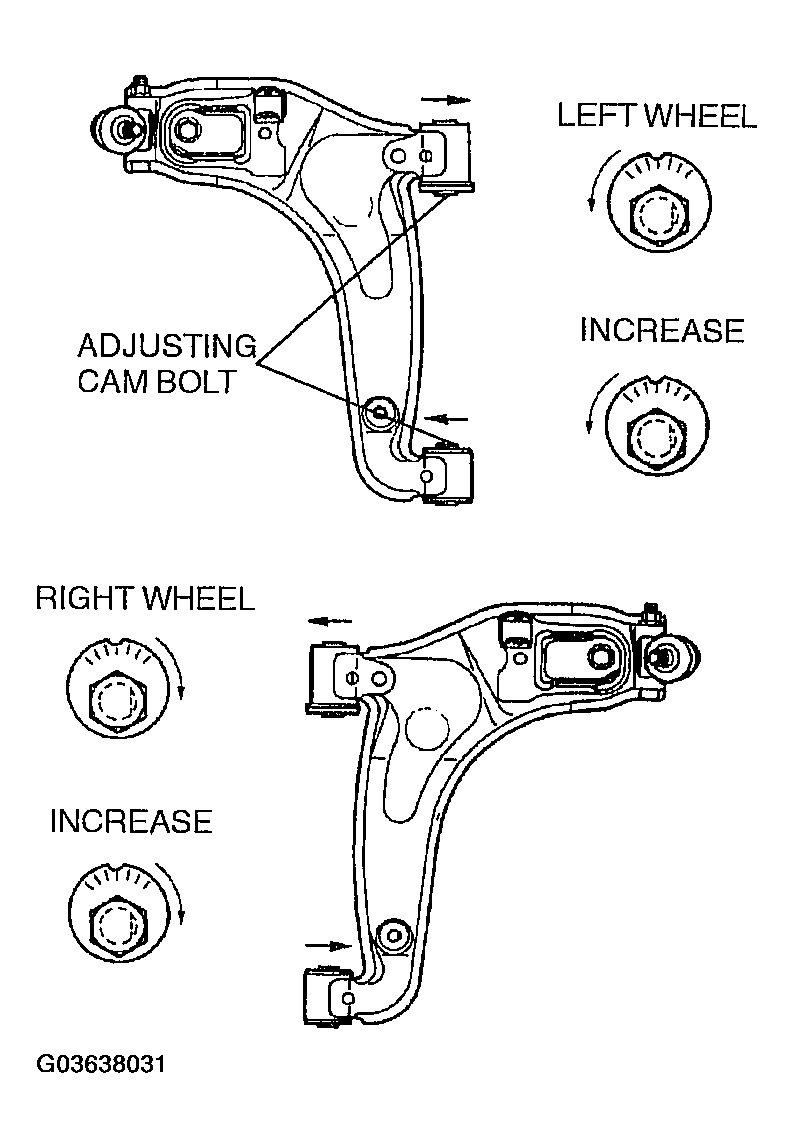

Fig 2: Turning Front And/Or Rear Adjusting Cam Bolts Equally To Provide Correct Caster Angle

Courtesy of MAZDA MOTORS CORP.

CASTER ADJUSTING

Caster	Left wheel		Right wheel
Caster	Front cam	Rear cam	Front cam	Rear cam
Increase	Counterclockwise	Counterclockwise	Clockwise	Clockwise
Decrease	Clockwise	Clockwise	Counterclockwise	Counterclockwise

NOTE:

Turning the front cam one graduation on the scale changes the caster angle about 25' and the camber about 29' . Turning the rear cam one graduation changes the caster angle about 25' and the camber about 2' .

Adjust the camber and the toe-in.
