Steering Column: Reassembly

Grease steering shaft, bushings and bearings. Use NEW shear screws on steering lock assembly. On Millennia, Protege and 626, tighten steering shaft assembly bolts in proper sequence. See Fig 1 -Fig 3 . To complete reassembly, reverse disassembly procedure.

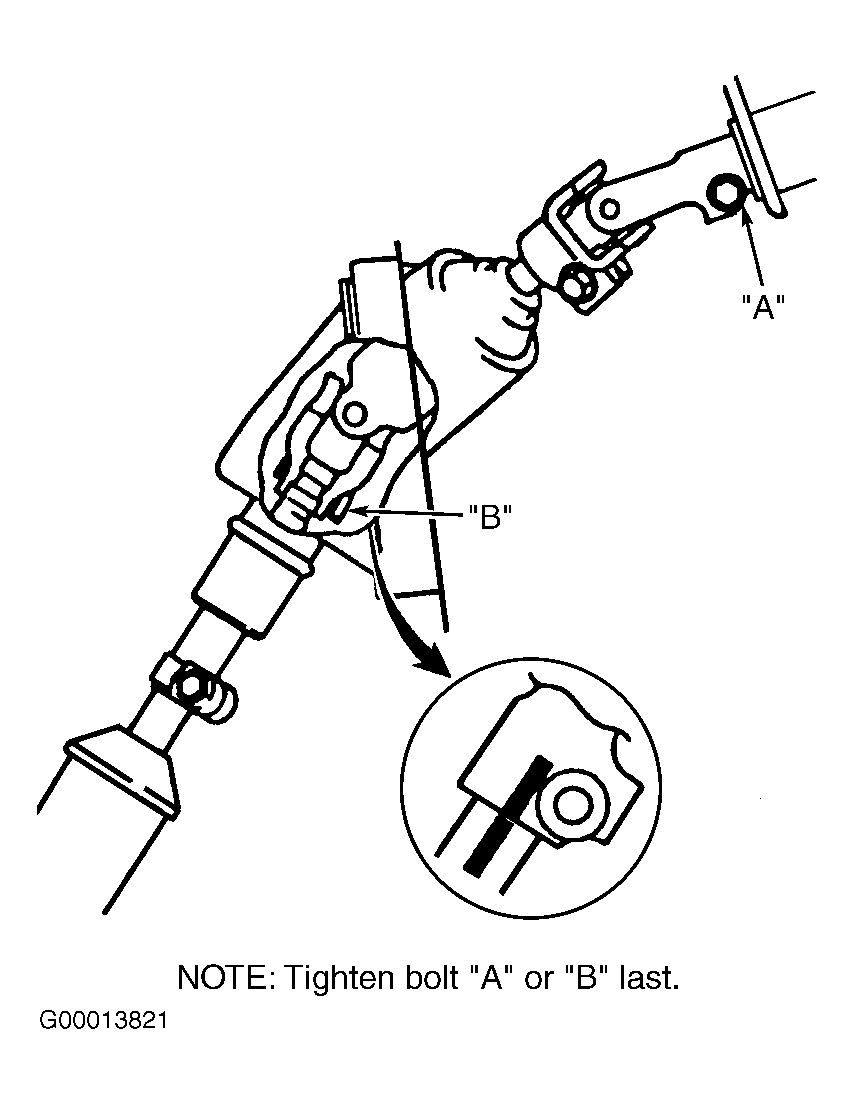

Fig 1: Tightening Steering Shaft Assembly Bolts (Millenia)

Courtesy of MAZDA MOTORS CORP.

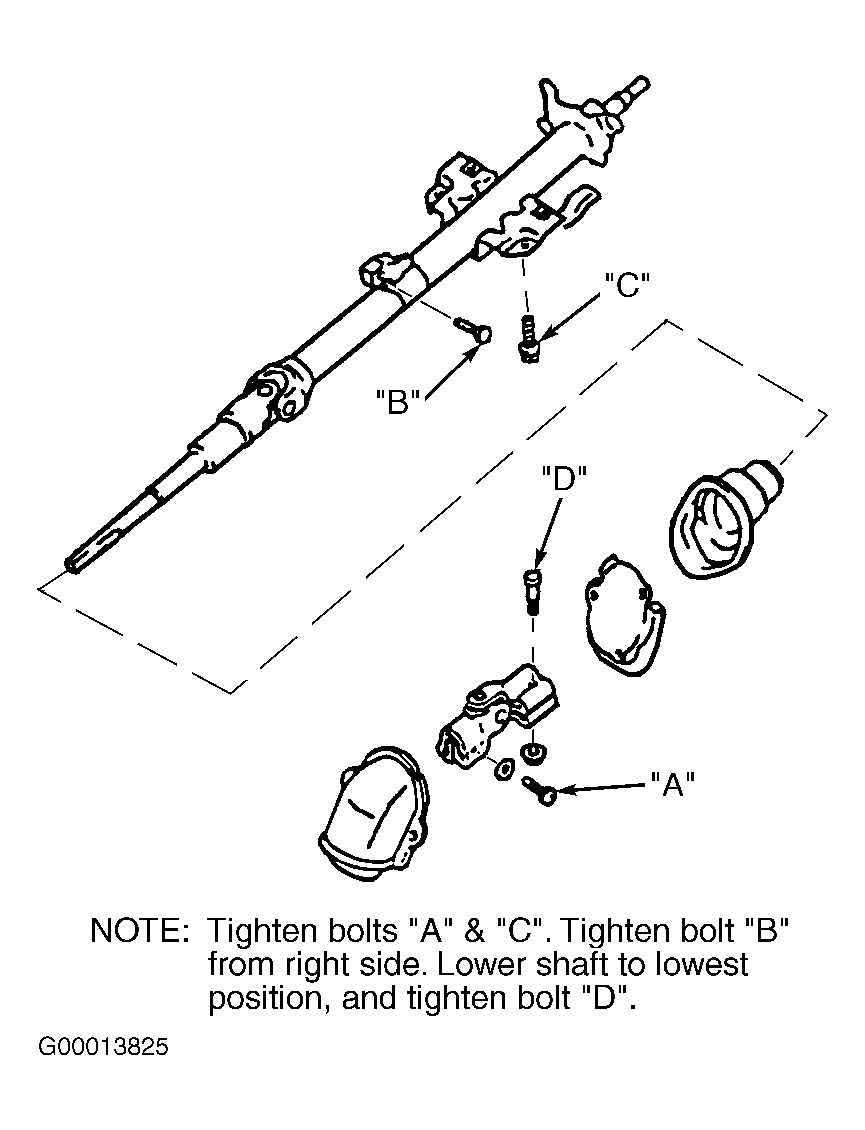

Fig 2: Tightening Steering Shaft Assembly Bolts (Protege)

Courtesy of MAZDA MOTORS CORP.

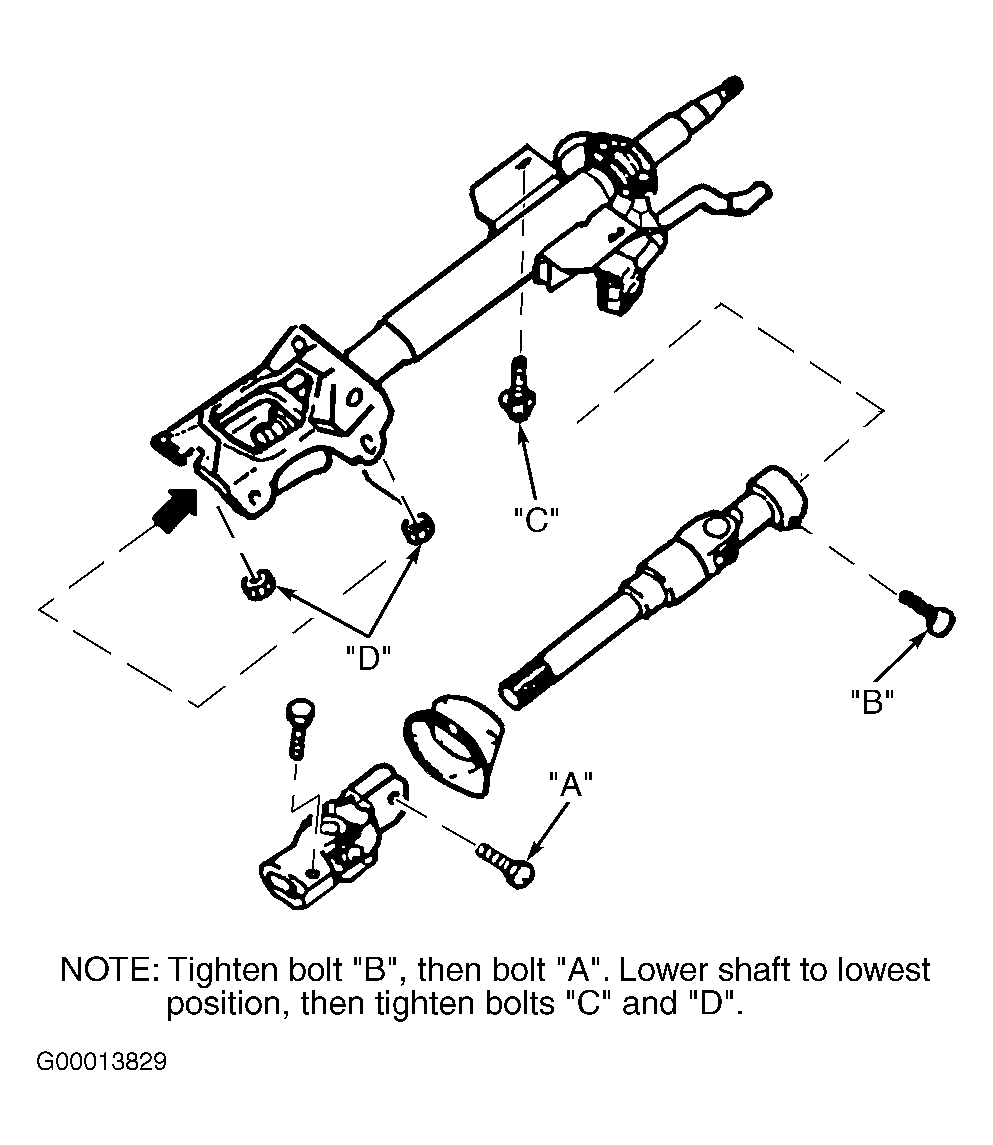

Fig 3: Tightening Steering Shaft Assembly Bolts (626)

Courtesy of MAZDA MOTORS CORP.
