Vehicle Speed Sensor

Vehicle Speed Sensor (VSS) is a magnetic pick-up that is mounted to transaxle case and driven by gear on differential. Pulse signals are sent through speedometer (also known as speedometer sensor) in combination meter to PCM.

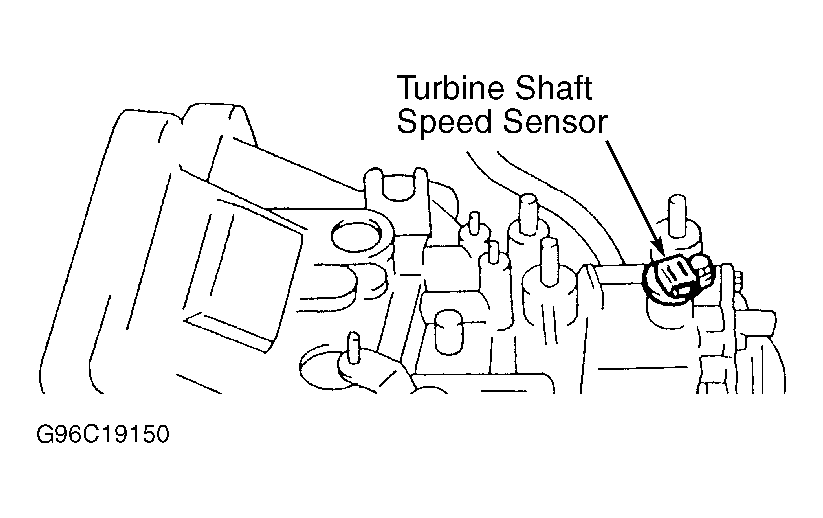

Fig 1: Locating Turbine Speed Sensor (Typical)

Courtesy of MAZDA MOTORS CORP.
