Dust Boot Installation Note
WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
- Wipe the grease off the ball joint stud.
- Fill the inside of the new dust boot with grease.

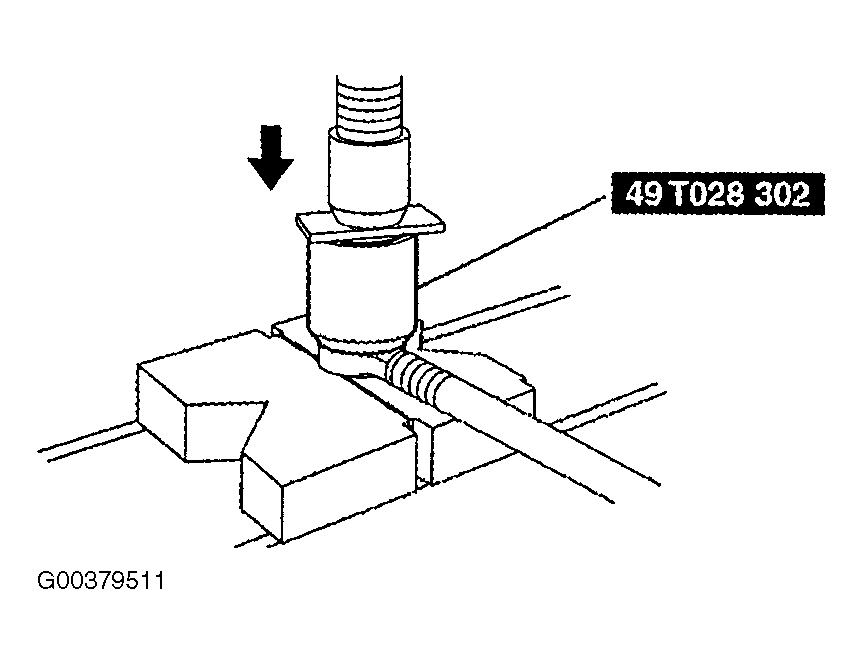

- Using the SST , install the dust boot to the ball joint.
Courtesy of MAZDA MOTORS CORP.
- Wipe off the excess grease.
