Toe Control Link Ball Joint Installation Note
WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

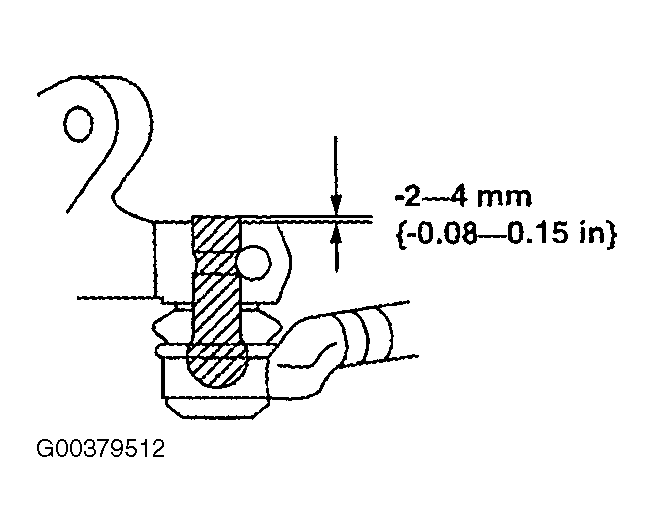

Install the toe control link ball joint so that the ball joint stud projection is within -2-4 mm (-0.08-0.15 in).
Courtesy of MAZDA MOTORS CORP.
