Abs Control Module

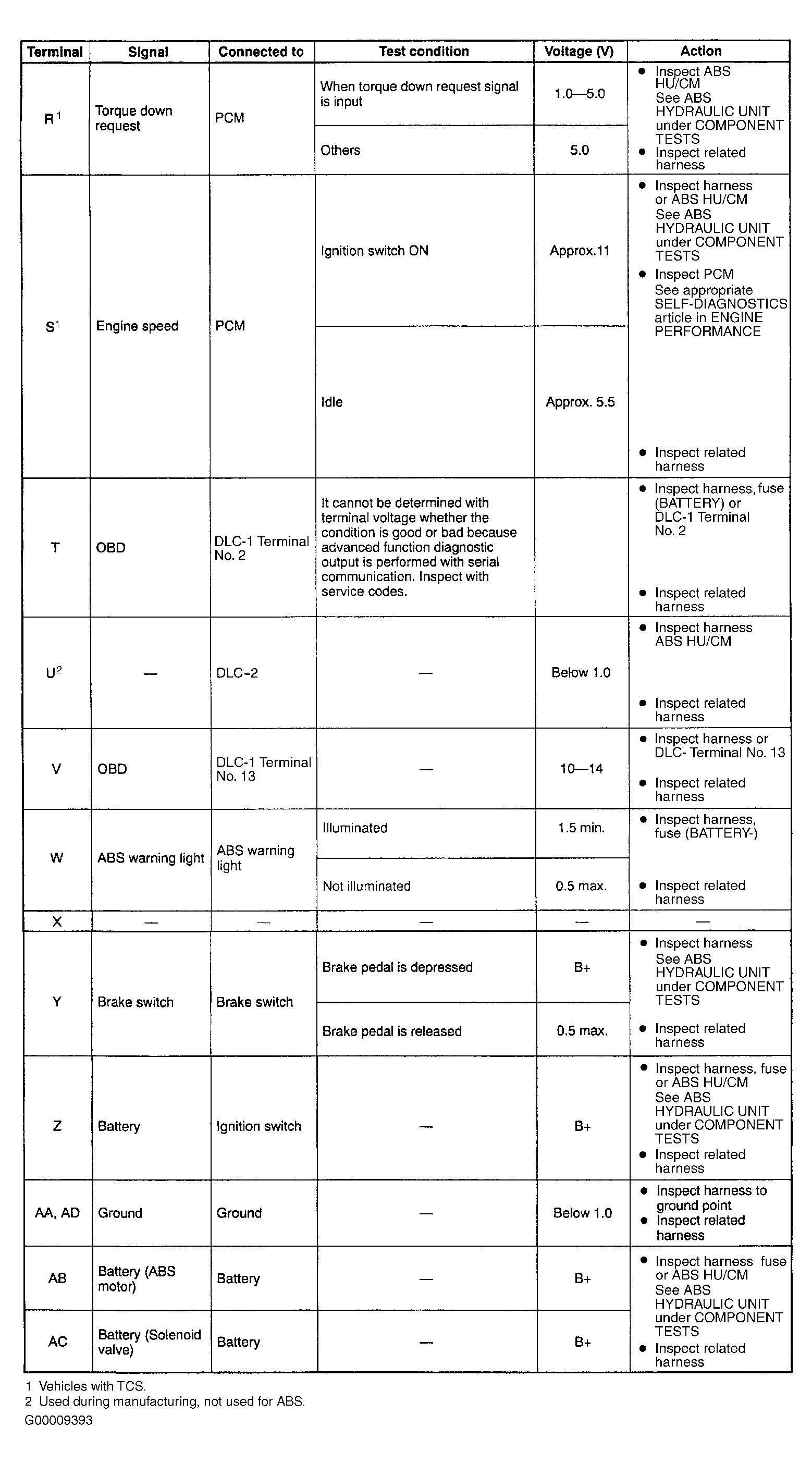

ABS CM is located on left side of engine compartment. Unless indicated otherwise, test with engine operating at idle and ABS CM connector connected. Measure voltage between ground and appropriate ABS CM connector terminal. See Figure -Figure . If voltage is not as specified, check suspect component listed under ACTION. If components are okay, replace ABS CM.
