Disassembly/Assembly

1. Disconnect the negative battery cable.
2. Remove the keyless control module.

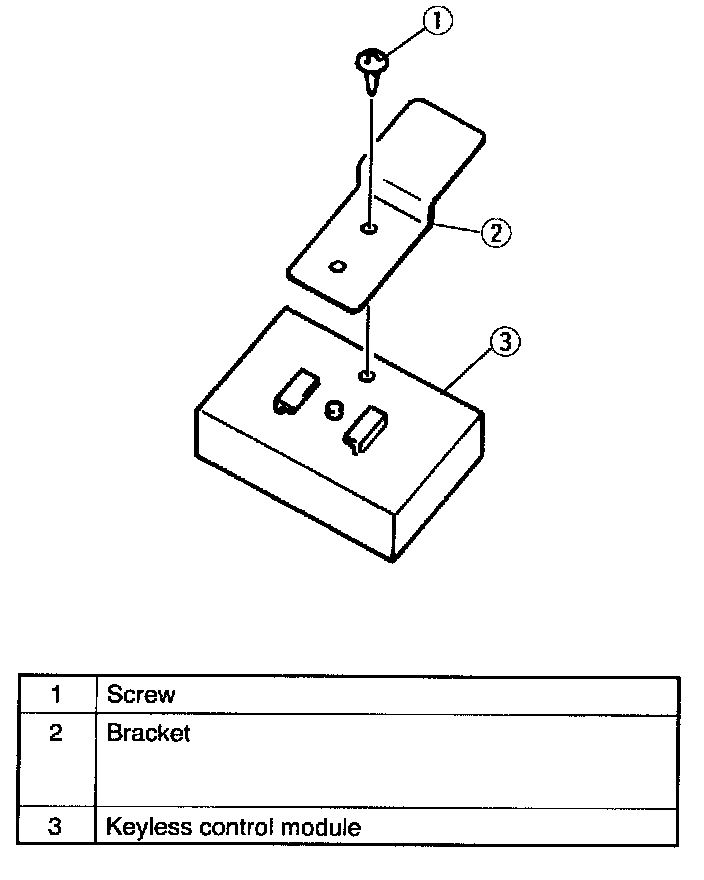

3. Disassemble in the order indicated in the table.
4. Assemble in the reverse order of disassembly.

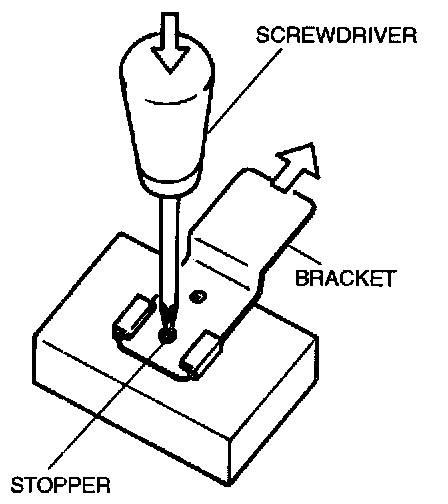

Bracket Disassembly Note
To disassemble the bracket, push the stopper down with a small screwdriver.

Bracket Assembly Note
To Assemble the bracket to the keyless control module until it locks.
