Cruise Control Module: Service and Repair

1. Disconnect the negative battery cable.
2. Remove the passenger-side front side trim.

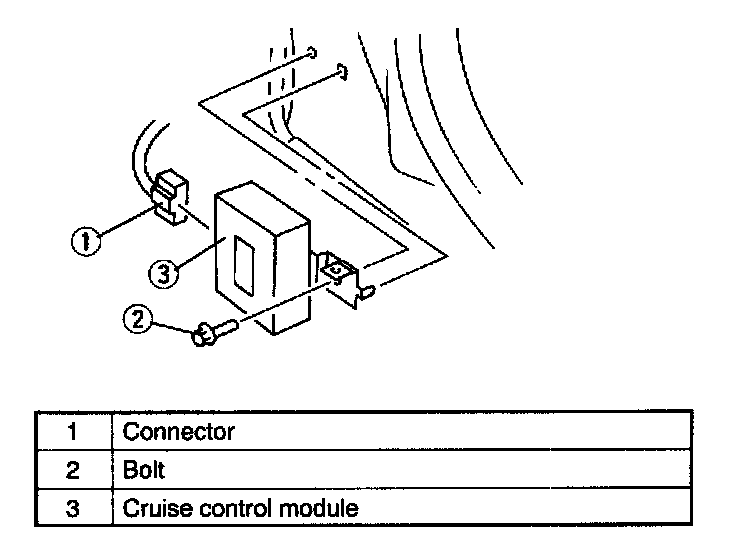

3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
