Cruise Control Module: Testing and Inspection

1. Remove the passenger-side front side trim.
2. Remove the cruise control module without disconnecting the connector.

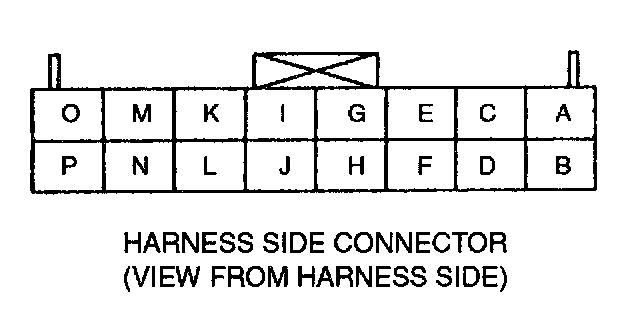

Terminal Voltage List (Reference) - Connector View:

Terminal Voltage List (Reference) - Pinouts (A - C):

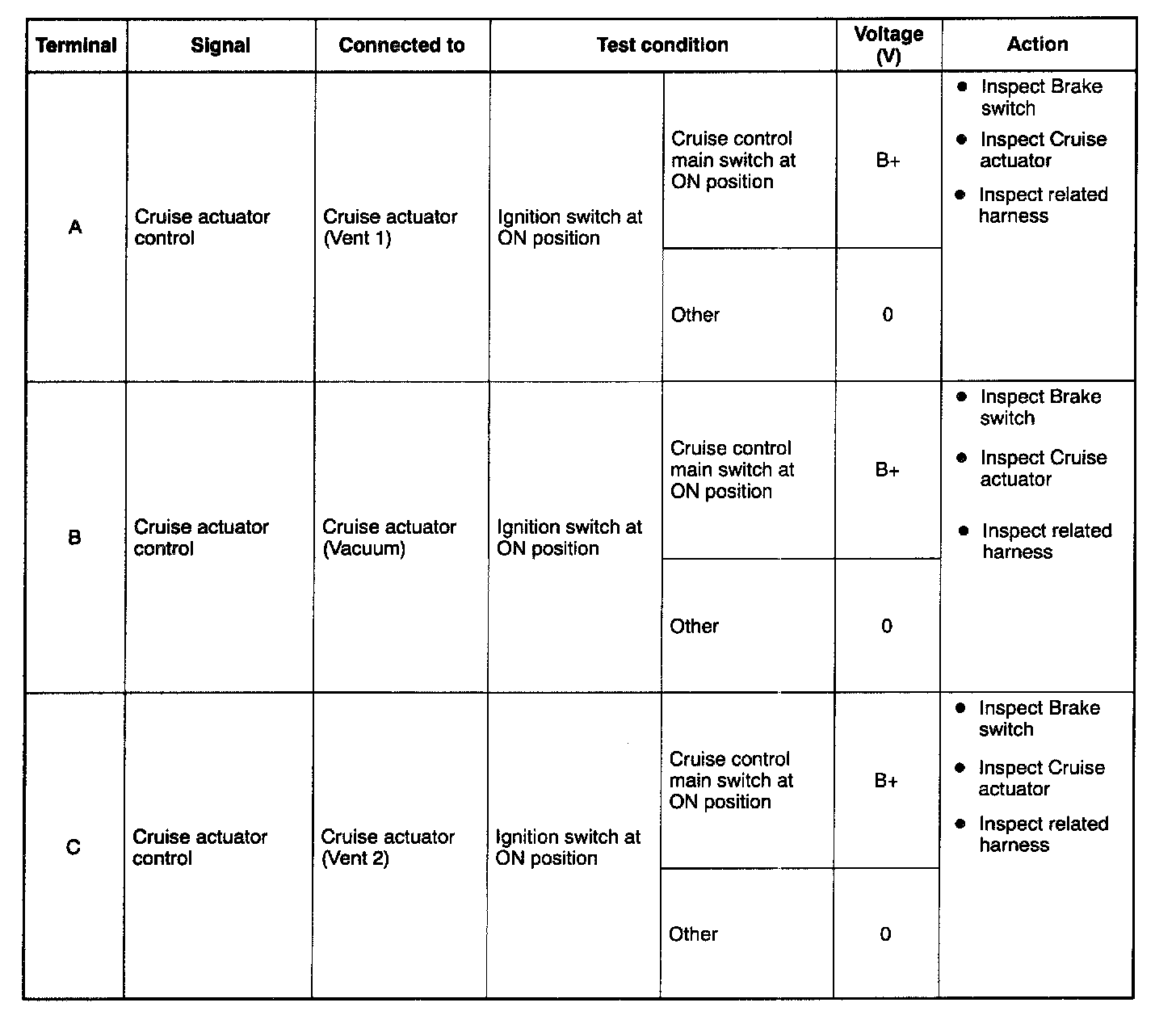

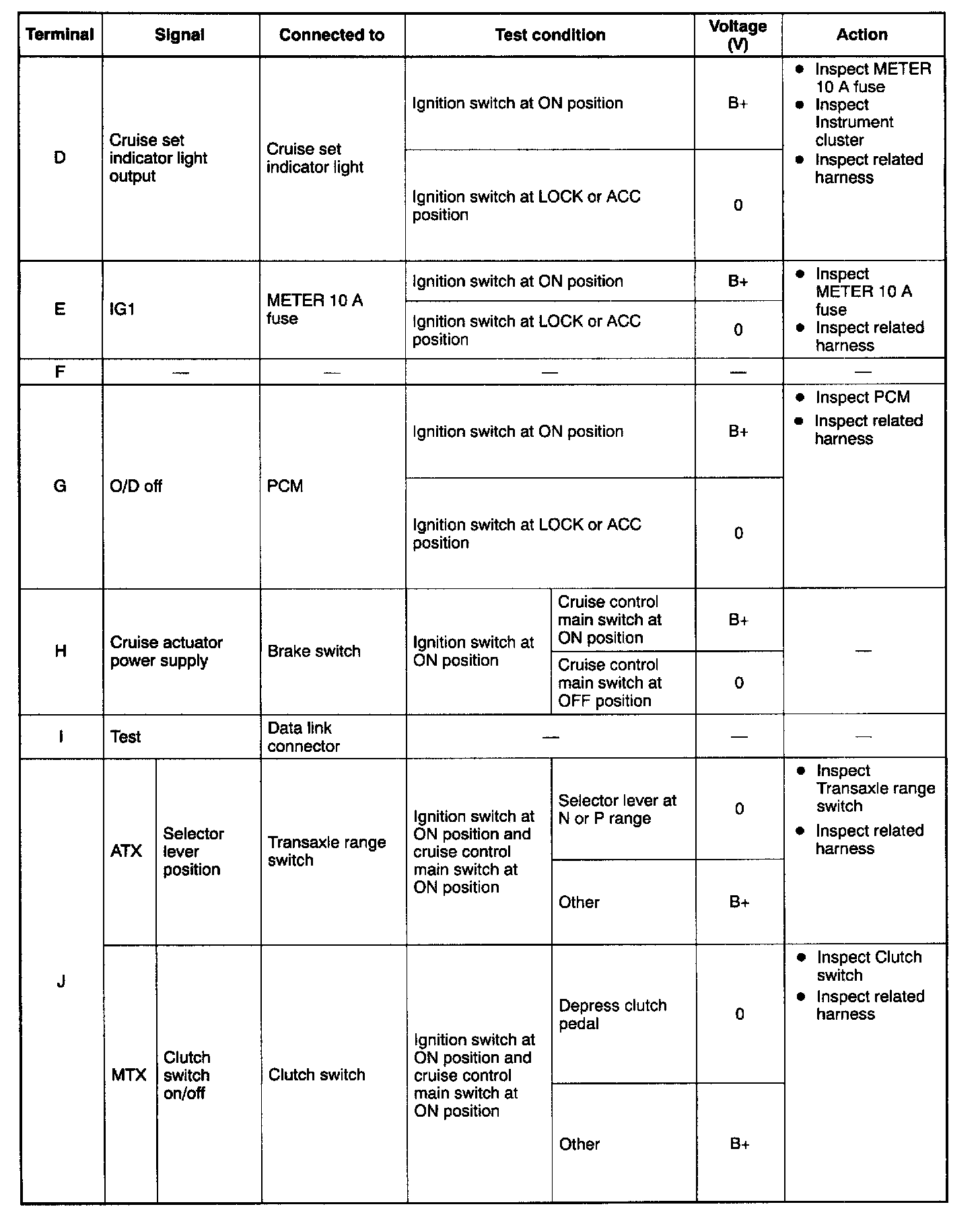

Terminal Voltage List (Reference) - Pinouts (D - J):

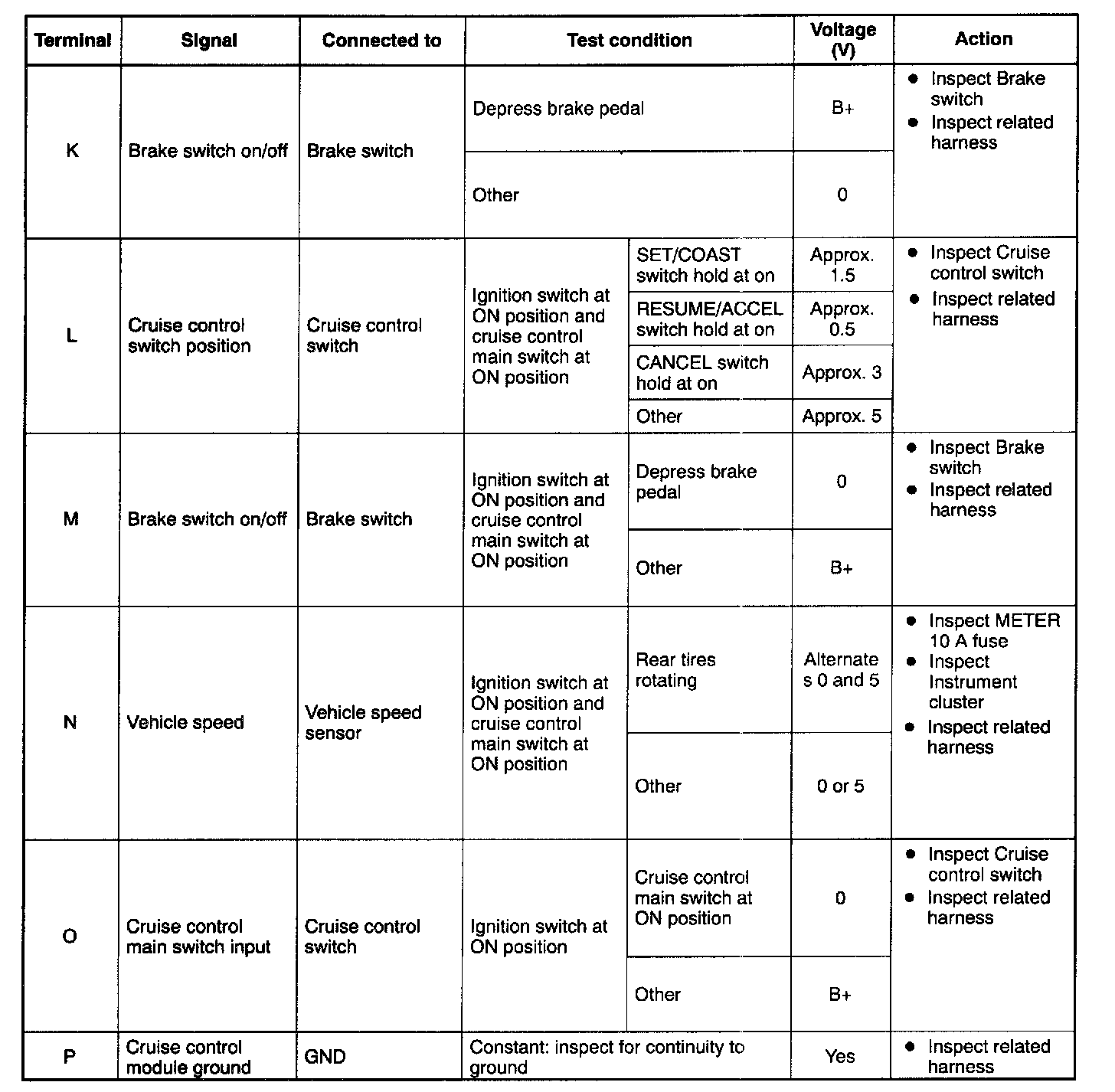

Terminal Voltage List (Reference) - Pinouts (K - P):

3. Measure the voltage at the cruise control module terminals as indicated.
4. Disconnect the cruise control module connector before inspecting for continuity at terminal P.
- If not as specified, inspect the parts listed under "Action" and the related wiring harnesses.
- If the parts and wiring harnesses are okay but the system still does not work properly, replace the cruise control module.
