Disassembly and Assembly

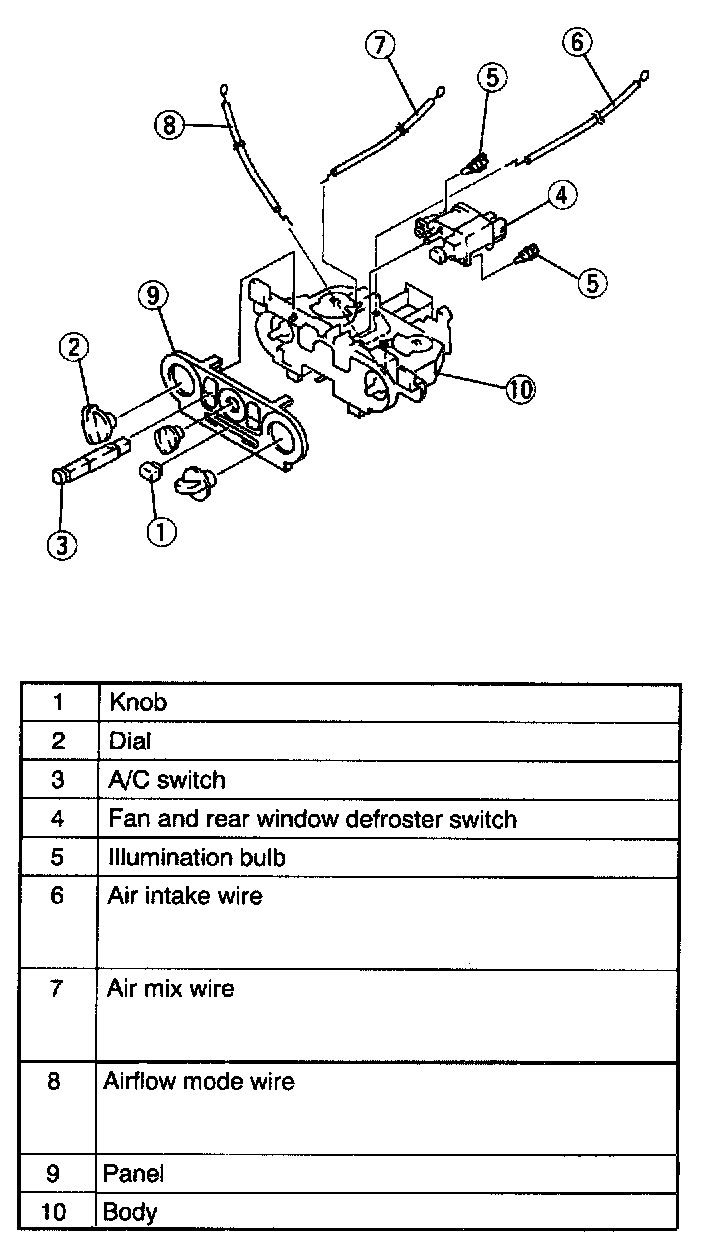

1. Disassemble in the order indicated in the table.
2. Assemble in the reverse order of disassembly.




Wire Disassembly Note
Disassemble the wires in the order indicated in the table.




Wire Assembly Note
Assemble the wires in the order indicated in the table.
