General Engine Specifications

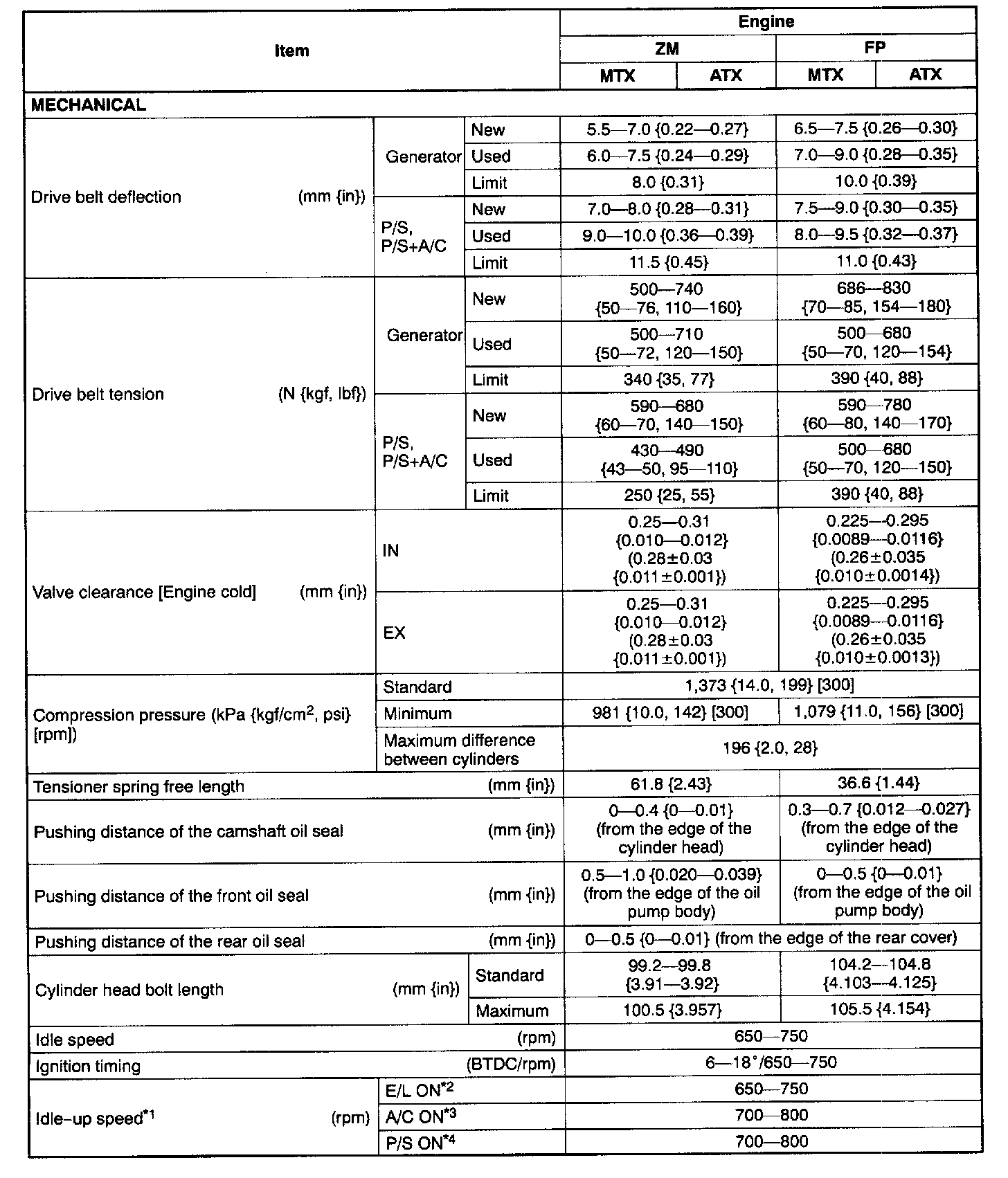

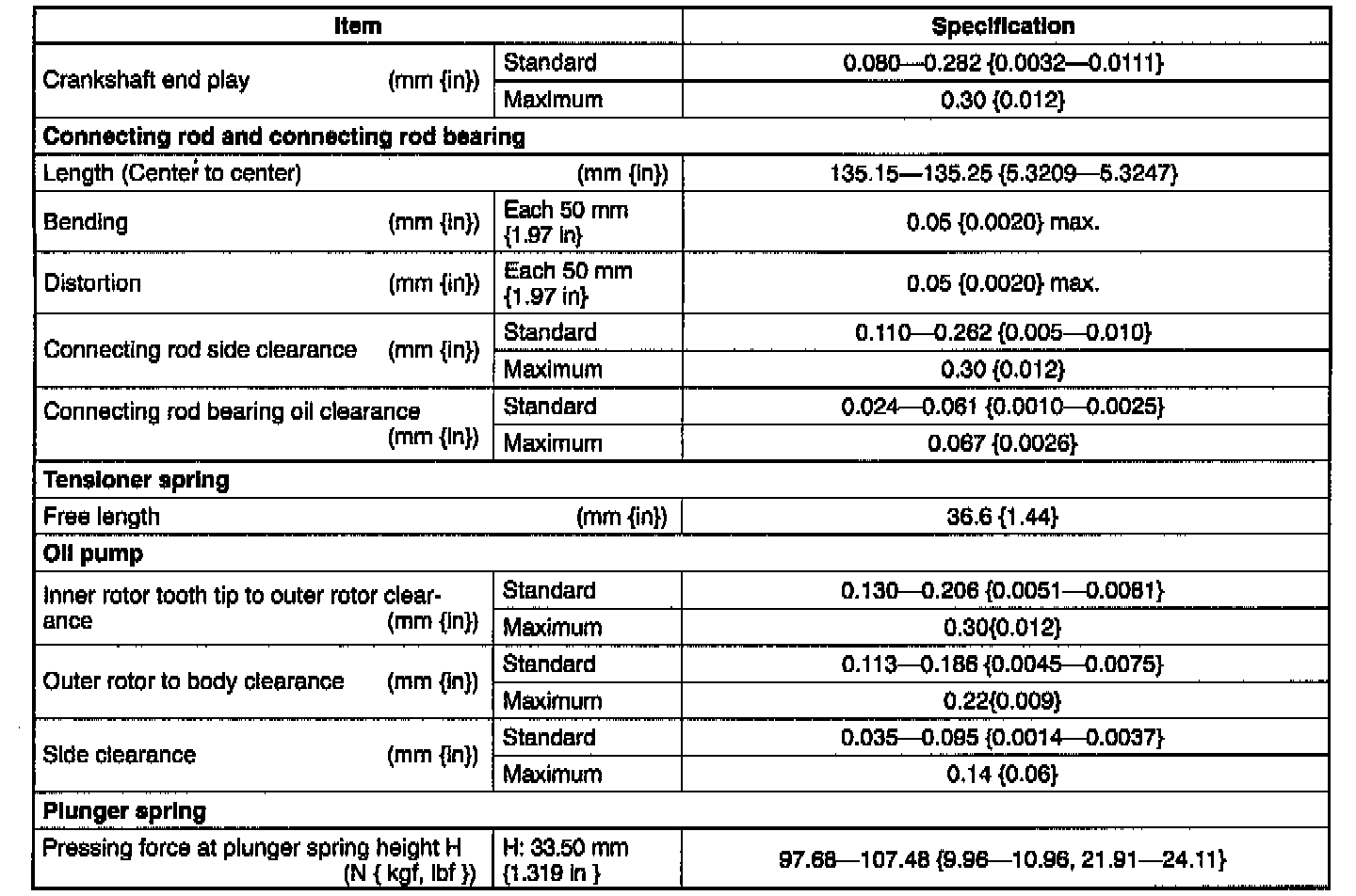

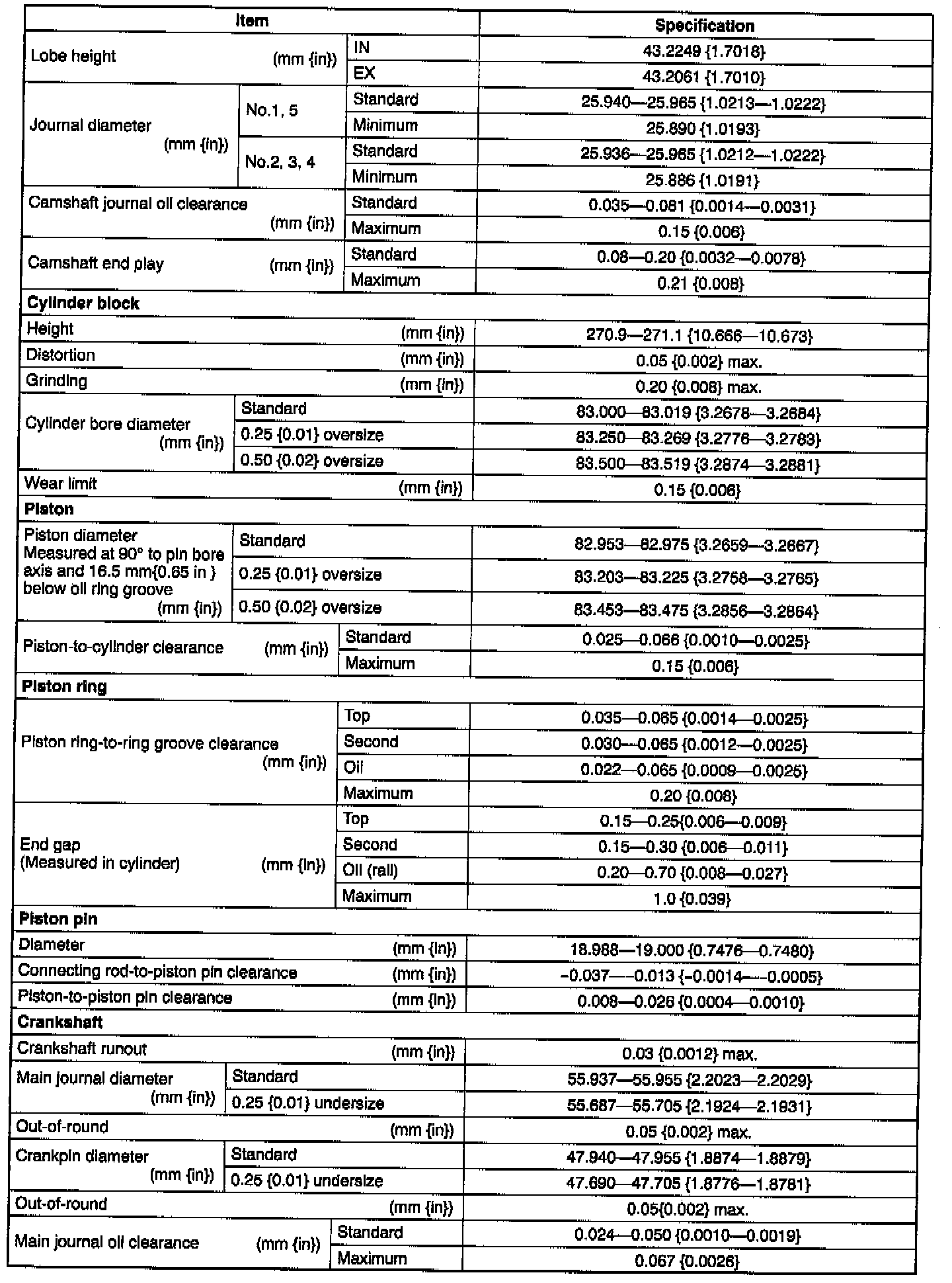

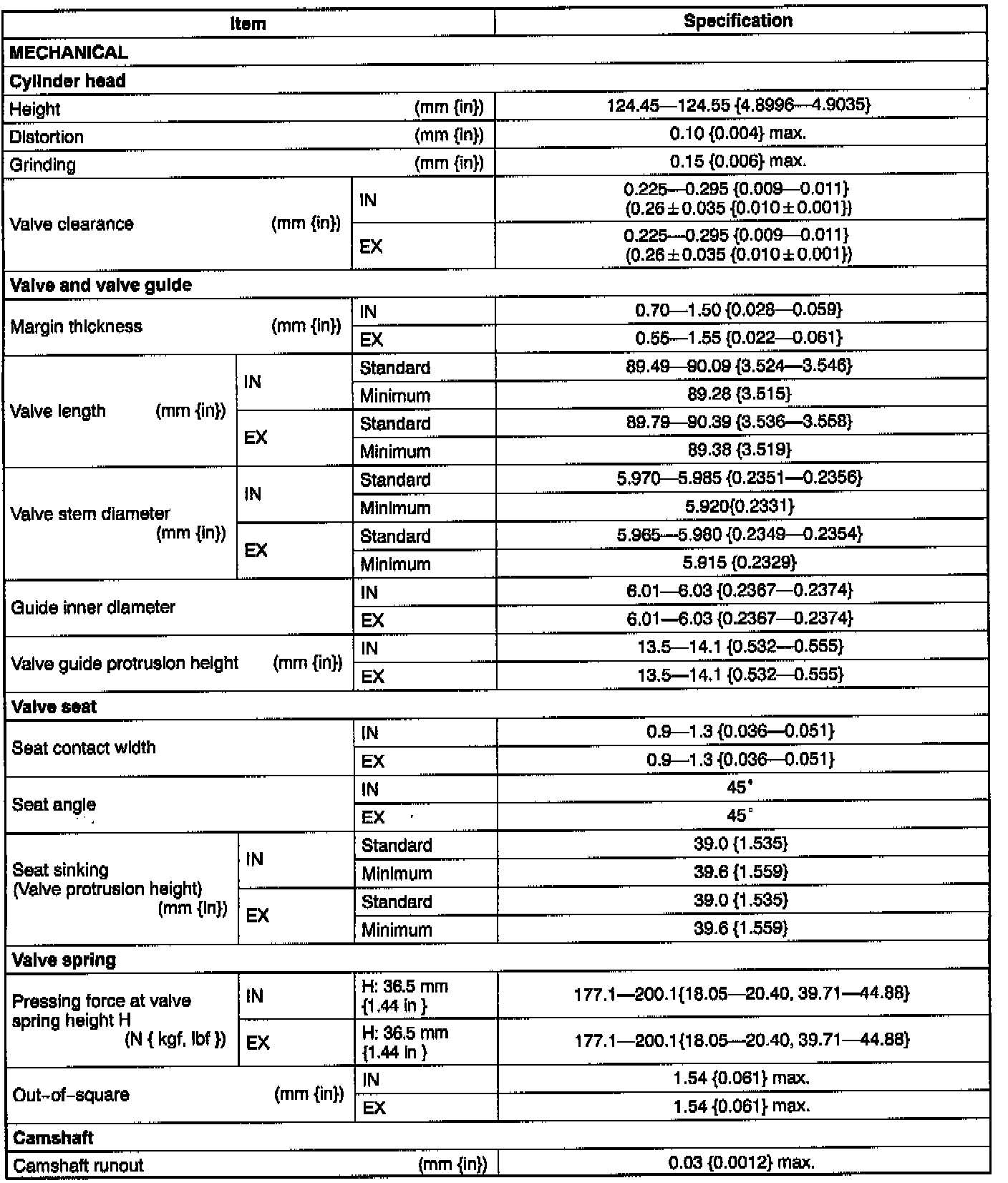

MECHANICAL

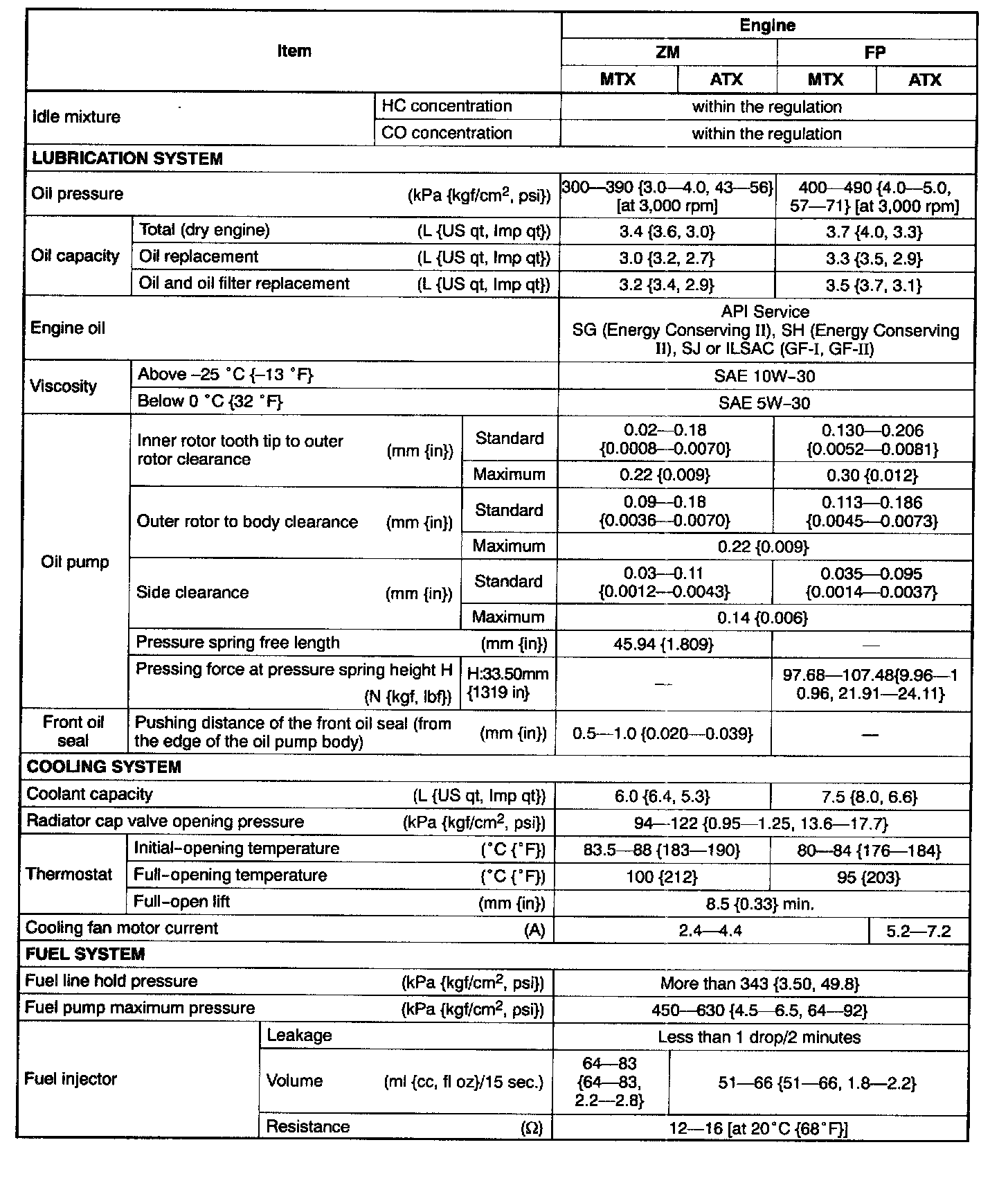

Lubrication System And Cooling System:

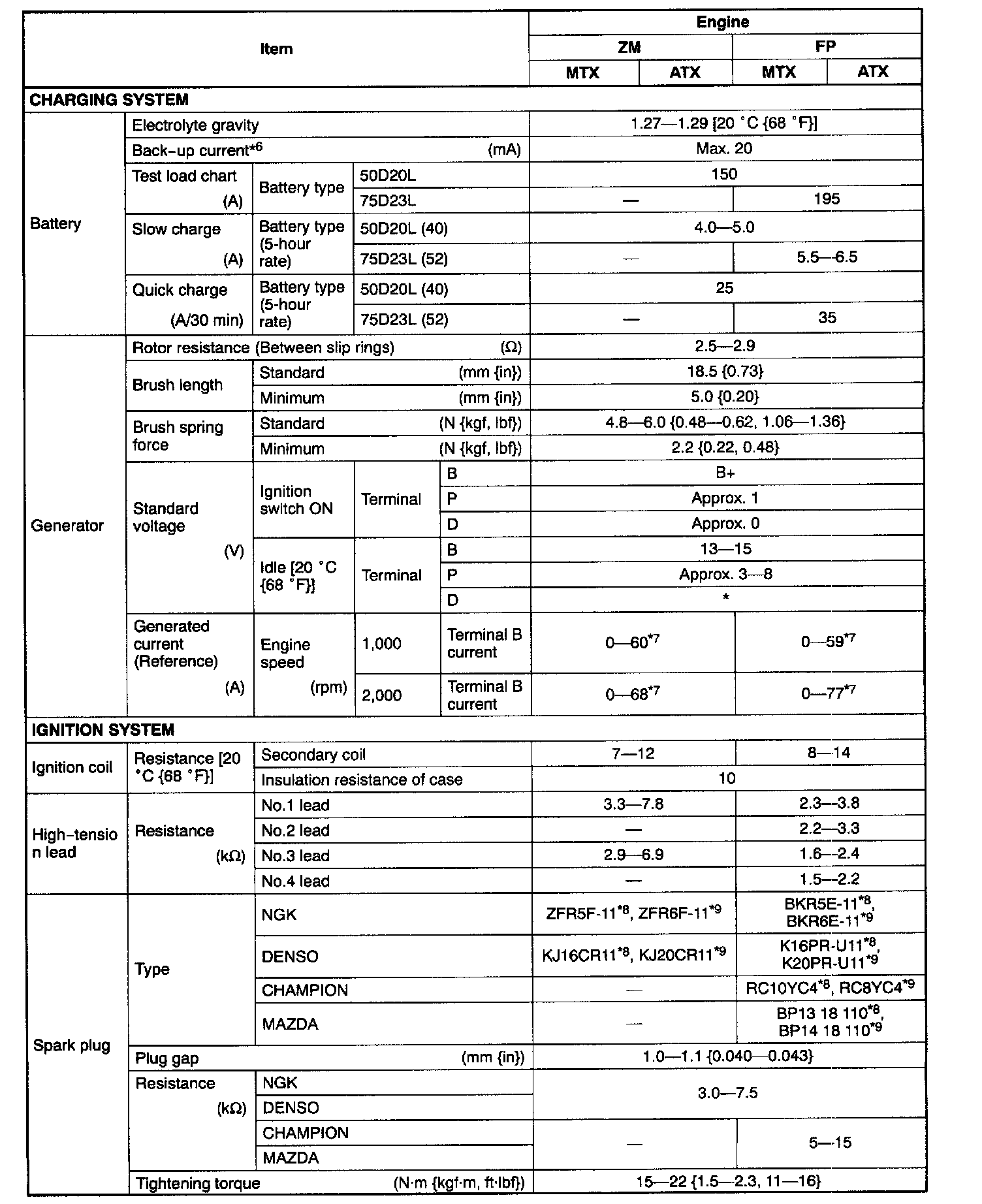

Charging System And Ignition System:

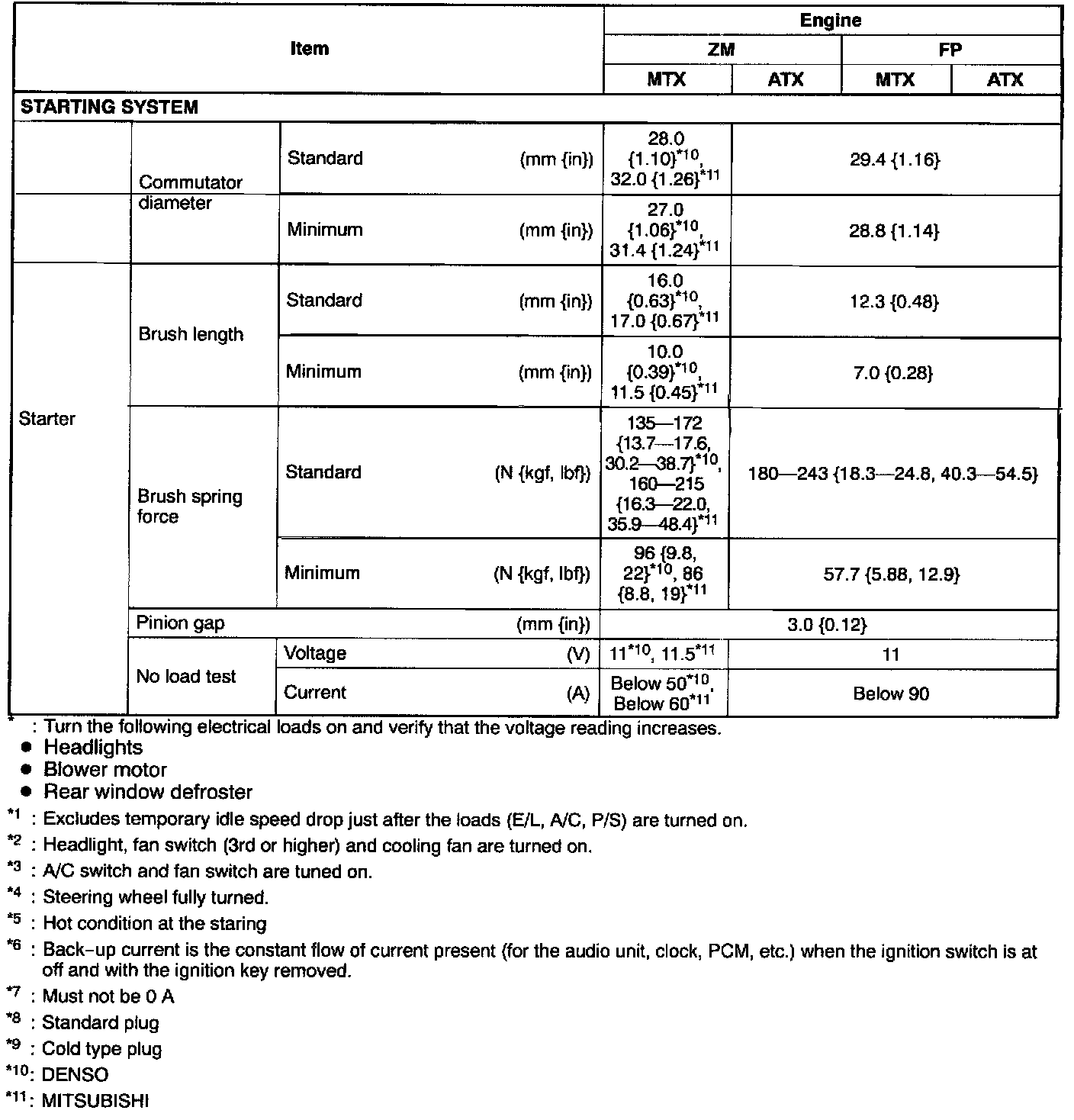

Starting System:
