Air Intake Actuator Inspection

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Connect battery positive voltage to air intake actuator terminal A (or C), and ground to terminal C (or A), and then verify that the air intake actuator operates as shown in Fig 1.
- If the operation condition is not normal, replace the air intake actuator.

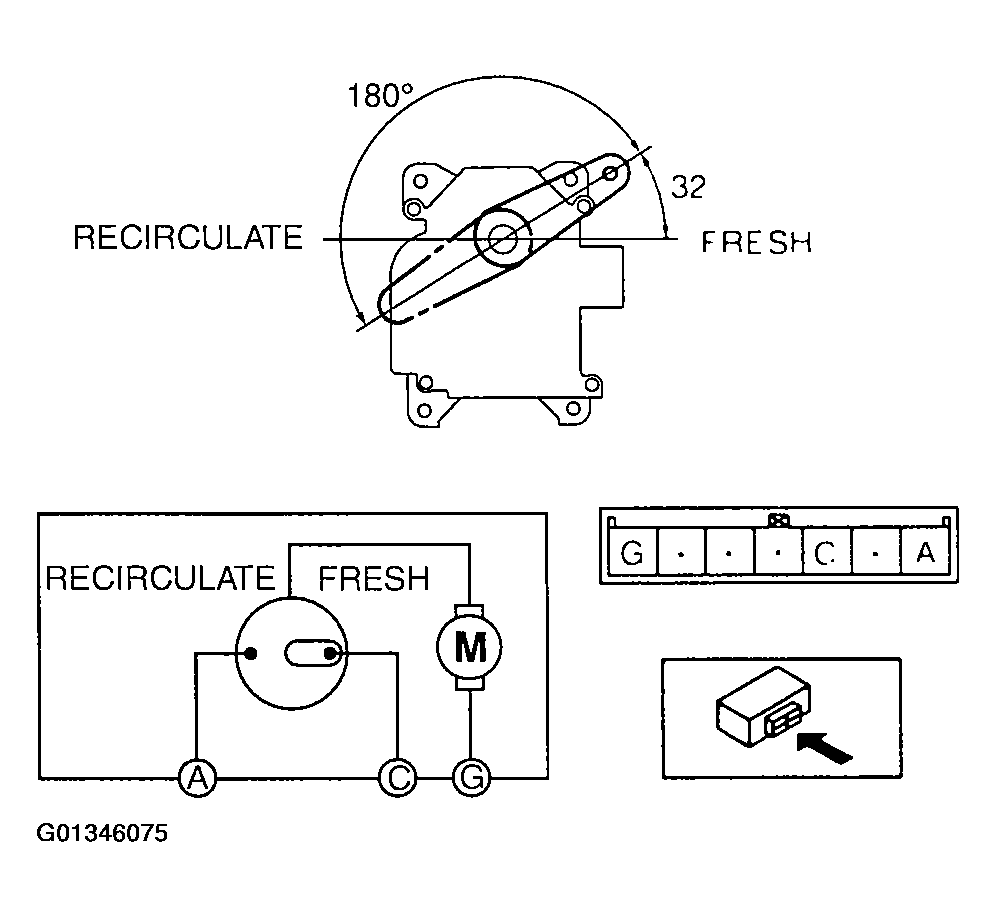

Fig 1: Air Intake Actuator Operation & Terminal Table
Courtesy of MAZDA MOTORS CORP.

Fig 2: Inspecting Air Intake Actuator
Courtesy of MAZDA MOTORS CORP.
