Airflow Mode Actuator Inspection

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Connect battery positive voltage to airflow mode actuator terminal F (or G), and ground to terminal G (or F), and then verify that the airflow mode actuator operates as shown in Fig 1.
- If the operation condition is not normal, replace the airflow mode actuator.

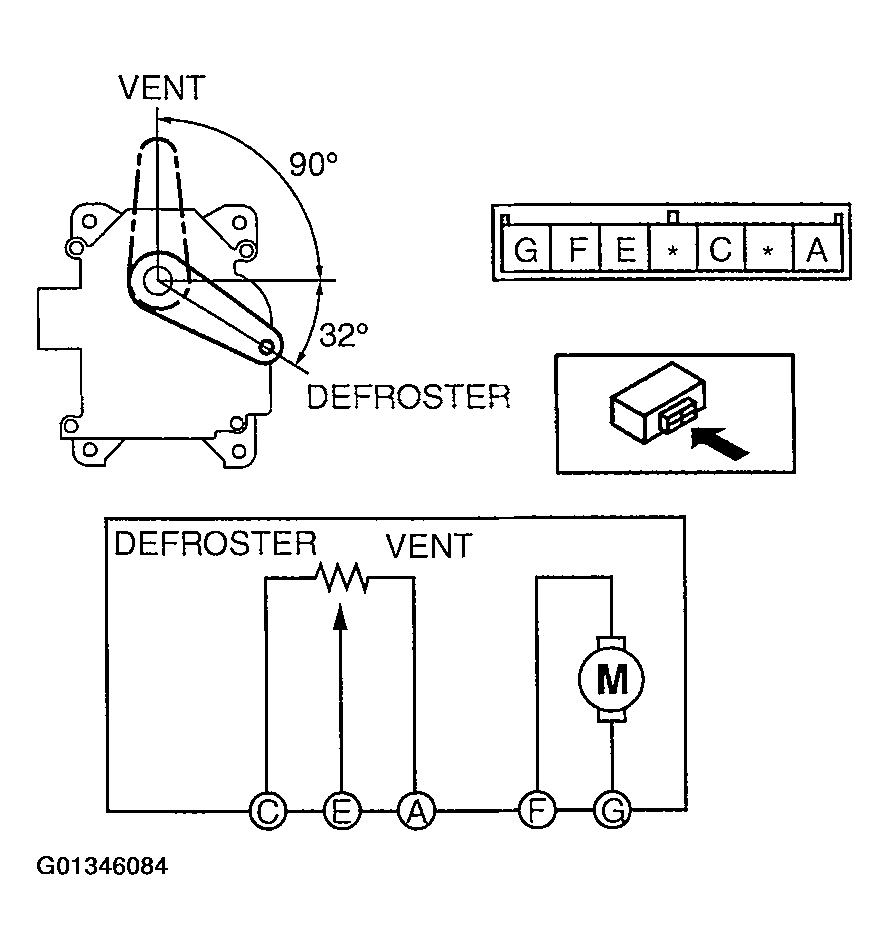

Fig 1: Airflow Mode Actuator Operation & Terminal Table
Courtesy of MAZDA MOTORS CORP.
Verify that the resistance between terminals A and E, and C and E matches the airflow mode actuator operation as shown in the graph.

Fig 2: Inspecting Airflow Mode Actuator
Courtesy of MAZDA MOTORS CORP.

Fig 3: Airflow Mode Actuator Resistance Graph
Courtesy of MAZDA MOTORS CORP.
- If the operation condition and resistance are not normal, replace the airflow mode actuator.
