Main Relay Operation Inspection

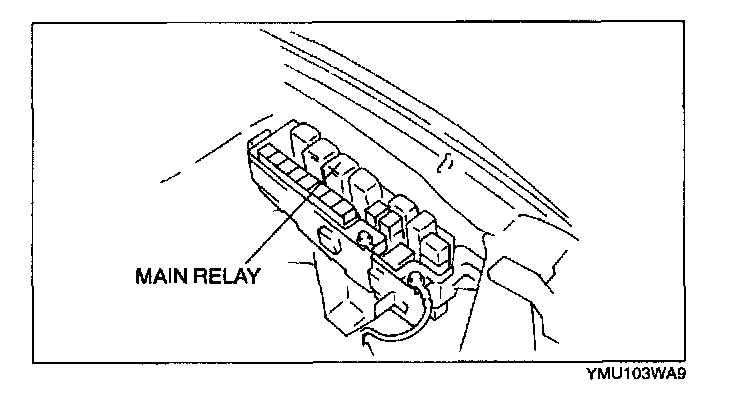

1. Verify that the main relay clicks when the ignition key is turned to ON and OFF.
- If there is no operation sound, inspect the following.
- Main relay
- Harness and connector between ignition switch and main relay.
