Cruise Control Module

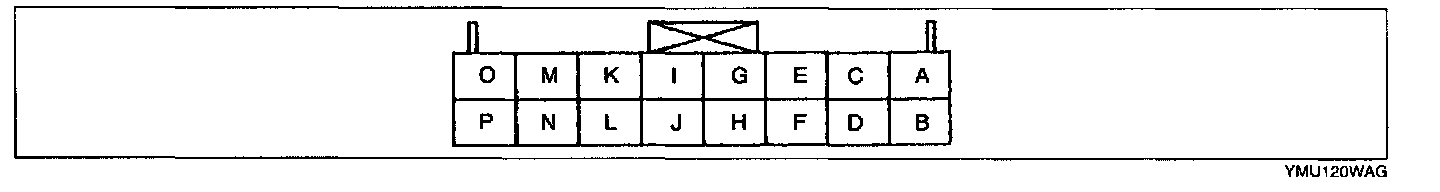

Terminal Pinout
Terminal Pinout:

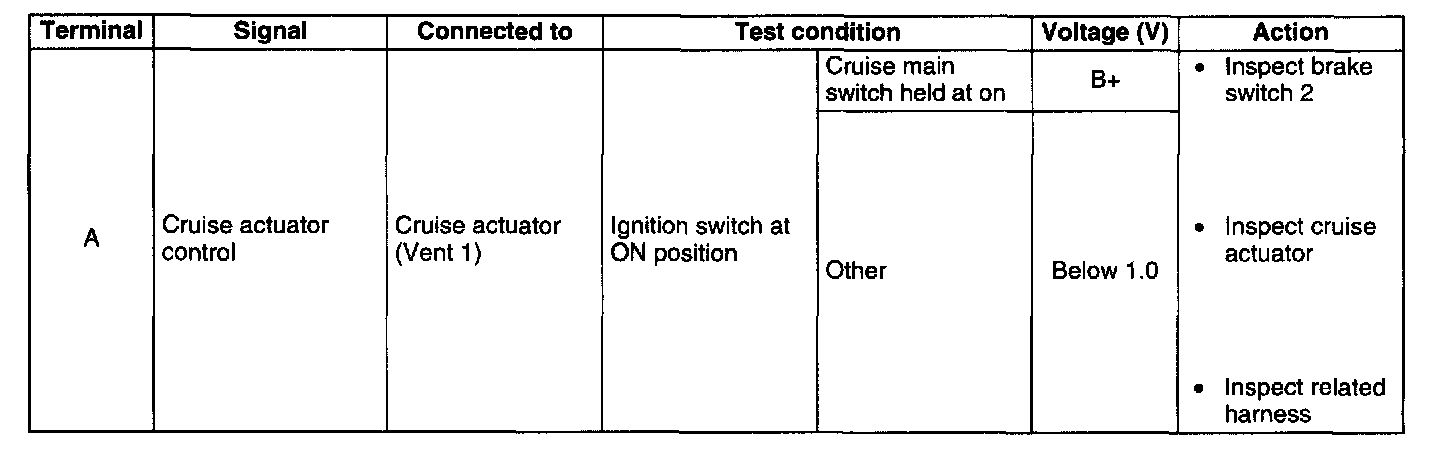

Terminal A
Terminal A:

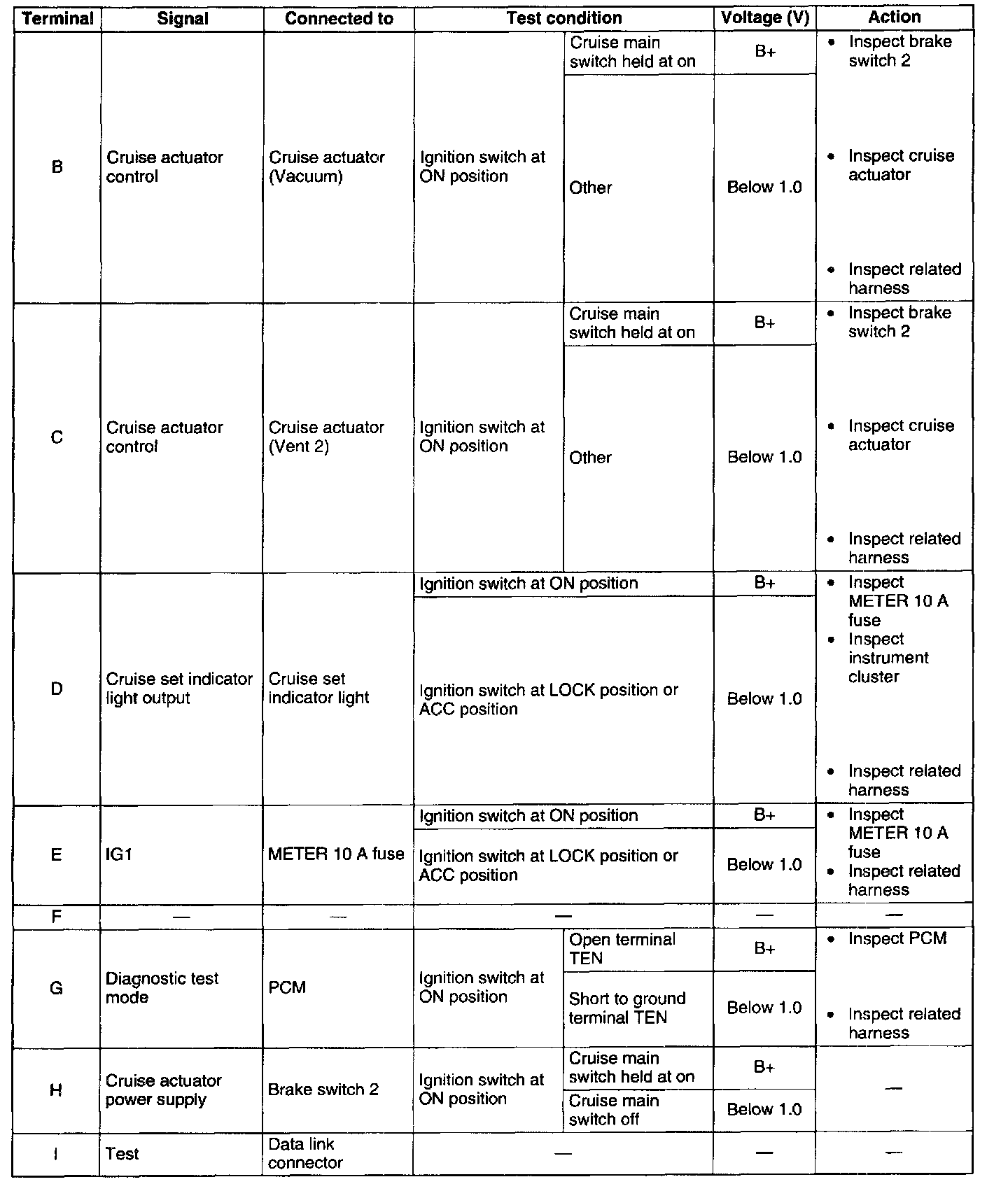

Terminal B - I
Terminal B - I:

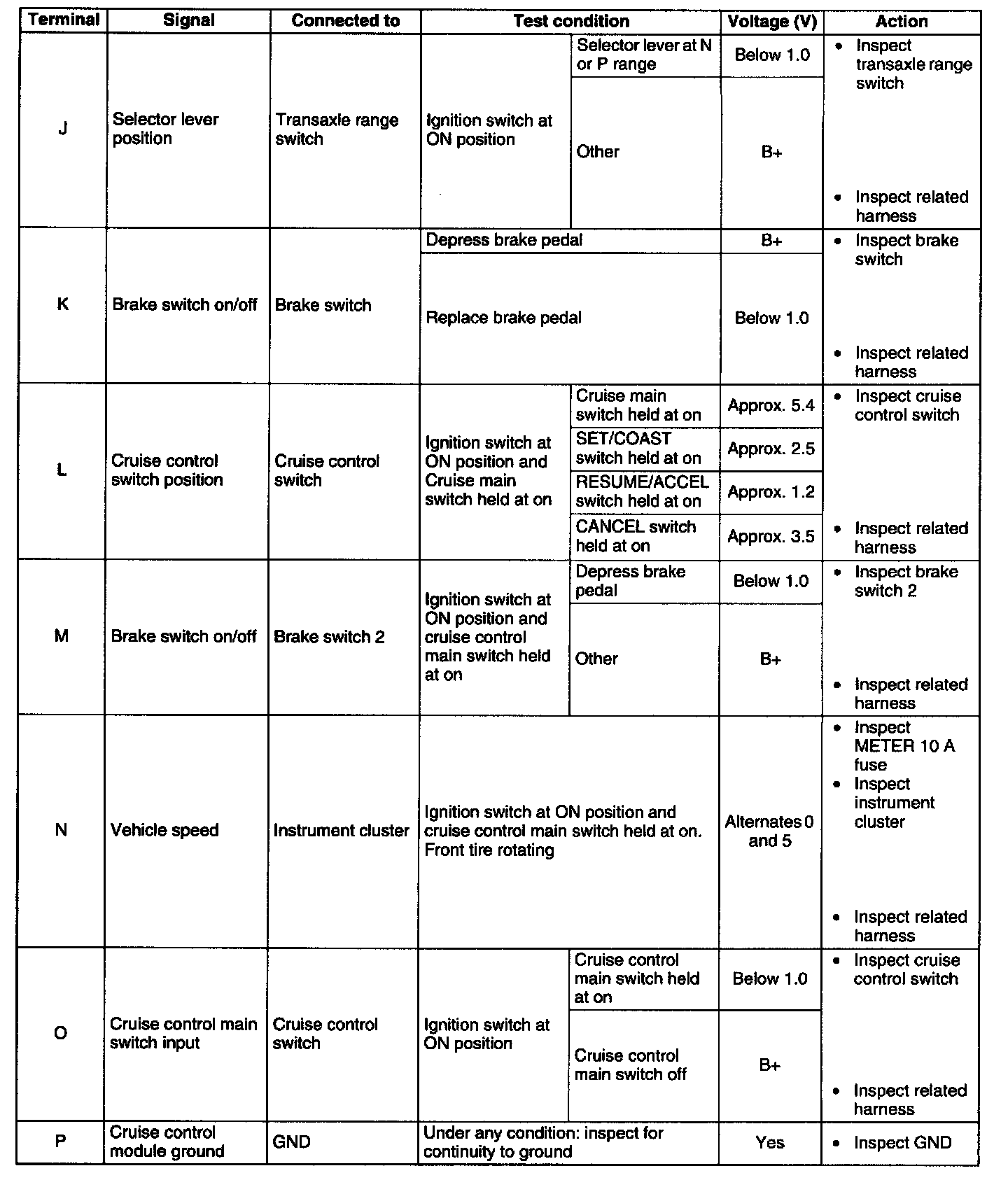

Terminal J - P
Terminal J - P:
