Front Tilt Motor Removal/Installation: Notes

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Operate the power seat switch and move the seat back to the full-upright position.
Disconnect the negative battery cable.
Remove the driver's side front seat. (See FRONT SEAT REMOVAL/INSTALLATION )
Remove the front cover (No. 1, No. 2) and side cover. (See FRONT SEAT DISASSEMBLY/ASSEMBLY )
Remove the seat cushion. (See FRONT SEAT DISASSEMBLY/ASSEMBLY )
Remove in the order indicated in the table

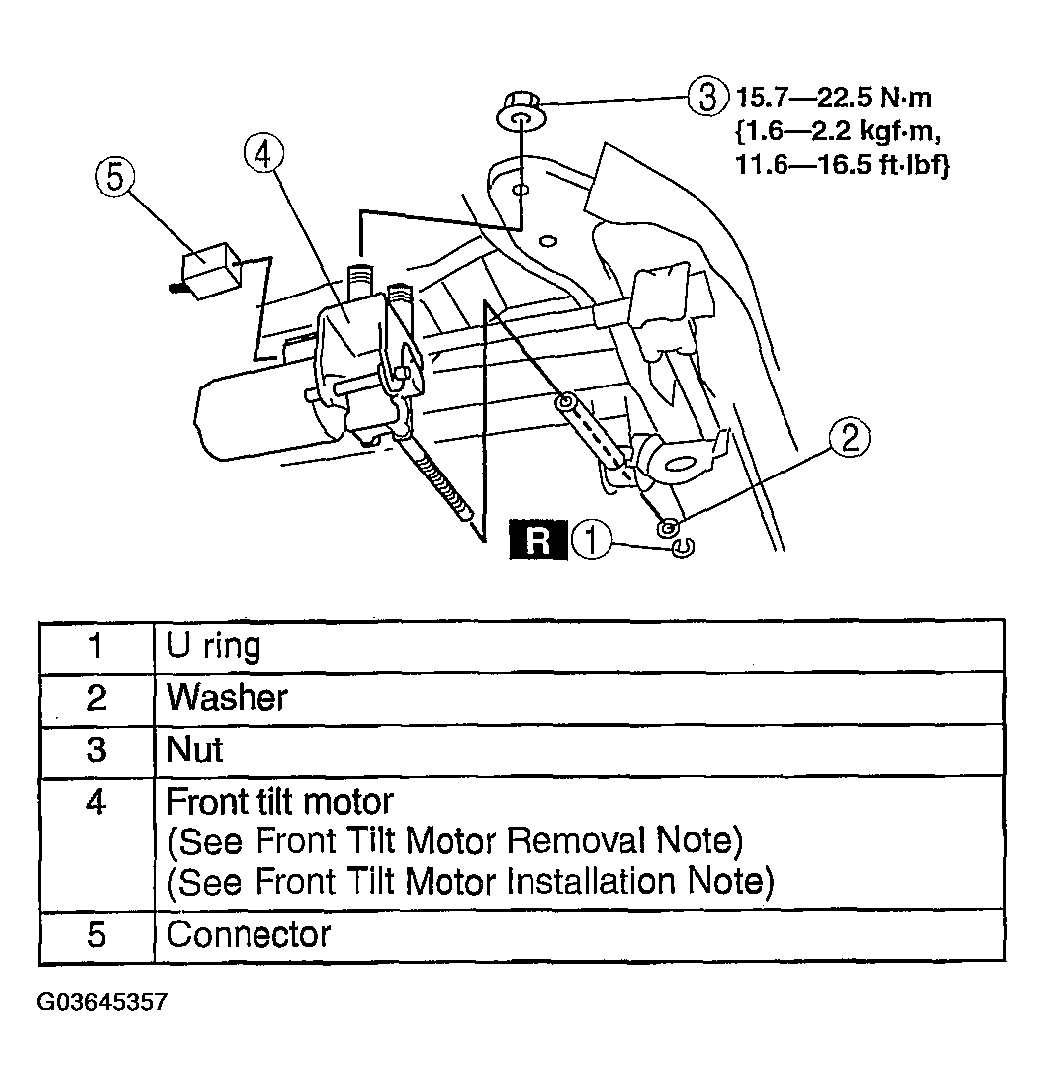

Fig 1: Front Tilt Motor Removal Sequence (Torque Specs)
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
