Installation (Millenia)

Install key interlock solenoid and tighten screws to 61-112 INCH lbs. (6.9-12.7 N.m). Connect key interlock solenoid connector. Install instrument cluster. Connect the negative battery cable.

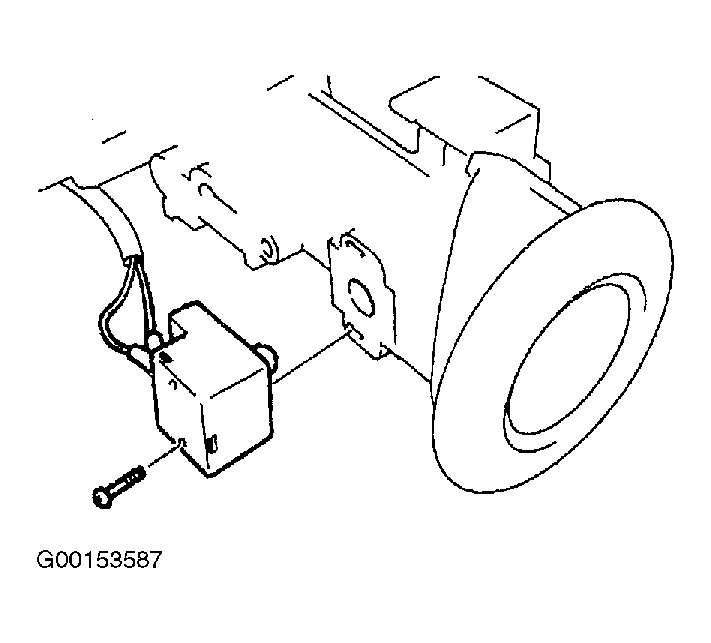

Fig 1: Removing Key Interlock Solenoid (Millenia)
G00153587Courtesy of MAZDA MOTORS CORP.
