Windshield Removal: Notes

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the following parts:
    1. Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
    2. Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION .)
    3. Rearview mirror (See REARVIEW MIRROR REMOVAL/INSTALLATION  .)
    4. A-pillar trim (See A-PILLAR TRIM REMOVAL/INSTALLATION .)
    5. Sunvisor (See SUNVISOR REMOVAL/INSTALLATION .)
    6. Map light (See MAP LIGHT REMOVAL/INSTALLATION .)
  2. Set the headliner out of the way.
  3. Apply protective tape along the edge of the body.
  4. Apply protective tape to the dashboard to protect it from damage.
  5. Cut the windshield molding lip using a razor.

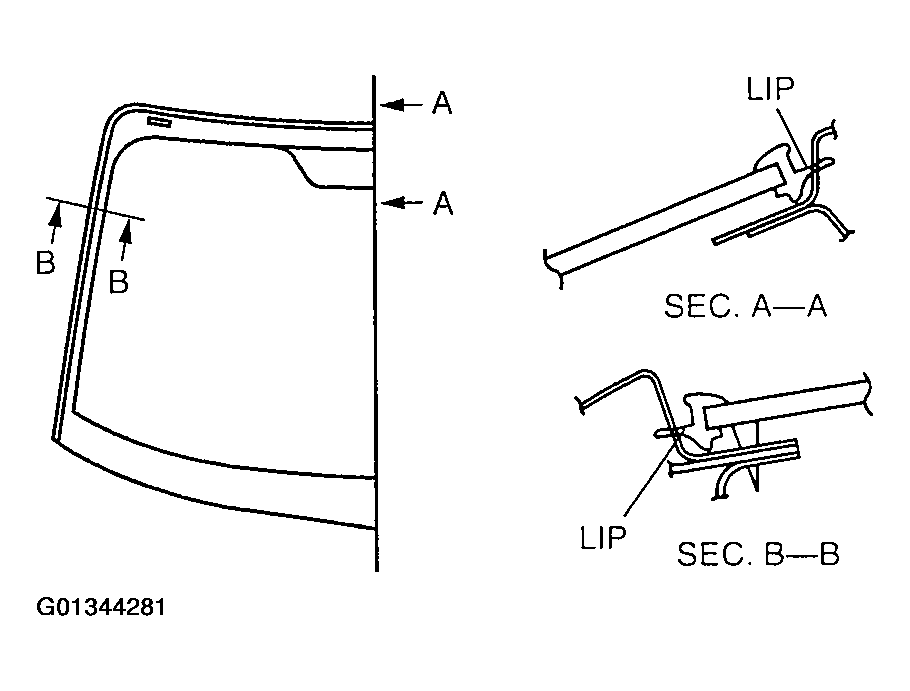

    Fig 1: Identifying Windshield Molding Lip
    G01344281Courtesy of MAZDA MOTORS CORP.
WARNING:
  • Using a razor with bare hands can cause injury. Always wear gloves when using a razor.
NOTE:
  • The windshield molding is a replacement part.
